Description

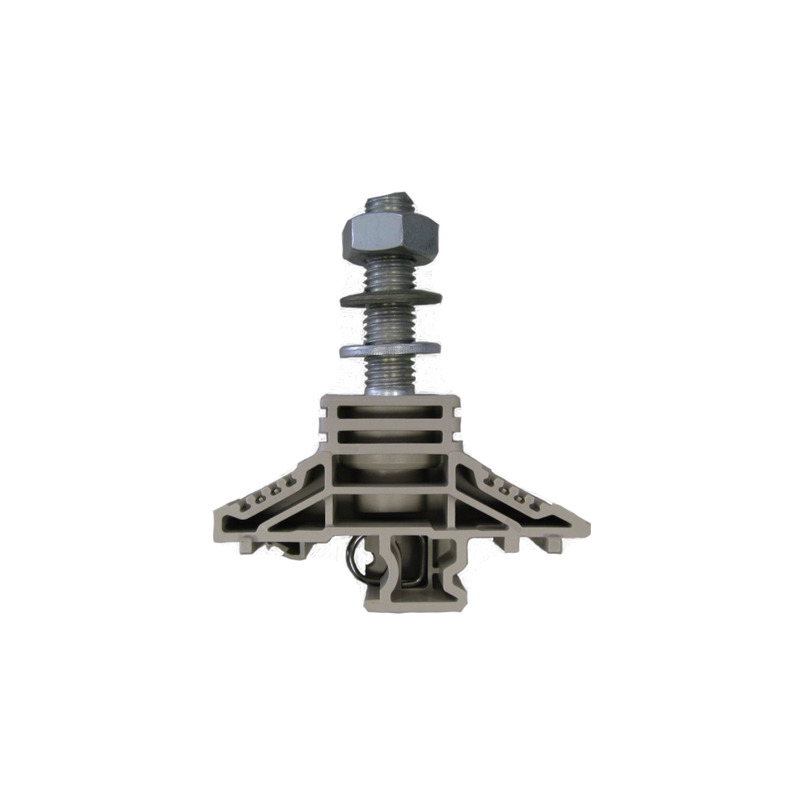

Bolt-type screw terminals, Feed-through terminal, Rated cross-section: 120 mm², Threaded stud connectionWF 10/32
Weidmuller 1319070000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Additional Technical Data
- Type of mounting
- Snap-on
Approvals
- Approvals
- EAC
- ROHS
- Conform
Classifications
- eClass 10.0
- 27-14-11-20
- eClass 9.0
- 27-14-11-20
- eClass 9.1
- 27-14-11-20
- ETIM 6.0
- EC000897
- ETIM 7.0
- EC000897
Conductors For Clamping (Rated Connection)
- 2 x cable lugs DIN 46 234
- 6 to 120 mm²
- 2 x cable lugs DIN 46 235
- 10...95 mm²
- Cable lug to DIN 46234
- 6...120 mm²
- Cable lug to DIN 46235
- 10...95 mm²
- Clamping range, max.
- 120 mm²
- Clamping range, min.
- 6 mm²
- Number of connections
- 1
- Stud size for spade connection
- M 10
- Tightening torque, max.
- 20 Nm
- Tightening torque, min.
- 10 Nm
- Type of connection
- Threaded stud connection
Dimensions And Weights
- Depth
- 79 mm
- Depth (inches)
- 3.11 inch
- Height
- 67 mm
- Height (inches)
- 2.638 inch
- Net weight
- 88.6 g
- Width
- 32 mm
- Width (inches)
- 1.26 inch
Material Data
- Colour
- dark beige
- Material
- Wemid
- UL 94 flammability rating
- V-0
Rating Data
- Current at maximum wires
- 269 A
- Impulse voltage with epoxy resin partition plate
- 12 kV
- Pollution severity
- 3
- Power loss in accordance with IEC 60947-7-x
- 8.61 W
- Rated cross-section
- 120 mm²
- Rated current
- 269 A
- Rated impulse withstand voltage
- 8 kV
- Rated voltage
- 1,000 V
- Voltage with epoxy resin partition plate
- 2,300 V
- Volume resistance according to IEC 60947-7-x
- 0.12 mΩ
Safety Note
- Safety notice
- Safety Information
Stud Connection
- 2 x cable lugs DIN 46 234
- 6 to 120 mm²
- 2 x cable lugs DIN 46 235
- 10...95 mm²
- Cable lug to DIN 46234
- 6...120 mm²
- Cable lug to DIN 46235
- 10...95 mm²
- Impulse voltage with epoxy resin partition plate
- 12 kV
- Stud size for spade connection
- M 10
- Tightening torque, max.
- 20 Nm
- Tightening torque, min.
- 10 Nm
- Voltage with epoxy resin partition plate
- 2,300 V
System Specifications
- Levels cross-connected internally
- No
- Number of clamping points per level
- 1
- Number of levels
- 1
- PE connection
- No
- Rail
- TS 32
- Version
- Single-stud terminals
Temperatures
- Continuous operating temp., max.
- 120 °C
- Continuous operating temp., min.
- -50 °C
- Storage temperature
- 10 °C...40 °C
- Storage temperature, max.
- 40 °C
- Storage temperature, min.
- 10 °C
