Description

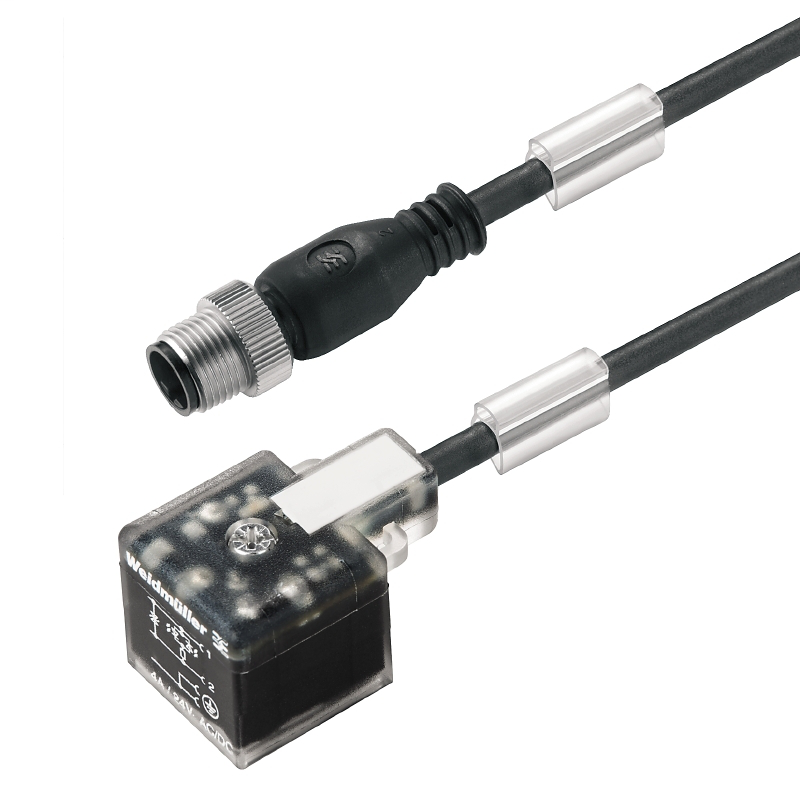

, Straight plug - valve plugSAIL-VSA-DS-M12G-1.5U
Weidmuller 1316550150 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Approvals
- Approvals
- EAC
- ROHS
- Conform
Classifications
- eClass 10.0
- 27-06-03-12
- eClass 9.0
- 27-06-03-12
- eClass 9.1
- 27-06-03-11
- ETIM 6.0
- EC001855
- ETIM 7.0
- EC001855
Dimensions And Weights
- Net weight
- 90 g
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
General Technical Data
- Coding
- Design A (18 mm), M12 = A
- Housing main material
- TPU
- LED
- Yes
- Plugging cycles
- ≥ 100
- Pollution severity
- 3
- Protection degree
- IP67, when screwed in
- Rated current
- 4 A
- Rated voltage
- 24 V
- Temperature range of housing
- -25…+80 °C
- Version
- Straight plug - valve plug
Technical Specifications For Cable
- Acceleration
- 5 m/s²
- Bending radius, min., moving
- 10 x cable diameter
- Bending radius, min., stationary
- 5 x cable diameter
- Cable length
- 1.5 m
- Colour coding
- blue, brown, Green/yellow, black, white
- Core cross-section
- 0.34 mm²
- Halogen
- No
- Number of poles
- 4 (3 + PE)
- Resistant to welding beads
- No
- Sheath material
- PUR
- Shielded
- No
- Speed
- 200 m/min
- Suitable for cable carriers
- Yes
- Temperature range, moving
- -30...90 °C
- Temperature range, stationary
- -40...90 °C
