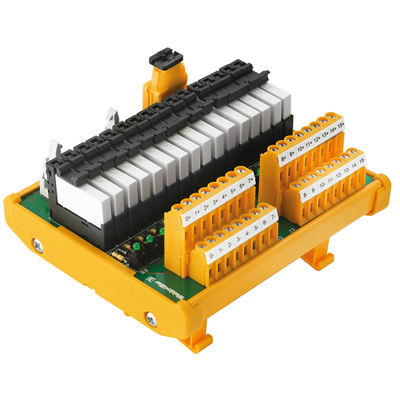

Weidmuller 1312010000

Approvals

• Approvals
  • CE
• ROHS
  • Conform

Classifications

• eClass 10.0
  • 27-14-11-52
• eClass 9.0
  • 27-14-11-52
• eClass 9.1
  • 27-24-22-16
• ETIM 6.0
  • EC002780
• ETIM 7.0
  • EC002780

Connection Data

• Connection on control side
  • Plug-in connector in acc. with IEC60603-13 / DIN41651
• Number of poles (control side)
  • 20-pole plug
• Wiring system
  • 1-wire

Connection Field

• Clamping range, max.
  • 2.5 mm²
• Clamping range, min.
  • 0.13 mm²
• Type of connection
  • Tension-clamp connection

Dimensions And Weights

• Height
  • 72 mm
• Height (inches)
  • 2.835 inch
• Length
  • 124 mm
• Length (inches)
  • 4.882 inch
• Net weight
  • 343.24 g
• Width
  • 109 mm
• Width (inches)
  • 4.291 inch

General Data

• LED status display per relay
  • green
• LED status of the supply voltage
  • yellow
• Power supply fuse
  • 2 A

Insulation Coordinates (En50178)

• Clearance input/output
  • ≥ 6 mm
• Insulation test voltage
  • 0.35 kVAC
• Overvoltage category input/input
  • III
• Overvoltage category input/output
  • III
• Pollution severity level
  • 2
• Pulse voltage test (1,2/50μs)
  • 1.5 kV
• Rated input insulation voltage
  • ≤ 50 V DC
• Rated output insulation voltage
  • ≤ 50 V DC

Rating Data

• Mechanical service life
  • 5 x 106 switching cycles

Ratings Data Input

• Input current
  • 13 mA
• Input voltage
  • 24 V DC ± 10%

Ratings Data Output

• Contact material
  • AgNi gold flashed
• Max. DC continuous current
  • 0.1 A
• Minimum contact current
  • 1 mA
• Minimum contact voltage
  • 1 V
• Rated voltage (text)
  • 24 V DC ± 10%
• Relay type
  • RSS

Supply Connection

• Clamping range, max.
  • 2.5 mm²
• Clamping range, min.
  • 0.13 mm²
• Type of connection
  • Tension-clamp connection

Temperatures

• Operating temperature
  • -20...50 °C
• Operating temperature, max.
  • 50 °C
• Operating temperature, min.
  • -20 °C
• Storage temperature
  • -20...70 °C
• Storage temperature, max.
  • 70 °C
• Storage temperature, min.
  • -20 °C
