Weidmuller 1309940100
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

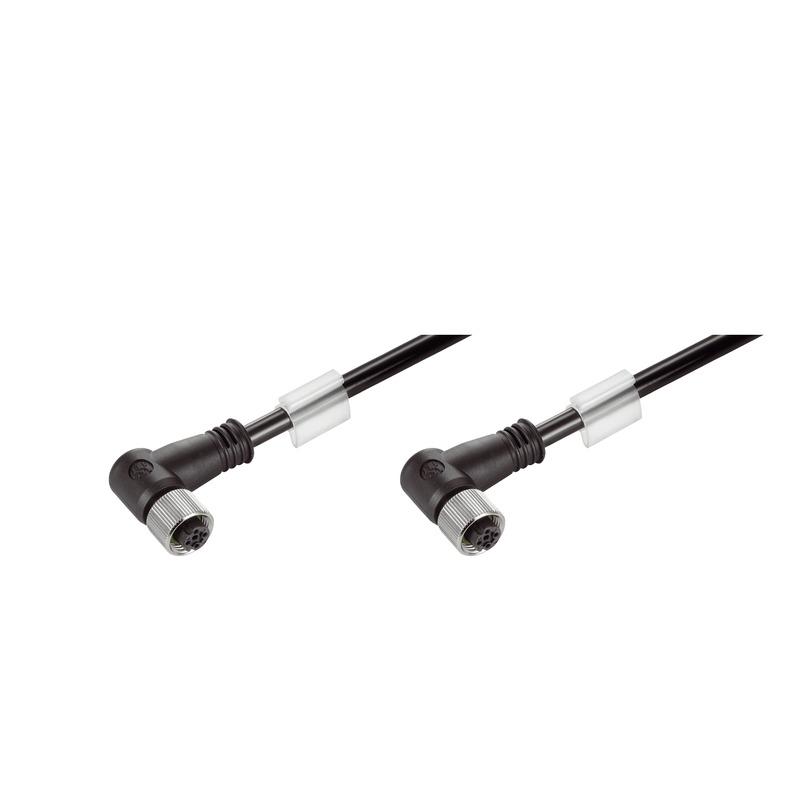

System cable, M12 D-code – IP 67 angled socket, M12 D-code – IP 67 angled socket, Cat.5 / Class D, Cross-linked Premium FRNC, 10 mIE-C5DB4FE0100MSAMSA-E
Weidmuller 1309940100 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Approvals
- ROHS
- Conform
Cable Structure
- Arrangement of wire cores
- Star-quad
- Cross-section
- 4xAWG22/19
- Material sheath
- Cross-linked Premium FRNC
- Number of wires
- 4
- Sheath diameter, max.
- 7 mm
- Sheath diameter, min.
- 6.4 mm
- Sheathing colour
- black
Classifications
- eClass 10.0
- 27-06-03-08
- eClass 9.0
- 27-06-03-08
- eClass 9.1
- 27-06-03-08
- ETIM 6.0
- EC002599
- ETIM 7.0
- EC002599
Dimensions And Weights
- Length
- 10 m
- Length (inches)
- 0.394 inch
- Net weight
- 692 g
Electrical Properties
- Operating voltage
- 300 V
Electrical Properties Of Cable
- Category
- Cat.5 / Class D
- Characteristic impedance
- 100 ± 15 Ω at 1–100 MHz
- Operating voltage
- 300 V
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Mechanical And Material Properties Of Cable
- Corrosiveness of fumes
- to IEC 60754-2
- Halogen
- No
- Impervious to smoke
- in accordance with EN 50268-2, According to IEC 61034-2
- Min. bending radius, once only
- 5 x cable diameter
- Min. bending radius, repetitive
- 10 x cable diameter
Plug
- Connector left
- M12 D-code – IP 67 angled socket
- Connector right
- M12 D-code – IP 67 angled socket
Standards
- Corrosiveness of fumes
- to IEC 60754-2
- Fire safety for railway vehicles
- According to DIN 5510-2 fire safety levels 1,2,3,4
- Fluorine content
- According to EN 60684-2 Section 45.2
- Hydrogen halide content
- According to IEC 60754-1, According to EN-50267-2-1
- Impervious to smoke
- in accordance with EN 50268-2, According to IEC 61034-2
- Poisonous gases
- According to BS 6853 Appendix B
Temperatures
- Installation temperature
- -5 °C...50 °C
- Operating temperature
- -40 °C...90 °C
- Operating temperature, max.
- 90 °C
- Operating temperature, min.
- -40 °C
- Storage temperature
- -40 °C...90 °C
- Storage temperature, max.
- 90 °C
- Storage temperature, min.
- -40 °C
