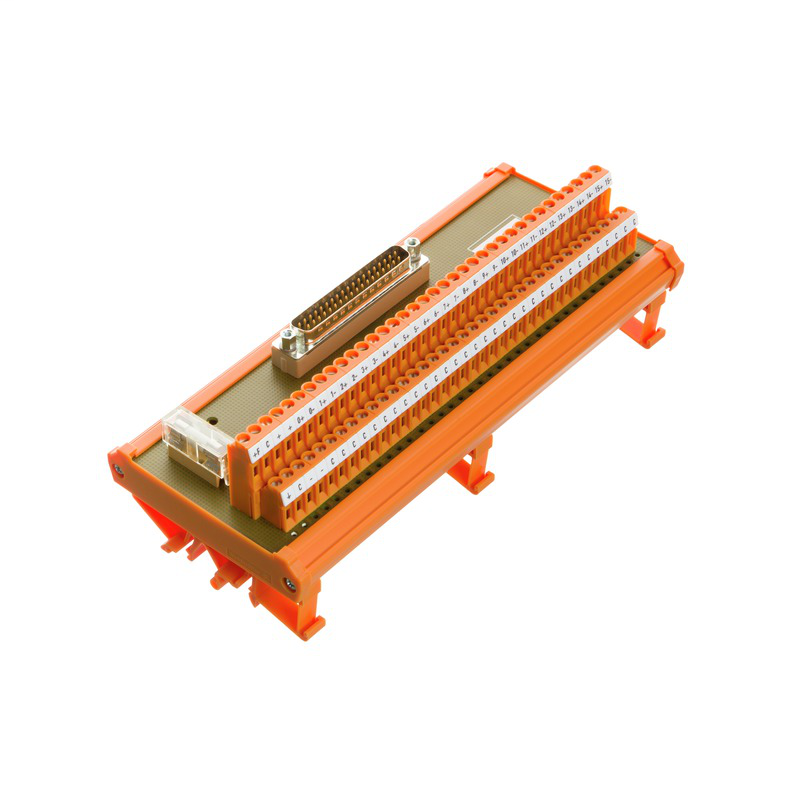

Weidmuller 1308270000
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Interface, RS, 2-wire, Tension-clamp connectionRS 16AIO DP SD Z
Weidmuller 1308270000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Approvals
- Approvals
- CE, EAC
- ROHS
- Conform
Classifications
- eClass 10.0
- 27-14-11-52
- eClass 9.0
- 27-14-11-52
- eClass 9.1
- 27-14-11-52
- ETIM 6.0
- EC002780
- ETIM 7.0
- EC002780
- UNSPSC
- 30-21-18-01
Connection Data
- Connection (field side)
- LMNZF 5.08mm
- Connection on control side
- D-sub connectors, acc. to IEC 60807 / DIN 41652
- Connection supply
- LMNZF 5.08mm
- Number of poles (control side)
- 37-pole plug
- Protective earth connection
- Shielding in SUB-D plug-in connector
- Wiring system
- 2-wire
Connection Field
- Clamping range, max.
- 2.5 mm²
- Clamping range, min.
- 0.13 mm²
- Flexible, max. H05(07) V-K
- 4 mm²
- Flexible, min. H05(07) V-K
- 0.5 mm²
- Flexible with sleeve, max.
- 2.5 mm²
- Flexible with sleeve, min.
- 0.5 mm²
- Max. wire cross-section, AWG
- AWG 12
- Min. wire cross-section, AWG
- AWG 26
- Sleeve with plastic collar, max.
- 2.5 mm²
- Solid, max. H05(07) V-U
- 6 mm²
- Solid, min. H05(07) V-U
- 0.5 mm²
- Stripping length
- 6 mm
- Tightening torque, max.
- 0.6 Nm
- Tightening torque, min.
- 0.5 Nm
- Type of connection
- Tension-clamp connection
Dimensions And Weights
- Height
- 72 mm
- Height (inches)
- 2.835 inch
- Length
- 205 mm
- Length (inches)
- 8.071 inch
- Net weight
- 351 g
- Width
- 87 mm
- Width (inches)
- 3.425 inch
General Data
- Common pole polarity
- Positive or negative can be selected using jumper
- Current-measuring testpoint
- No
- Disconnection per channel
- No
- LED status display per channel
- No
- LED status of the supply voltage
- No
- Power supply fuse
- 3.15 A
- Type of test point
- No
- Voltage point of measurement
- No
Insulation Coordination (En50178)
- According to
- DIN EN 50178
- Insulation test voltage
- 0.35 kVAC
- Pollution severity level
- 2
- Pulse voltage test (1,2/50μs)
- 0.8 kV
- Rated insulation voltage
- < 50 V AC
- Surge voltage category
- III
Ratings Data
- Max. current for common pole
- 3.15 A
- Max. current per channel
- 0.5 A
- Operating voltage
- ≤ 25 V AC / 50 V DC
Supply Connection
- Clamping range, max.
- 2.5 mm²
- Clamping range, min.
- 0.13 mm²
- Ferrule with plastic collar, max.
- 2.5 mm²
- Flexible, max. H05(07) V-K
- 4 mm²
- Flexible, min. H05(07) V-K
- 0.5 mm²
- Flexible with sleeve, max.
- 2.5 mm²
- Flexible with sleeve, min.
- 0.5 mm²
- Solid, max. H05(07) V-U
- 6 mm²
- Solid, min. H05(07) V-U
- 0.5 mm²
- Stripping length
- 6 mm
- Tightening torque, max.
- 0.6 Nm
- Tightening torque, min.
- 0.5 Nm
- Type of connection
- Tension-clamp connection
- Wire cross-section, max. AWG
- AWG 12
- Wire cross-section, min. AWG
- AWG 26
Temperatures
- Operating temperature
- -20...50 °C
- Operating temperature, max.
- 50 °C
- Operating temperature, min.
- -20 °C
- Storage temperature
- -40...60 °C
- Storage temperature, max.
- 60 °C
- Storage temperature, min.
- -40 °C
