Description

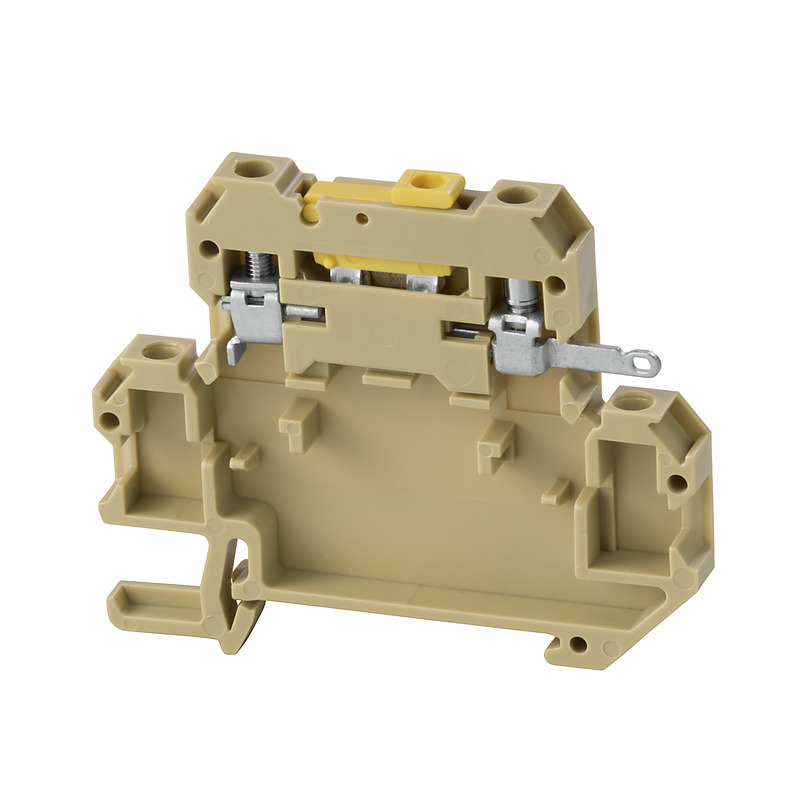

SAK Series, Test-disconnect terminal, Rated cross-section: 4 mm², Screw connectionDKT 4/35 SL 2STB
Weidmuller 1308260000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Additional Technical Data
- Type of mounting
- Snap-on
Approvals
- Approvals
- CE, EAC
- ROHS
- Conform
Classifications
- eClass 10.0
- 27-14-11-26
- eClass 9.0
- 27-14-11-26
- eClass 9.1
- 27-14-11-26
- ETIM 6.0
- EC000902
- ETIM 7.0
- EC000902
Conductors For Clamping (Rated Connection)
- Number of connections
- 4
- Type of connection
- Screw connection
Dimensions And Weights
- Depth
- 56.5 mm
- Depth (inches)
- 2.224 inch
- Height
- 65 mm
- Height (inches)
- 2.559 inch
- Net weight
- 11.92 g
- Width
- 6 mm
- Width (inches)
- 0.236 inch
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Material Data
- Colour
- beige / yellow
- Material
- PA 66
- UL 94 flammability rating
- V-2
Rating Data
- Power loss in accordance with IEC 60947-7-x
- 1.02 W
- Rated cross-section
- 4 mm²
- Rated current
- 10 A
- Rated voltage
- 400 V
- Volume resistance according to IEC 60947-7-x
- 1 mΩ
Safety Note
- Safety notice
- Safety Information
System Specifications
- End cover plate required
- Yes
- Levels cross-connected internally
- No
- N-function
- No
- Number of clamping points per level
- 2
- Number of levels
- 2
- Number of potentials
- 2
- Number of potentials per tier
- 1
- PE connection
- No
- PE function
- No
- PEN function
- No
- Rail
- TS 35
- Version
- Screw connection, Solder connection, Spacer, With sockets, One end without connector
Temperatures
- Continuous operating temp., max.
- 100 °C
- Continuous operating temp., min.
- -50 °C
- Storage temperature
- 10 °C...40 °C
- Storage temperature, max.
- 40 °C
- Storage temperature, min.
- 10 °C
