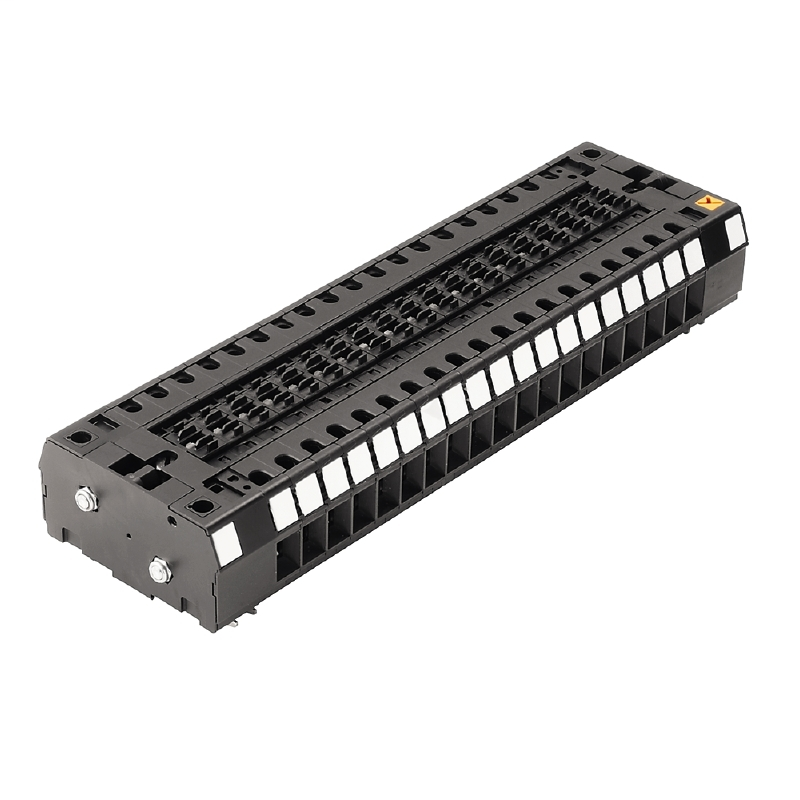

Weidmuller 1306770000
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Base terminal
Weidmuller 1306770000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Approvals
- Approvals
- UR
- EAC
- CE
- ROHS
- Conform
- UL File Number Search
- E60693
Classifications
- EClass 6.2
- 27-14-11-26
- EClass 9.1
- 27-14-11-06
- ETIM 6.0
- EC001284
Dimensions And Weights
- Net weight
- 651.77 g
General Information
- Continuous current
- 10 A AC/DC (Note: current via individual base units or via base unit with test plug)
- Dielectric strength
- 2.21 kV according to IEC 60512
- Max. current
- Note: max. allowable current when inserting or removing the test plug
- Protection degree
- IP20
- Rated current
- 20 A
- Rated impulse withstand voltage
- 5 kV nach IEC 60664
- Rated voltage
- 250 V AC
- Thermal current
- 350 A for 1 sec., 500 A for 0.3 sec., 1250 A for 30 ms
- Touch safety
- in accordance with VDE 0106-100
- Volume resistance
- ≤ 2mΩ
General Ordering Data
- Available until
- 2017-06-30
- Delivery status
- This article will no longer be available in the future.
- GTIN (EAN)
- 4050118109122
- Order No.
- 1306770000
- Qty.
- 1 pc(s).
- Type
- WIPRO BASE F19 ZB TS
Temperatures
- Continuous operating temp., max.
- 70 °C
- Continuous operating temp., min.
- -40 °C
Wires For Clamping
- Cross-section for connected conductor, finely stranded with wire-end ferrules and plastic collars DIN 46228/4, rated connection, min.
- 0.5 mm²
- Gauge to IEC 60947-1
- A5
- Tightening torque
- 0.8 Nm ("m" 4 and 6 mm² 1.0 Nm)
- Wire connection cross section, finely stranded, max.
- 10 mm²
- Wire connection cross-section, finely stranded, min.
- 0.5 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules and plastic collars DIN 46228/4, rated connection, max.
- 6 mm²
- Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, rated connection, max.
- 6 mm²
- Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, rated connection, min.
- 0.5 mm²
- Wire connection cross section, solid core max. rated connection
- 10 mm²
- Wire connection cross section, solid core, min. rated connection
- 0.5 mm²
- Wire connection cross section, stranded, rated connection, max.
- 6 mm²
- Wire connection cross section, stranded, rated connection, min.
- 0.5 mm²
