Weidmuller 1306030000
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

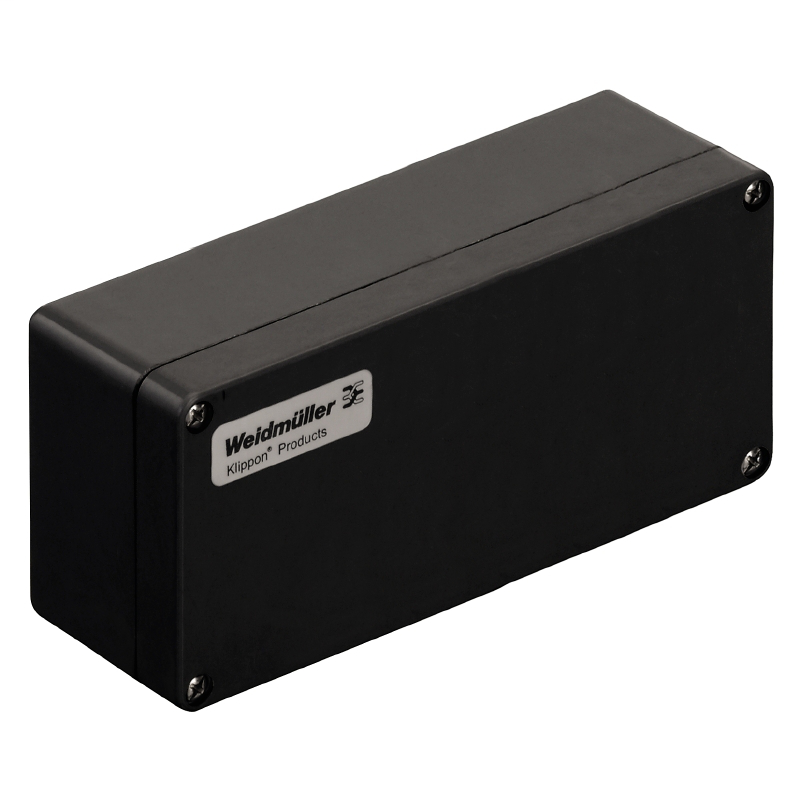

Klippon POK (polyester empty enclosure), Empty enclosure, Height: 75 mm, Width: 190 mm, Depth: 55 mm, Material: Glass fibre-reinforced polyester, untreated, polished, blackKLIPPON POK 081906 EX
Weidmuller 1306030000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Approvals
- Approvals
- CE, CULUS, EAC, GERMLLOYD, IBEXUATEX, IECEXIBE, KOREANCERT, LLOYDSREG, MARITREG
- ROHS
- Conform
- UL File Number Search
- E256877
Cable Glands, Left
- M12
- 1
- M16
- 1
- M20
- 1
Cable Glands, Right
- M12
- 1
- M16
- 1
- M20
- 1
Cable Glands, Top/Bottom
- M12
- 14 ???New14???
- M16
- 6
- M20
- 5
- M25
- 4
Certificate Numbers Enclosure
- Certificate no. assembled enclosure (AEx)
- E223792
- Certificate no. assembled enclosure (ATEX)
- IBExU13ATEX1004X
- Certificate no., assembled enclosure (EAC)
- RU C-DE.ГБ08.B.01328
- Certificate no. assembled enclosure (IECEx)
- IECEx IBE 13.0004X
- Certificate no., assembled enclosure (KOSHA)
- 16-AV4BO-0246X
- Certificate no. (cULus)
- E256877
- Certificate no. empty enclosure (AEx)
- E223792
- Certificate no. empty enclosure (ATEX)
- IBExU13ATEX1030 U
- Certificate no., empty enclosure (EAC)
- RU C-DE.ГБ08.B.00472
- Certificate no. empty enclosure (IECEx)
- IECEx IBE 13.0003U
- Certificate No. (GERMLLOYD)
- TAE00002R2
- Certificate No. (MARITREG)
- 14.40041.250
Classifications
- eClass 10.0
- 27-18-05-02
- eClass 9.0
- 27-18-05-02
- eClass 9.1
- 27-18-05-02
- ETIM 6.0
- EC002503
- ETIM 7.0
- EC002503
Dimensions And Weights
- Depth
- 55 mm
- Depth (inches)
- 2.165 inch
- Height
- 75 mm
- Height (inches)
- 2.953 inch
- Height of lowest version
- 55 mm
- Mounting dimension - height
- 45 mm
- Mounting dimension - width
- 178 mm
- Net weight
- 494 g
- Width
- 190 mm
- Width (inches)
- 7.48 inch
General Information
- Areas of use
- Explosive risk zone, Harbour facilities, Machine construction, Process industry, Transportation
- Enclosure attachment
- Installation through the housing rear wall, Fixing lugs
- Impact resistance
- 7 J ATEX version
- Installation advice
- Direct mounting, Mounting straps
- Lid attachment
- Slotted/Phillips screws
- Material
- Glass fibre-reinforced polyester
- Material thickness
- 4.44 mm
- Material thickness of cover
- 3.7 mm
- Material thickness of enclosure
- 4.44 mm
- Operating temperature, max.
- 100 °C
- Operating temperature, min.
- -55 °C
- Protection degree
- IP66
- Required tool
- 9008540000
- Seal material
- Silicone
- Standards
- DIN EN 62208 - Empty enclosure standard, IEC 60079-0, IEC 60079-7, IEC 60079-31
- Surface finish
- untreated, polished
- Torque for lid screws
- 2.5 Nm
- UL 94 flammability rating
- V-0
General Information On Accessories
- Material
- Glass fibre-reinforced polyester
- Material thickness
- 4.44 mm
- Mounting dimension - height
- 45 mm
- Mounting dimension - width
- 178 mm
- Surface finish
- untreated, polished
Horizontal Assembly
- WDU 2,5 / ZDU 2,5 / IDU 2,5
- 1x26
- WDU 4 / ZDU 4
- 1x22
