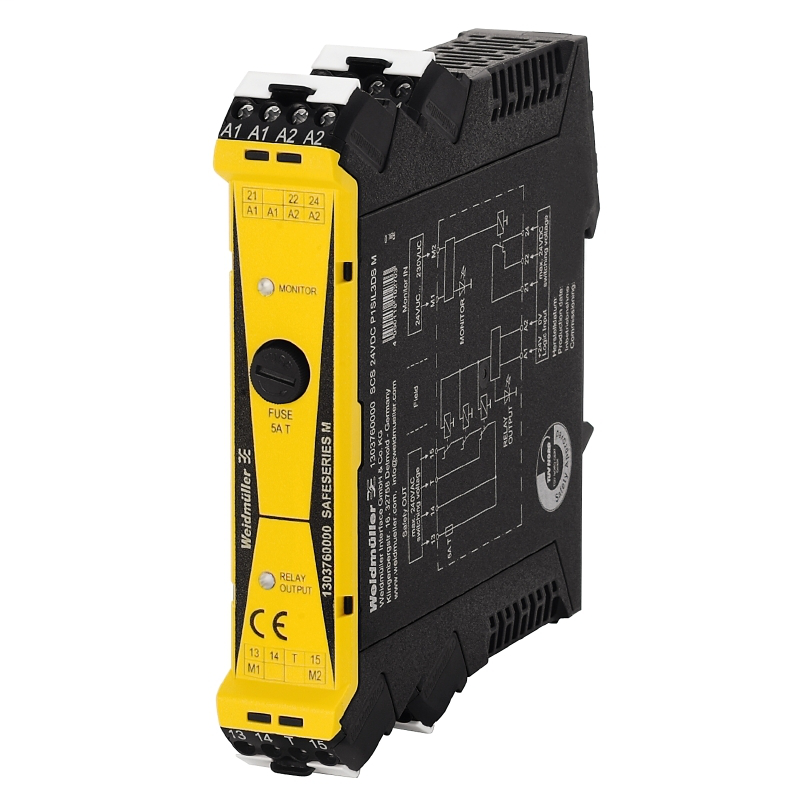

Weidmuller 1303760000
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
SAFESERIES, Safety relay,24 V DC ± 20%, 35 mA , Max. switching current, internal fuse : 5 A (refer to derating curve), SIL 3, DIN EN 61508SCS 24VDC P1SIL3DS M
Weidmuller 1303760000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Approvals
- Approvals
- CE, CULUS, EAC, FUSAFETY
- ROHS
- Conform
- UL File Number Search
- E223474
Classifications
- eClass 10.0
- 27-37-18-19
- eClass 9.0
- 27-37-18-19
- eClass 9.1
- 27-37-18-19
- ETIM 6.0
- EC001449
- ETIM 7.0
- EC001449
Connection Data
- Blade size
- size PH0
- Clamping range, max.
- 2.5 mm²
- Clamping range, min.
- 0.13 mm²
- Clamping range, rated connection
- 1.5 mm²
- Conductor cross-section, flexible, AEH (DIN 46228-1), max.
- 2.5 mm2
- Conductor cross-section, flexible, AEH (DIN 46228-1), min.
- 0.2 mm2
- Tightening torque, max.
- 0.6 Nm
- Tightening torque, min.
- 0.4 Nm
- Twin wire-end ferrules, max.
- 1.5 mm2
- Twin wire-end ferrules, min.
- 0.5 mm2
- Wire connection cross section AWG, max.
- AWG 12
- Wire connection cross section AWG, min.
- AWG 26
- Wire connection cross section, finely stranded, max.
- 2.5 mm2
- Wire connection cross-section, finely stranded, min.
- 0.2 mm2
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
- 2.5 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
- 0.2 mm2
- Wire connection method
- Screw connection
- Wire cross-section, solid, max.
- 2.5 mm2
- Wire cross-section, solid, min.
- 0.2 mm2
Dimensions And Weights
- Depth
- 114.1 mm
- Depth (inches)
- 4.492 inch
- Height
- 117.3 mm
- Height (inches)
- 4.618 inch
- Net weight
- 200 g
- Width
- 22.5 mm
- Width (inches)
- 0.886 inch
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Further Details Of Approvals / Standards
- Certificate no. (cULus)
- E223474
- Standards
- EN 50178, EN 61000, EN 61326-3-2
General Data
- Colour
- black, yellow
- Noxious gas resistance to EN 60068-2-60
- Yes (art. No.: 1304040000 only)
- Rail
- TS 35
Input (Monitoring)
- Current consumption
- 23 mA @ 24 V DC, 4,4 mA @ 230 V AC
- Protective circuit
- Rectifier
- Rated control voltage
- 24 V UC…230 V UC ±10 %
- Status indicator
- LED yellow
Input (Safety Circuit)
- Current consumption
- 42 mA
- Guaranteed current consumption of 24 VDC -10%
- 35 mA
- Inrush current
- < 250 mA / < 5 ms
- Protective circuit
- Reverse polarity protection, Free-wheeling diode
- Rated control voltage
- 24 V DC ± 20%
- Status indicator
- LED yellow
Insulation Coordination
- Creepage and clearance distance input – output
- ≥ 5.5 mm
- Creepage and clearance distance output – output
- ≥ 5.5 mm
- Dielectric strength, Input/Output
- 4 kVeff / 1 min
- Dielectric strength output – output
- 4 kVeff / 1 min
- Dielectric strength to mounting rail
- 4 kVeff / 1 Min.
- Impulse withstand voltage
- 6 kV (1.2/50 µs)
- Pollution severity
- 2
- Protection degree
- IP20
- Rated voltage
- 300 V
- Surge voltage category
- III
Output (Monitoring)
- Contact base material
- AgNi 5µm Au
- Contact design
- CO contact
- Max. allowed switching current
- 30 mA
- Max. permitted switching voltage
- 24 V DC
- Min. switching capacity
- 1 mA @ 1 V
- Short circuit resistant
- No
- Switch-on time
- typ. 17 ms
Output (Safety Circuit)
- Contact base material
- AgNi 0.15 gold flashed
- Contact design
- NO contact
- External back-up fuse
- 5 A time lag
- Internal fuse
- 5 A time-lag
- Max. permitted switching current
- 8 A
- Max. permitted switching voltage
- 250 V AC / 30 V DC
- Max. switching capacity
- 2000 VA
- Max. switching current, external fuse
- 5 A (refer to derating curve)
- Max. switching current, internal fuse
- 5 A (refer to derating curve)
- Min. switching capacity
- 10 mA @ 12 V
- Short circuit resistance
- No
- Switch-off time
- typ. 14 ms
- Switch-on time
- typ. 7 ms
Ratings Iecex/Atex/Cul
- Certificate no. (cULus)
- E223474
Safety-Related Basic Specifications
- Device type
- A
- Hardware fault tolerance (HFT)
- 2
- Safety category
- SIL 3
- Safety standard
- DIN EN 61508
- T
- 12 Years
Temperatures
- Humidity
- 40 °C / 93 % rel. humidity, no condensation
- Operating temperature
- -25 °C...50 °C
- Operating temperature, max.
- 50 °C
- Operating temperature, min.
- -25 °C
- Storage temperature
- -40 °C...85 °C
- Storage temperature, max.
- 85 °C
- Storage temperature, min.
- -40 °C
