Description

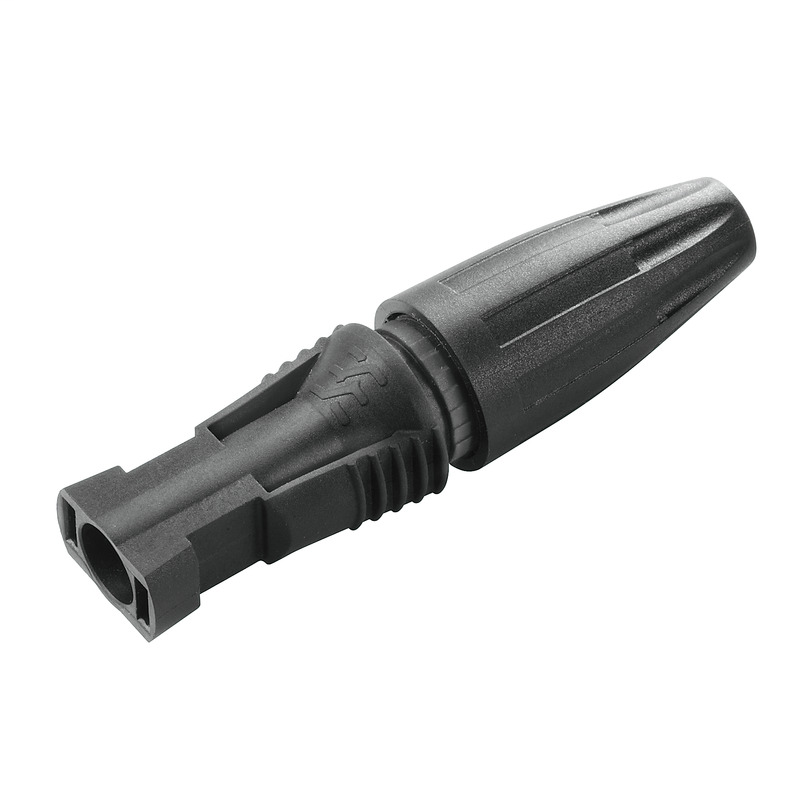

Photovoltaics, Plug-in connector, PUSH IN connection, PinPV-STICK- VPE200
Weidmuller 1303510000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Approvals
- Approvals
- EAC, TUEV
- ROHS
- Conform
Classifications
- eClass 10.0
- 27-44-01-07
- eClass 9.0
- 22-57-92-03
- eClass 9.1
- 27-44-01-07
- ETIM 6.0
- EC002928
- ETIM 7.0
- EC002928
Dimensions And Weights
- Net weight
- 15.525 g
Technical Data
- Approvals
- TÜV Rheinland (DIN EN 50521:2013), TÜV Rheinland (IEC 62852)
- Cable type
- 2 Pfg1169/08.07, EN 50618:2014
- Conductor cross-section, max.
- 6 mm²
- Conductor cross-section, min.
- 4 mm²
- Outer cable diameter, max.
- 7.5 mm
- Outer cable diameter, min.
- 5.5 mm
- Pollution severity
- 3 (2 within the sealed area)
- Protection degree
- IP65, in closed state, IP2x open
- Rated current
- 30 A
- Rated voltage
- 1500 V DC (IEC)
Temperatures
- Continuous operating temp., max.
- 85 °C
- Continuous operating temp., min.
- -40 °C
- Temperature range, installation, max.
- 40 °C
- Temperature range, installation, min.
- 10 °C
