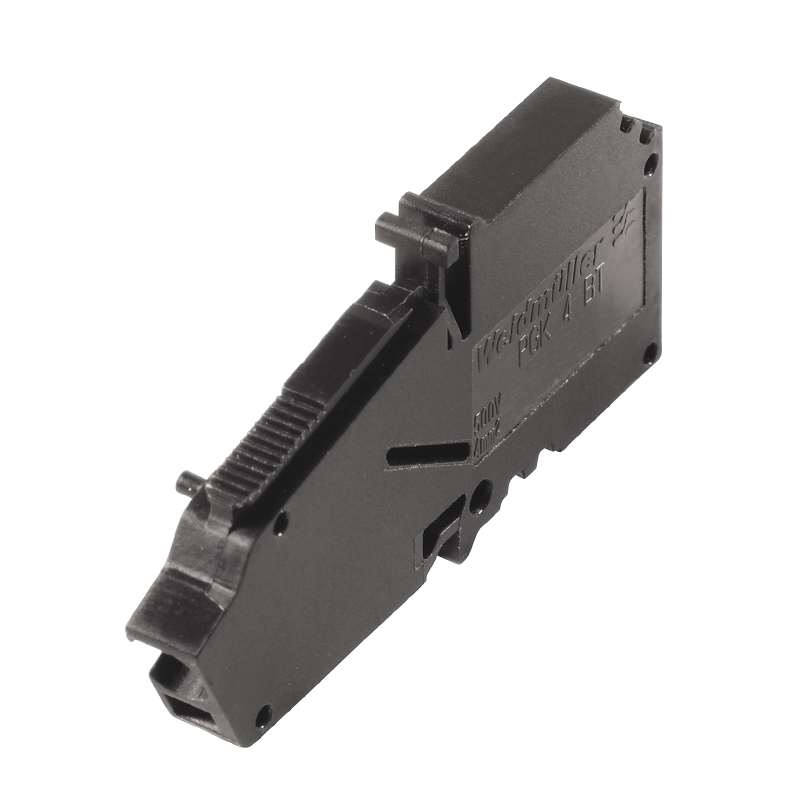

Weidmuller 1288590000

Approvals

• Approvals
  • CSA, cURus, EAC
• ROHS
  • Conform
• UL File Number Search
  • E60693

Classifications

• eClass 10.0
  • 27-14-11-34
• eClass 9.0
  • 27-14-11-34
• eClass 9.1
  • 27-14-11-34
• ETIM 6.0
  • EC001283
• ETIM 7.0
  • EC001283

Conductors Suitable For Connection

• Clamping range, max.
  • 4 mm²
• Clamping range, min.
  • 0.5 mm²
• Flexible, max. H05(07) V-K
  • 4 mm²
• Flexible, min. H05(07) V-K
  • 0.5 mm²
• Max. clamping range
  • 4 mm²
• Solid, max. H05(07) V-U
  • 4 mm²
• Solid, min. H05(07) V-U
  • 0.5 mm²
• Wire connection cross section AWG, max.
  • AWG 10
• Wire connection cross section AWG, min.
  • AWG 24
• w. plastic collar ferrule, DIN 46228 pt 4, max.
  • 2.5 mm²
• w. plastic collar ferrule, DIN 46228 pt 4, min.
  • 0.5 mm²
• w. wire end ferrule, DIN 46228 pt 1, max.
  • 4 mm²
• w. wire end ferrule, DIN 46228 pt 1, min.
  • 0.5 mm²

Dimensions And Weights

• Net weight
  • 6.272 g

Material Data

• Colour
  • black
• Colour chart (similar)
  • RAL 9011
• Contact material
  • E-Cu
• Contact surface
  • tinned
• Insulating material
  • Wemid (PA)
• Max. relative humidity during storage
  • 80 %
• Operating temperature, max.
  • 120 °C
• Operating temperature, min.
  • -50 °C
• Storage temperature, max.
  • 55 °C
• Storage temperature, min.
  • -25 °C
• Temperature range, installation, max.
  • 120 °C
• Temperature range, installation, min.
  • -25 °C
• UL 94 flammability rating
  • V-0

Notes

• Notes
  • Packing unit incl. 30 locking elements (VREL PGK 4 OR – 1288610000) End plate required Clearance and creepage distances to other components must be devised in accordance with the relevant application standard. This can be achieved in the device by full encapsulation or by the use of additional spacer plates. Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards. Colours: SW = black; GN/YL = green/yellow; GY = grey Additional colours on request

Packing

• Packaging
  • Box
• VPE height
  • 180 mm
• VPE length
  • 90 mm
• VPE width
  • 110 mm

Rated Data Acc. To Csa

• Certificate No. (CSA)
  • 200039-70000589
• Institute (CSA)
  • CSA
• Rated current (Use group B / CSA)
  • 30 A
• Rated current (Use group C / CSA)
  • 30 A
• Rated current (Use group D / CSA)
  • 30 A
• Rated voltage (Use group B / CSA)
  • 300 V
• Rated voltage (Use group C / CSA)
  • 150 V
• Rated voltage (Use group D / CSA)
  • 300 V
• Reference to approval values
  • Specifications are maximum values, details - see approval certificate.
• Wire cross-section, AWG, max.
  • AWG 10
• Wire cross-section, AWG, min.
  • AWG 24

Rated Data Acc. To Iec

• Rated current, max. number of poles (Tu=20°C)
  • 32 A
• Rated current, min. number of poles (Tu=20°C)
  • 32 A
• Rated impulse voltage for surge voltage class/ contamination degree III/3
  • 6 kV
• Rated voltage for surge voltage class / pollution degree III/3
  • 500 V
• tested acc. to standard
  • IEC 60664-1, IEC 61984

Rated Data Acc. To Ul 1059

• Certificate No. (cURus)
  • E60693
• Institute (cURus)
  • cURus
• Rated current (Use group B / UL 1059)
  • 30 A
• Rated current (Use group C / UL 1059)
  • 30 A
• Rated current (Use group D / UL 1059)
  • 30 A
• Rated voltage (Use group B / UL 1059)
  • 300 V
• Rated voltage (Use group C / UL 1059)
  • 150 V
• Rated voltage (Use group D / UL 1059)
  • 300 V
• Reference to approval values
  • Specifications are maximum values, details - see approval certificate.
• Wire cross-section, AWG, max.
  • AWG 10
• Wire cross-section, AWG, min.
  • AWG 24

System Parameters

• Conductor outlet direction
  • 180°
• Fitted by customer
  • Yes
• Number of poles
  • 1
• Product family
  • OMNIMATE Power - series PGK
• Screwdriver blade
  • 0.4 x 2.5
• Stripping length
  • 12 mm
• Touch-safe protection acc. to DIN VDE 0470
  • IP 20
• Wire connection method
  • PUSH IN
