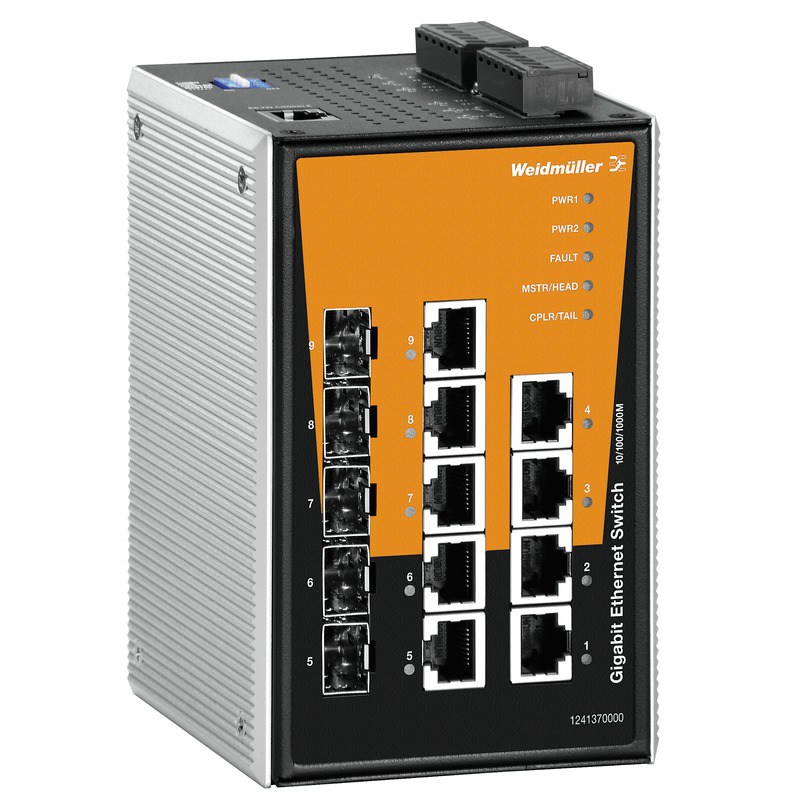

Weidmuller 1287020000

Approvals

• Approvals
  • CULUS, DNV GL, EAC
• ROHS
  • Conform
• UL File Number Search
  • E141197

Classifications

• eClass 10.0
  • 19-17-04-01
• eClass 9.0
  • 19-17-01-06
• eClass 9.1
  • 19-17-01-06
• ETIM 6.0
  • EC000734
• ETIM 7.0
  • EC000734

Dimensions And Weights

• Depth
  • 107 mm
• Depth (inches)
  • 4.213 inch
• Height
  • 135 mm
• Height (inches)
  • 5.315 inch
• Net weight
  • 1,510 g
• Width
  • 80.2 mm
• Width (inches)
  • 3.157 inch

Emc Conformity And Approvals

• EMC standards
  • EN 55032, EN 55024, CISPR 32, FCC Part 15 Subpart B Class A, IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 Ghz: 10 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8
• Free fall
  • According to IEC 60068-2-32
• Security
  • UL508, EN60950-1
• Ship use
  • DNV-GL
• Shock
  • according to IEC 60068-2-27
• Vibration
  • according to IEC 60068-2-6

Environmental Conditions

• Humidity
  • 5 to 95 % (non-condensing)
• Operating temperature, max.
  • 75 °C
• Operating temperature, min.
  • -40 °C
• Storage temperature, max.
  • 85 °C
• Storage temperature, min.
  • -40 °C

Environmental Product Compliance

• REACH SVHC
  • Lead 7439-92-1

Guarantee

• Time interval
  • 5 years

Interfaces

• Alarm contact
  • 2 relay outputs with a current capacity of 1 A at 24 V DC
• Console port interface
  • RS-232
• Digital inputs
  • 2 inputs with the same ground, isolated+13 To +30 V for logic "1"-30 To +3 V for logic "0"Max. input current: 8 mA
• DIP switch
  • Turbo-Ring, Master, Coupler, Reserve
• Fibre-optic ports
  • 100/1000Base SFP Slot
• LED indicator
  • PWR1, PWR2, FAULT, 10/100/1000M, MSTR/HEAD, CPLR/TAIL
• Note 1
  • When connecting a single-mode fiber transceiver over a short distance, we recommend using an attenuator to prevent the transceiver from being damaged by excessive optical power.
• Number of ports
  • 4 * RJ45 10/100/1000BaseT(X), 5 * combo-ports (10/100/1000BaseT(X) or 100/1000BaseSFP)
• RJ45 ports
  • 10/100/1000BaseT(X), auto negotiation

Mtbf

• Database
  • Telcordia (Bellcore), GB
• MTBF
  • 330,000 hrs

Power Supply

• Connection type
  • 2 removable 6-pin terminal blocks
• Current consumption
  • 0.81 A at 24 V
• Overload current protection
  • Existing
• Reverse polarity protection
  • Available
• Supply voltage, max.
  • 60 V DC
• Supply voltage, min.
  • 9.6 V DC
• Voltage supply
  • 12/24/48 V DC, 2 redundant inputs

Switch Characteristics

• Bandwidth backplane
  • 18 Gbps
• IGMP-Groups
  • 256
• MAC table size
  • 8 K
• Max. number of available VLANs
  • 64
• Packet buffer size
  • 1 Mbit
• Priority queues
  • 4
• VLAN-ID max
  • 4,094
• VLAN-ID min
  • 1

Technical Data

• Housing main material
  • metal
• Protection degree
  • IP30
• Type of mounting
  • DIN rail, Panel (with optional mounting kit)

Technology

• Data switching
  • Store and Forward
• Flow control
  • IEEE 802.3x flow control, Back pressure flow control
• MIB
  • MIB-II, Ethernet-Like MIB, P-BRIDGE MIB, Q-BRIDGE MIB, Bridge MIB, RSTP MIB, RMON MIB Group 1, 2, 3, 9
• Protocol
  • IGMPv1/v2, GMRP, GVRP, SNMPv1/v2c/v3, DHCP Server/Client, DHCP option 66/67/82, BootP, TFTP, SNTP, SMTP, RARP, RMON, HTTP, HTTPS, Telnet, SSH, Syslog, Modbus/TCP, SNMP Inform, LLDP, IEEE 1588 PTP, IPv6
• Standard
  • IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3z for 1000BaseX, IEEE 802.3x for flow control, IEEE 802.1D-2004 for the Spanning Tree protocol, IEEE 802.1w for Rapid STP, IEEE 802.1Q for VLAN tagging, IEEE 802.1p for Class of Service, IEEE 802.1X for authentication, IEEE 802.3ad for port trunk with LACP
