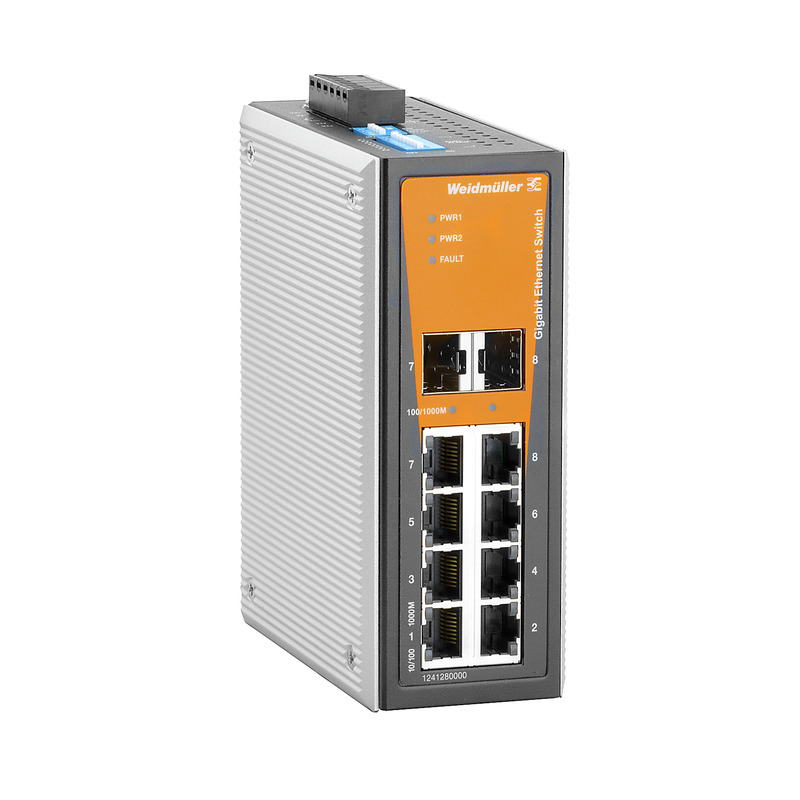

Weidmuller 1286870000

Approvals

• Approvals
  • CULUS, CULUSEX, DEMKOATEX, DNV GL, EAC
• ROHS
  • Conform
• UL File Number Search
  • E141197

Classifications

• eClass 10.0
  • 19-17-04-02
• eClass 9.0
  • 19-17-01-06
• eClass 9.1
  • 19-17-01-06
• ETIM 6.0
  • EC000734
• ETIM 7.0
  • EC000734

Dimensions And Weights

• Depth
  • 105 mm
• Depth (inches)
  • 4.134 inch
• Height
  • 135 mm
• Height (inches)
  • 5.315 inch
• Net weight
  • 630 g
• Width
  • 53.6 mm
• Width (inches)
  • 2.11 inch

Emc Conformity And Approvals

• EMC standards
  • EN 55032, EN 55024, CISPR 32, FCC Part 15 Subpart B Class A, IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 Ghz: 10 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8
• Explosive risk zone
  • UL/cUL, Class I, Division 2, Groups A, B, C and D, ATEX Zone 2 Ex nA nC IIC T4 Gc
• Free fall
  • According to IEC 60068-2-32
• Security
  • UL508, EN60950-1
• Ship use
  • DNV-GL
• Shock
  • according to IEC 60068-2-27
• Vibration
  • according to IEC 60068-2-6

Environmental Conditions

• Humidity
  • 5 to 95 % (non-condensing)
• Operating temperature, max.
  • 75 °C
• Operating temperature, min.
  • -40 °C
• Storage temperature, max.
  • 85 °C
• Storage temperature, min.
  • -40 °C

Environmental Product Compliance

• REACH SVHC
  • Lead 7439-92-1

Guarantee

• Time interval
  • 5 years

Interfaces

• Alarm contact
  • 1 relay output with a current capacity of 1 A at 24 V DC
• DIP switch
  • Port surveillance, Broadcast storm protection enable/disable, Enable/disable jumbo frame support, Activate/deactivate IEEE 802.3az energy-efficient Ethernet
• Fibre-optic ports
  • 100/1000Base SFP Slot
• LED indicator
  • Power LED: PWR1, PWR2, FAULT, 10/100/1000M (TP-Port), 100/1000M (SFP-Port)
• Note 1
  • When connecting a single-mode fiber transceiver over a short distance, we recommend using an attenuator to prevent the transceiver from being damaged by excessive optical power.
• Note 2
  • The SFP slot can only be used with Weidmüller SFP transceivers. Third-party SFP transceivers are not accepted by the switch.
• Number of ports
  • 6 * RJ45 10/100/1000BaseT(X), 2 * combo-ports (10/100/1000BaseT(X) or 100/1000BaseSFP)
• RJ45 ports
  • 10/100/1000BaseT(X), auto negotiation, Full-/half-duplex mode, Auto MDI/MDI-X port

Mtbf

• Database
  • Telcordia (Bellcore), GB
• MTBF
  • 2,424,649 hrs

Power Supply

• Connection type
  • 1 removable 6-pin terminal block
• Current consumption
  • 0.34 A at 24 V
• Reverse polarity protection
  • Available
• Supply voltage, max.
  • 60 V DC
• Supply voltage, min.
  • 9.6 V DC
• Voltage supply
  • 12/24/48 V DC, 2 redundant inputs

Switch Characteristics

• Bandwidth backplane
  • 16 Gbps
• Jumbo frame support
  • up to 9.6 KB
• MAC table size
  • 8 K
• Packet buffer size
  • 4,000 Kbit

Technical Data

• Housing main material
  • metal
• Protection degree
  • IP30
• Type of mounting
  • DIN rail, Panel (with optional mounting kit)

Technology

• Data switching
  • Store and Forward
• Flow control
  • IEEE 802.3x flow control, Back pressure flow control
• Standard
  • IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3z for 1000BaseX, IEEE 802.3x for flow control, IEEE 802.3az Energy-Efficient Ethernet
