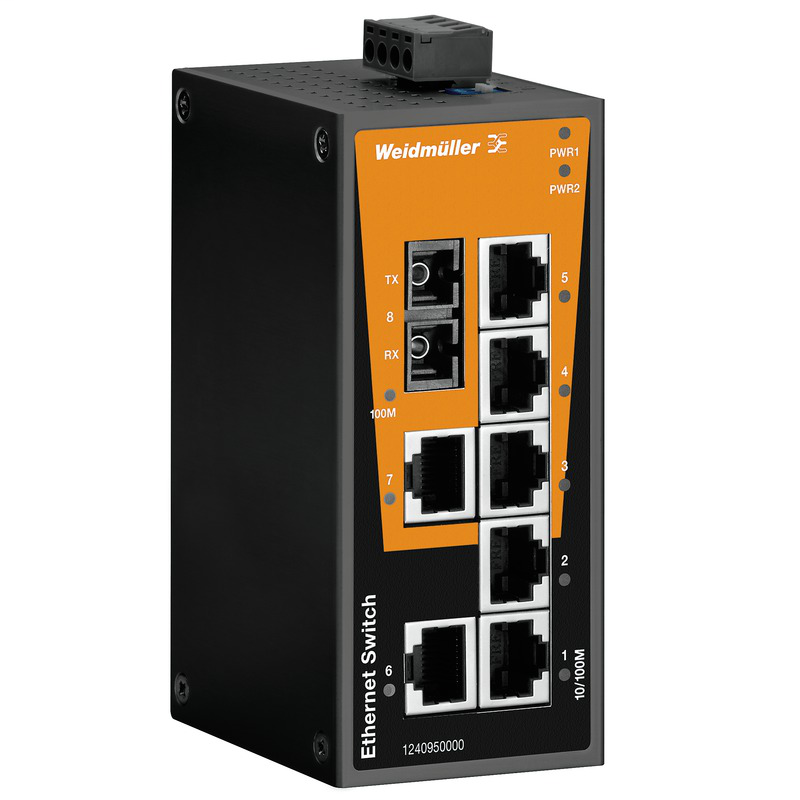

Weidmuller 1286580000

Approvals

• Approvals
  • CULUS, CULUSEX, DEMKOATEX, DNV GL, EAC, KOREANCERT
• ROHS
  • Conform
• UL File Number Search
  • E141197

Classifications

• eClass 10.0
  • 19-17-04-02
• eClass 9.0
  • 19-17-01-06
• eClass 9.1
  • 19-17-01-06
• ETIM 6.0
  • EC000734
• ETIM 7.0
  • EC000734

Dimensions And Weights

• Depth
  • 70 mm
• Depth (inches)
  • 2.756 inch
• Height
  • 115 mm
• Height (inches)
  • 4.528 inch
• Net weight
  • 275 g
• Width
  • 50 mm
• Width (inches)
  • 1.969 inch

Emc Conformity And Approvals

• EMC standards
  • EN 55032, EN 55024, CISPR 32, FCC Part 15 Subpart B Class A, IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 Ghz: 10 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8
• Explosive risk zone
  • UL/cUL, Class I, Division 2, Groups A, B, C and D, ATEX Zone 2 Ex nA IIC T4 Gc
• Free fall
  • According to IEC 60068-2-32
• Security
  • UL508
• Ship use
  • DNV-GL
• Shock
  • according to IEC 60068-2-27
• Vibration
  • according to IEC 60068-2-6

Environmental Conditions

• Humidity
  • 5 to 95 % (non-condensing)
• Operating temperature, max.
  • 75 °C
• Operating temperature, min.
  • -40 °C
• Storage temperature, max.
  • 85 °C
• Storage temperature, min.
  • -40 °C

Environmental Product Compliance

• REACH SVHC
  • Lead 7439-92-1

Fibre Optic 100Basefx

• Link-budget singlemode
  • 29 dB
• Max. TX single-mode
  • 0 dBm
• Min. TX single-mode
  • -5 dBm
• Receive sensitivity single-mode
  • -34 dBm
• System reserve single-mode
  • -3 dBm
• Typical distances single-mode
  • 40 km (9/125 μm, single-mode cable)
• Wavelength single-mode
  • 1,310 nm

Guarantee

• Time interval
  • 5 years

Interfaces

• DIP switch
  • 1x for enabling/disabling the broadcast storm protection
• Fibre-optic ports
  • 100BaseFX ports (SC connector), Singlemode
• LED indicator
  • PWR1, PWR2, 10/100M (TP-Port), 100M (fibre-optic port).
• Note 1
  • When connecting a single-mode fiber transceiver over a short distance, we recommend using an attenuator to prevent the transceiver from being damaged by excessive optical power.
• Number of ports
  • 7x RJ45, 1 * SC Single-mode
• RJ45 ports
  • 10/100BaseT(X), auto negotiation, Full-/half-duplex mode, Auto MDI/MDI-X port

Mtbf

• Database
  • Telcordia (Bellcore), GB
• MTBF
  • 2,428,212 hrs

Power Supply

• Connection type
  • 1 removable 4-pin terminal block
• Current consumption
  • 0.17 A at 24 V
• Overload current protection
  • 1.1 A
• Reverse polarity protection
  • Available
• Supply voltage, max.
  • 60 V DC
• Supply voltage, min.
  • 9.6 V DC
• Voltage supply
  • 12/24/48 V DC, 2 redundant inputs

Switch Characteristics

• Bandwidth backplane
  • 1.6 Gbps
• MAC table size
  • 1 K
• Packet buffer size
  • 512 Kbit

Technical Data

• Housing main material
  • Aluminium
• Protection degree
  • IP30
• Type of mounting
  • DIN rail, Panel (with optional mounting kit)

Technology

• Data switching
  • Store and Forward
• Flow control
  • IEEE 802.3x flow control, Back pressure flow control
• Standard
  • IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for flow control
