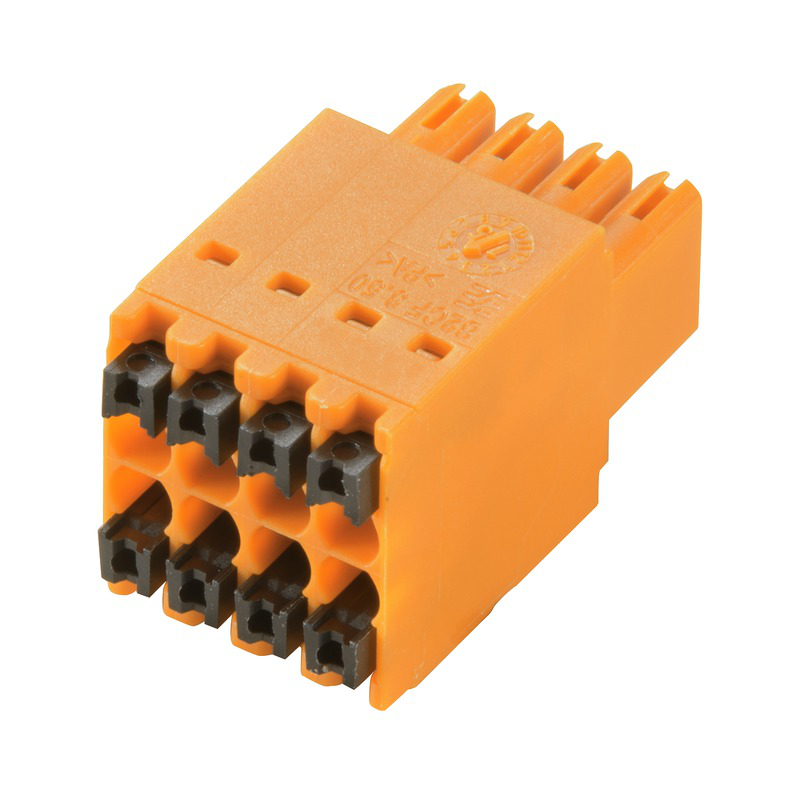

Weidmuller 1277480000

Approvals

• Approvals
  • CSA, cURus, EAC
• ROHS
  • Conform
• UL File Number Search
  • E60693

Classifications

• eClass 10.0
  • 27-44-03-09
• eClass 9.0
  • 27-44-03-09
• eClass 9.1
  • 27-44-03-09
• ETIM 6.0
  • EC002638
• ETIM 7.0
  • EC002638

Conductors Suitable For Connection

• Clamping range, max.
  • 1.5 mm²
• Clamping range, min.
  • 0.14 mm²
• Flexible, max. H05(07) V-K
  • 1.5 mm²
• Flexible, min. H05(07) V-K
  • 0.14 mm²
• Max. clamping range
  • 1.5 mm²
• Reference text
  • The outside diameter of the plastic collar should not be larger than the pitch (P).
• Solid, max. H05(07) V-U
  • 1.5 mm²
• Solid, min. H05(07) V-U
  • 0.14 mm²
• w. plastic collar ferrule, DIN 46228 pt 4, max.
  • 1 mm²
• w. plastic collar ferrule, DIN 46228 pt 4, min.
  • 0.14 mm²
• w. wire end ferrule, DIN 46228 pt 1, max.
  • 1.5 mm²
• w. wire end ferrule, DIN 46228 pt 1, min.
  • 0.14 mm²

Dimensions And Weights

• Depth
  • 26.25 mm
• Depth (inches)
  • 1.033 inch
• Height
  • 15.2 mm
• Height (inches)
  • 0.598 inch
• Net weight
  • 5.272 g
• Width
  • 14 mm
• Width (inches)
  • 0.551 inch

Material Data

• Colour
  • black
• Colour chart (similar)
  • RAL 9011
• Colour of operational elements
  • orange
• Comparative Tracking Index (CTI)
  • ≥ 600
• Contact material
  • Copper alloy
• Contact surface
  • tinned
• GWFI
  • 960 °C
• Insulating material
  • PA 66 GF 30
• Insulating material group
  • II
• Insulation strength
  • ≥ 108 Ω
• Layer structure of plug contact
  • 2-5 µm Sn hot-dip tinned
• Material of operational elements
  • PA 66/6
• Max. relative humidity during storage
  • 80 %
• Operating temperature, max.
  • 120 °C
• Operating temperature, min.
  • -50 °C
• Storage temperature, max.
  • 55 °C
• Storage temperature, min.
  • -25 °C
• Temperature range, installation, max.
  • 120 °C
• Temperature range, installation, min.
  • -40 °C
• UL 94 flammability rating
  • V-0

Notes

• IPC conformity
  • Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.
• Notes
  • Additional colours on request Gold-plated contact surfaces on request Rated current related to rated cross-section & min. No. of poles. Crimp shape A for wire-end ferrules with crimping tools PZ 1,5 (order no. 9005990000) or PZ 6/5 (order no. 9011460000) for larger wire cross-sections recommended. P on drawing = pitch Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards. Max. outer diameter of the conductor 2.6 mm Wire-end ferrule w/plastic collar DIN 46228/4 or Weidmüller colour code1.00mm² [H1.0/18D] mtl. ferrule leng. 12mm, stripping leng. 15mm0.75mm² [H0.75/18D] mtl. ferrule leng. 12mm, stripping leng. 14mm0.50mm² [H0.5/16D] mtl. ferrule leng. 10mm, stripping leng. 12mm0.34mm² [H0.34/12] mtl. ferrule leng. 8mm, stripping leng. 10mm0.25mm² [H0.25/12] mtl. ferrule leng. 8mm, stripping leng. 10mm0.14mm² [H0.14/12] mtl. ferrule leng. 8mm, stripping leng. 10mm Wire-end ferrule w/o plastic collar acc. to DIN 46228/11.50mm² [H1.5/10] mtl. ferrule leng. 10mm, stripping leng. 10mm Wire-end ferrule w/plastic collar DIN 46228/4 and 2 connec. cables2 x 0.20mm² [H0.5/16] mtl. ferrule leng. 10mm, stripping leng. 12mm2 x 0.34mm² [H1.0/18] mtl. ferrule leng. 12mm, stripping leng. 15mm

Packing

• Packaging
  • Box
• VPE height
  • 350 mm
• VPE length
  • 35 mm
• VPE width
  • 135 mm

Rated Data Acc. To Csa

• Certificate No. (CSA)
  • 200039-1121690
• Institute (CSA)
  • CSA
• Rated current (Use group B / CSA)
  • 9.5 A
• Rated current (Use group C / CSA)
  • 9.5 A
• Rated current (Use group D / CSA)
  • 9.5 A
• Rated voltage (Use group B / CSA)
  • 300 V
• Rated voltage (Use group C / CSA)
  • 50 V
• Rated voltage (Use group D / CSA)
  • 300 V
• Reference to approval values
  • Specifications are maximum values, details - see approval certificate.
• Wire cross-section, AWG, max.
  • AWG 16
• Wire cross-section, AWG, min.
  • AWG 26

Rated Data Acc. To Iec

• Rated current, max. number of poles (Tu=20°C)
  • 10 A
• Rated current, max. number of poles (Tu=40°C)
  • 9 A
• Rated current, min. number of poles (Tu=20°C)
  • 13.4 A
• Rated current, min. number of poles (Tu=40°C)
  • 12 A
• Rated impulse voltage for surge voltage class/ contamination degree III/3
  • 2.5 kV
• Rated impulse voltage for surge voltage class/ pollution degree II/2
  • 2.5 kV
• Rated impulse voltage for surge voltage class/ pollution degree III/2
  • 2.5 kV
• Rated voltage for surge voltage class / pollution degree II/2
  • 320 V
• Rated voltage for surge voltage class / pollution degree III/2
  • 160 V
• Rated voltage for surge voltage class / pollution degree III/3
  • 160 V
• Short-time withstand current resistance
  • 3 x 1s with 80 A
• tested acc. to standard
  • IEC 60664-1, IEC 61984

Rated Data Acc. To Ul 1059

• Certificate No. (cURus)
  • E60693
• Institute (cURus)
  • cURus
• Rated current (Use group B / UL 1059)
  • 9.5 A
• Rated current (Use group C / UL 1059)
  • 9.5 A
• Rated current (Use group D / UL 1059)
  • 9.5 A
• Rated voltage (Use group B / UL 1059)
  • 300 V
• Rated voltage (Use group C / UL 1059)
  • 50 V
• Rated voltage (Use group D / UL 1059)
  • 300 V
• Reference to approval values
  • Specifications are maximum values, details - see approval certificate.
• Wire cross-section, AWG, max.
  • AWG 16
• Wire cross-section, AWG, min.
  • AWG 26

System Parameters

• Actuating force actuating element, max.
  • 40 N
• Can be coded
  • Yes
• Conductor outlet direction
  • 180°
• L1 in inches
  • 0.413 inch
• L1 in mm
  • 10.5 mm
• Number of poles
  • 8
• Number of rows
  • 1
• Pin series quantity
  • 2
• Pitch in inches (P)
  • 0.138 inch
• Pitch in mm (P)
  • 3.5 mm
• Plugging cycles
  • 25
• Plugging force/pole, max.
  • 5 N
• Product family
  • OMNIMATE Signal - series B2C/S2C 3.50 - 2-row
• Pulling force/pole, max.
  • 5 N
• Rated cross-section
  • 1.5 mm²
• Screwdriver blade
  • 0.4 x 2.5
• Screwdriver blade standard
  • DIN 5264
• Stripping length
  • 10 mm
• Touch-safe protection acc. to DIN VDE 0470
  • IP 20
• Touch-safe protection acc. to DIN VDE 57 106
  • Safe from finger touch
• Type of connection
  • Field connection
• Wire connection method
  • PUSH IN, Tension-clamp connection
