Description

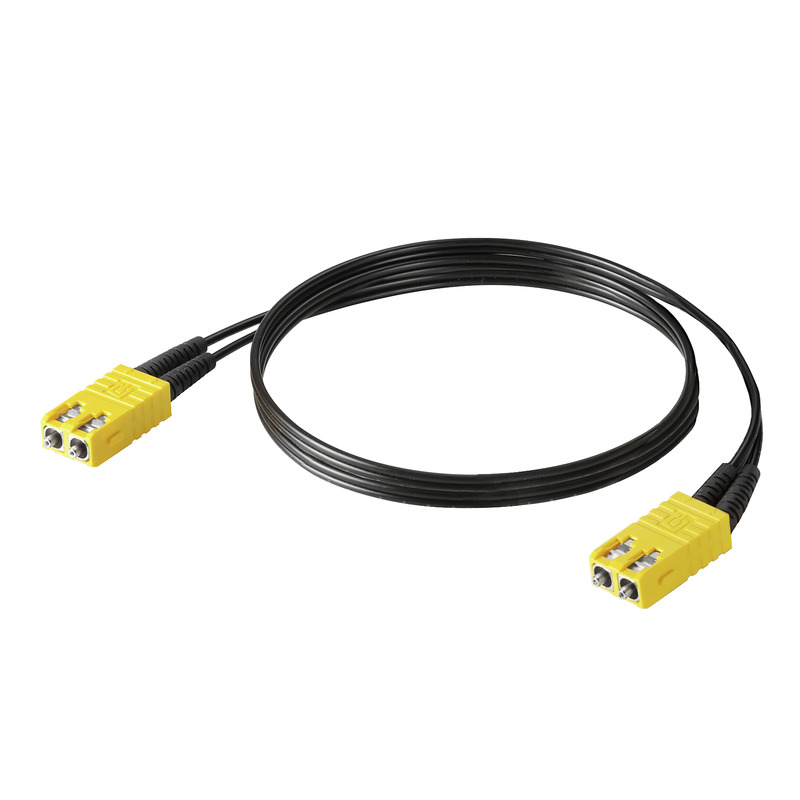

Connecting line, PROFINET, SCRJ IP 20, SCRJ IP 20, 980 µm, 10 mIE-FPOZ2EE0010MSJ0SJ0-X
Weidmuller 1273430100 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Approvals
- ROHS
- Conform
Cable Structure
- Cable layout
- ZIPCORD
- Core diameter
- 980 µm
- Insulation
- PE
- Number of wires
- 2
- Sheath diameter
- 2.2*4.5 mm
- Sheathing colour
- black
Classifications
- eClass 10.0
- 27-06-10-03
- eClass 9.0
- 27-06-10-03
- eClass 9.1
- 27-06-10-03
- ETIM 6.0
- EC002607
- ETIM 7.0
- EC002607
Dimensions And Weights
- Length
- 10 m
- Length (inches)
- 0.394 inch
- Net weight
- 98 g
Fibre-Optic
- Attenuation
- ≤ 160 dB/km at 650 nm
- Bandwidth
- ≥ 100 MHz*km at 650 nm
- Fibre type
- POF
- Insertion loss
- ≤ 1.0 dB
Mechanical And Material Properties Of Cable
- Bending cycles
- 10.000
- Halogen
- No
- Min. bending radius, once only
- 25 mm
- Min. bending radius, repetitive
- 25 mm
- Pulling force
- ≤ 160 N
Plug
- Connector left
- SCRJ IP 20
- Connector right
- SCRJ IP 20
Temperatures
- Operating temperature
- -20 °C...80 °C
- Operating temperature, max.
- 80 °C
- Operating temperature, min.
- -20 °C
