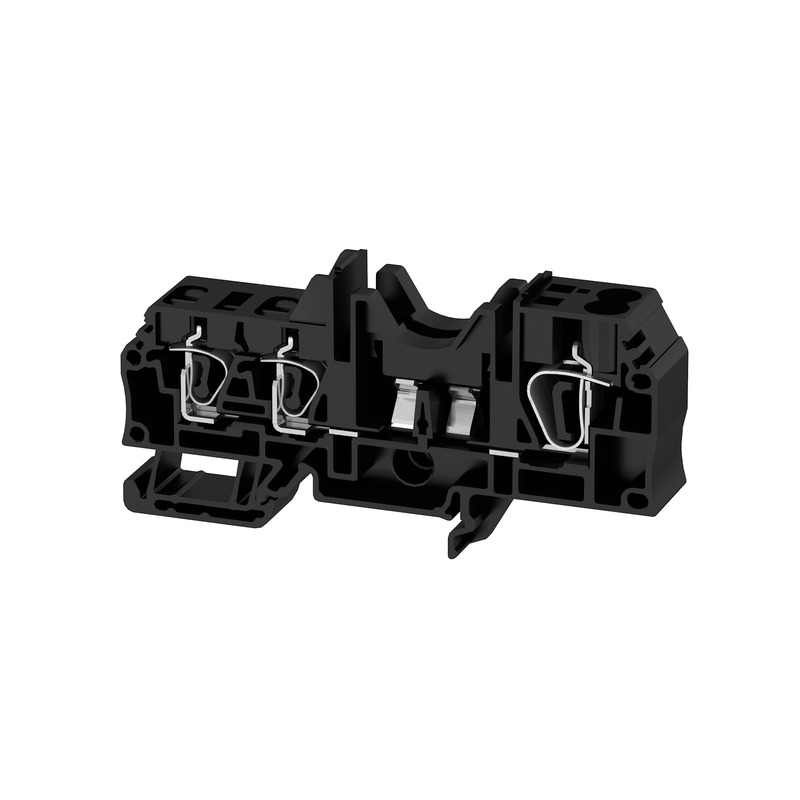

Weidmuller 1265990000
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Z-series, Fuse terminal, Rated cross-section: 6 mm², Tension-clamp connectionZSI 2X6/4X2.5
Weidmuller 1265990000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Additional Technical Data
- Type of mounting
- Snap-on
Approvals
- Approvals
- CSA, cURus, EAC
- ROHS
- Conform
- UL File Number Search
- E60693
Classifications
- eClass 10.0
- 27-14-11-16
- eClass 9.0
- 27-14-11-16
- eClass 9.1
- 27-14-11-16
- ETIM 6.0
- EC000899
- ETIM 7.0
- EC000899
Conductors For Clamping (Additional Connection)
- Blade size, additional connection
- 0.6 x 3.5 mm
- Clamping range, further connection, max.
- 4 mm²
- Clamping range, further connection, min.
- 0.5 mm²
- Conductor cross-section, flexible, further connection, min.
- 0.5 mm²
- Conductor cross-section, flexible plus plastic collar DIN 46228/1, further connection, max.
- 2.5 mm²
- Conductor cross-section, flexible plus plastic collar DIN 46228/1, further connection, min.
- 0.5 mm²
- Connection direction
- top
- Connection type, additional connection
- Tension-clamp connection
- Cross-section for connected wire, AWG, additional connection, max.
- AWG 12
- Cross-section for connected wire, AWG, additional connection, min.
- AWG 26
- Cross-section for connected wire, flexible, further connection, max.
- 4 mm²
- Cross-section for connected wire, solid-core, further connection, max.
- 4 mm²
- Cross-section for connected wire, solid-core, further connection, min.
- 0.5 mm²
- Number of connections, additional connection
- 4
- Rated cross-section, further connection
- 2.5 mm²
- Stripping length , additional connection
- 10 mm
Conductors For Clamping (Rated Connection)
- Blade size
- 0.8 x 4.0 mm
- Clamping range, max.
- 10 mm²
- Clamping range, min.
- 0.5 mm²
- Connection cross-section, stranded, max.
- 6 mm²
- Connection cross-section, stranded, min.
- 0.5 mm²
- Connection direction
- top
- Gauge to IEC 60947-1
- A5
- Number of connections
- 2
- Stripping length
- 10 mm
- Type of connection
- Tension-clamp connection
- Wire connection cross section, finely stranded, max.
- 6 mm²
- Wire connection cross-section, finely stranded, min.
- 0.5 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
- 6 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
- 0.5 mm²
- Wire connection cross-section, solid core, max.
- 10 mm²
- Wire connection cross-section, solid core, min.
- 0.5 mm²
Csa Rating Data
- Certificate No. (CSA)
- 200039-1152829
- Current size B (CSA)
- 23 A
- Current size C (CSA)
- 23 A
- Voltage size B (CSA)
- 600 V
- Voltage size C (CSA)
- 600 V
- Wire cross section max. (CSA)
- 8 AWG
- Wire cross section min. (CSA)
- 20 AWG
Dimensions And Weights
- Depth
- 47 mm
- Depth (inches)
- 1.85 inch
- Depth including DIN rail
- 47.5 mm
- Height
- 93 mm
- Height (inches)
- 3.661 inch
- Net weight
- 35.1 g
- Width
- 16 mm
- Width (inches)
- 0.63 inch
Fuse Terminals
- Operating voltage, max.
- 250 V
Material Data
- Colour
- black
- Material
- Wemid
- UL 94 flammability rating
- V-0
Rating Data
- Pollution severity
- 3
- Power loss in accordance with IEC 60947-7-x
- 1.31 W
- Rated cross-section
- 6 mm²
- Rated current
- 57 A
- Rated impulse withstand voltage
- 6 kV
- Rated voltage
- 250 V
- Rated voltage to adjoining terminal
- 500 V
- Volume resistance according to IEC 60947-7-x
- 0.78 mΩ
Safety Note
- Safety notice
- Safety Information
System Specifications
- End cover plate required
- Yes
- Levels cross-connected internally
- No
- N-function
- No
- Number of clamping points per level
- 3
- Number of levels
- 1
- Number of potentials
- 1
- Number of potentials per tier
- 1
- PE connection
- No
- PE function
- No
- PEN function
- No
- Rail
- TS 35
- Version
- Tension-clamp connection, Without LED, for plug-in cross-connector, One end without connector
Temperatures
- Continuous operating temp., max.
- 120 °C
- Continuous operating temp., min.
- -50 °C
- Storage temperature
- 10 °C...40 °C
- Storage temperature, max.
- 40 °C
- Storage temperature, min.
- 10 °C
Ul Rating Data
- Certificate No. (cURus)
- E60693
- Current size B (cURus)
- 20 A
- Current size C (cURus)
- 20 A
- Current size D (cURus)
- 5 A
- Voltage size B (cURus)
- 600 V
- Voltage size C (cURus)
- 600 V
- Voltage size D (cURus)
- 600 V
- Wire cross section max. (cURus)
- 8 AWG
- Wire cross section min. (cURus)
- 20 AWG
