Description

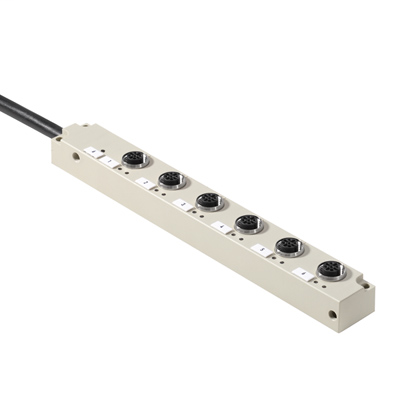

Sensor-actuator passive distributor, M12, Fixed cable version, 5 m, YesSAI-6-F 4P M12 L 5M
Weidmuller 1265920000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Approvals
- Approvals
- cURus
- ROHS
- Conform
- UL File Number Search
- E92202
Classifications
- eClass 10.0
- 27-44-01-08
- eClass 9.0
- 27-44-01-08
- eClass 9.1
- 27-44-01-08
- ETIM 6.0
- EC002585
- ETIM 7.0
- EC002585
Connection Data
- Distributor outlet
- Fixed cable version
Dimensions And Weights
- Net weight
- 350 g
Electrical Data
- Current per signal
- 2 A
- Max. current-carrying capacity per slot
- 3 A
- Rated voltage, max.
- 30 V
- Rated voltage, min.
- 10 V
- Total current
- 9 A
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
General Technical Data
- Connection thread
- M12
- Fire behaviour
- V-0
- LED
- Yes
- Number of contact sockets
- 6
- Number of poles
- 4
- Pollution severity
- 3
- Protection degree
- IP68
Material Data
- Contact carrier material
- PBT (UL 94 V0)
- Contact material
- CuZn
- Contact surface
- Gold-plated
- Housing colour
- grey, RAL 7032
- Housing main material
- PA 6 GF
- Screw socket
- Nickel-plated CuZn
Standards
- Certificate No. (cURus)
- E92202
Technical Data Cable
- Bending cycles
- 2 Mio
- Bending radius, min., moving
- 10 x cable diameter
- Cable length
- 5 m
- Colour coding
- red, pink, green, grey, yellow, brown, blue, Green/yellow, white
- Halogen
- No
- Number of poles
- 4
- O.D.
- 7.8 mm
- Sheathing colour
- black
- Sheath material
- PUR
- Shielded
- No
- Suitable for cable carriers
- Yes
- Wire cross section
- 6 x 0.34 mm² + 3 x 1.0 mm²
Temperatures
- Operating temperature
- -20 - 80°C
- Operating temperature, max.
- 80 °C
- Operating temperature, min.
- -20 °C
