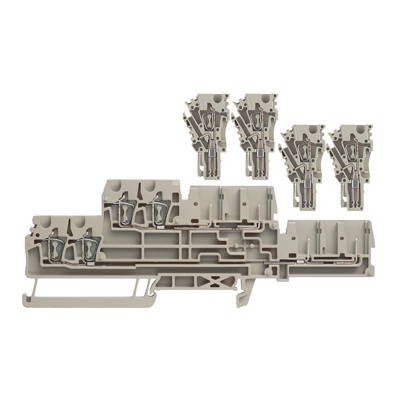

Weidmuller 1259120000
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Weidmuller 1259120000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Additional Technical Data
- Installation advice
- Direct mounting
- Type of mounting
- Snap-on
Approvals
- Approvals
- CE
- ROHS
- Conform
Classifications
- eClass 6.2
- 27-14-11-20
- eClass 7.1
- 27-14-11-20
- eClass 8.1
- 27-14-11-26
- eClass 9.0
- 27-14-11-26
- eClass 9.1
- 27-14-11-20
- ETIM 4.0
- EC000902
- ETIM 5.0
- EC000902
- ETIM 6.0
- EC000897
Conductors For Clamping (Additional Connection)
- Connection type, additional connection
- Plug-in connection
- Number of connections, additional connection
- 4
Conductors For Clamping (Rated Connection)
- Blade size
- 0.6 x 3.5 mm
- Clamping range, rated connection, max.
- 4 mm²
- Clamping range, rated connection, min.
- 0.13 mm²
- Connection direction
- top
- Cross-section for connected conductor, finely stranded with wire-end ferrules and plastic collars DIN 46228/4, rated connection, min.
- 0.5 mm²
- Gauge to IEC 60947-1
- A2
- Number of connections
- 8
- Stripping length
- 10 mm
- Type of connection
- Tension clamp connection
- Wire connection cross section, finely stranded, max.
- 4 mm²
- Wire connection cross-section, finely stranded, min.
- 0.5 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules and plastic collars DIN 46228/4, rated connection, max.
- 2.5 mm²
- Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, rated connection, max.
- 2.5 mm²
- Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, rated connection, min.
- 0.5 mm²
- Wire connection cross section, solid core max. rated connection
- 4 mm²
- Wire connection cross section, solid core, min. rated connection
- 0.5 mm²
- Wire connection cross section, stranded, rated connection, max.
- 4 mm²
- Wire connection cross section, stranded, rated connection, min.
- 0.5 mm²
Dimensions And Weights
- Depth
- 50.5 mm
- Depth (inches)
- 1.988 inch
- Depth including DIN rail
- 52.5 mm
- Height
- 145 mm
- Height (inches)
- 5.709 inch
- Net weight
- 21.96 g
- Width
- 5.1 mm
- Width (inches)
- 0.201 inch
General Ordering Data
- Available until
- 2017-03-18
- Delivery status
- This article will no longer be available in the future.
- GTIN (EAN)
- 4050118053067
- Order No.
- 1259120000
- Qty.
- 50 pc(s).
- Type
- ZDT 2.5/8AN/4
- Version
- Z-series, Double-tier terminal, Rated cross-section: 2.5 mm², Tension clamp connection, Direct mounting
Material Data
- Colour
- Dark Beige
- Material
- Wemid
- UL 94 flammability rating
- V-0
Rating Data
- Current at maximum wires
- 24 A
- Max. voltage of clamp support & pluggable system
- 690 V
- Pollution severity
- 3
- Rated cross-section
- 2.5 mm²
- Rated current
- 24 A
- Rated impulse withstand voltage
- 6 kV
- Rated voltage
- 500 V
- Standards
- IEC 61984, In accordance with IEC 60947-7-1
- Volume resistance according to IEC 60947-7-x
- 2.66 mΩ
Safety Note
- Safety notice
- Safety Information
System Specifications
- Mounting rail
- TS 35
- No. of clamping points per level
- 4
- Number of levels
- 2
- PE connection
- No
- Version
- 4 tension-clamp connections - 4 plug-in connections, pluggable
Temperatures
- Continuous operating temp., max.
- 120 °C
- Continuous operating temp., min.
- -50 °C
