Description

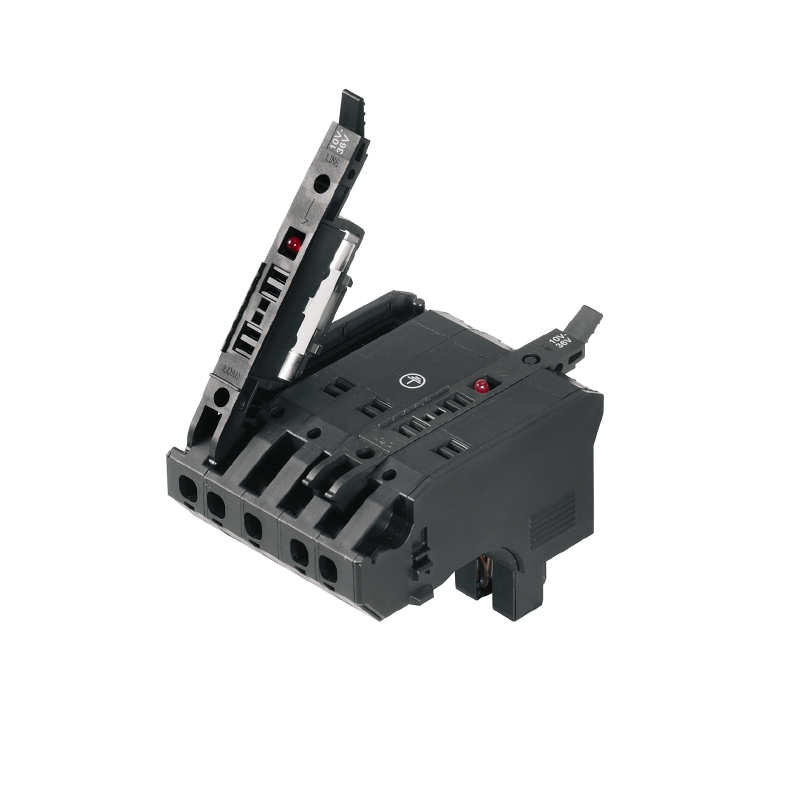

FieldPower®, Plug-in connector, PUSH IN, 0.5 mm² - 4 mm², Number of poles: 5PTSI 4/LD 36V AC/DC
Weidmuller 1252210000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Approvals
- ROHS
- Conform
Clamping Capacity, Push-In Connection
- Blade size, PUSH IN connection
- 3.0 x 0.5 mm
- Clamping range, max. Push-In connection
- 4 mm²
- Clamping range, min. Push-In connection
- 0.5 mm²
- Cross-section for connected wire, flexible, PUSH IN connection, max.
- 4 mm²
- Cross-section for connected wire, flexible, PUSH IN connection, min.
- 0.5 mm²
- Cross-section for connected wire, flexible with wire-end ferrules, 12mm with plastic collar, DIN 46228/1, PUSH IN connection, max.
- 4 mm²
- Cross-section for connected wire, flexible with wire-end ferrules, 12mm with plastic collar, DIN 46228/1, PUSH IN connection, min.
- 0.5 mm²
- Cross-section for connected wire, flexible with wire-end ferrules, 12mm with plastic collar, DIN 46228/4, PUSH IN connection, max.
- 4 mm²
- Cross-section for connected wire, flexible with wire-end ferrules, 12mm with plastic collar, DIN 46228/4, PUSH IN connection, min.
- 0.5 mm²
- Cross-section for connected wire, flexible with wire-end ferrules, 8mm with plastic collar, DIN 46228/1, PUSH IN connection, max.
- 4 mm²
- Cross-section for connected wire, flexible with wire-end ferrules, 8mm with plastic collar, DIN 46228/1, PUSH IN connection, min.
- 0.5 mm²
- Cross-section for connected wire, flexible with wire-end ferrules, 8mm with plastic collar, DIN 46228/4, PUSH IN connection, max.
- 4 mm²
- Cross-section for connected wire, flexible with wire-end ferrules, 8mm with plastic collar, DIN 46228/4, PUSH IN connection, min.
- 0.5 mm²
- Cross-section for connected wire, PUSH IN connection, solid, max.
- 4 mm²
- Cross-section for connected wire PUSH IN connection, solid, min.
- 0.5 mm²
- Finely-stranded flexible, max. PUSH IN connection
- 4 mm²
- Finely-stranded flexible, min. PUSH IN connection
- 0.5 mm²
- Number of poles
- 5
- Stripping length, PUSH IN connection
- 12 mm
Classifications
- eClass 10.0
- 27-44-02-92
- eClass 9.0
- 27-44-02-92
- eClass 9.1
- 27-44-03-90
- ETIM 6.0
- EC002943
- ETIM 7.0
- EC002943
Dimensions And Weights
- Net weight
- 115 g
General Information #96 Connectors
- Can be coded
- Yes, Coded on PE
- Cartridge fuse
- 6.3 x 32 mm (1/4 x 1 1/4")
- Colour of insulating material
- black
- Conductor outlet direction
- 90°
- Continuous operating temp., max.
- 120 °C
- Continuous operating temp., min.
- -50 °C
- Failure indicator
- Red LED
- Number of connections / pole
- 1
- Number of poles
- 5
- Plug insulation material
- PA GF
- Test point
- 2 mm
- Type of mounting
- Plugged
- UL 94 flammability rating
- V-0
- Wire connection method
- PUSH IN
Rated Data Acc. To Iec
- Rated cross-section
- 4 mm²
- Rated current
- 12 A
- Rated impulse withstand voltage
- 6 kV
- Rated voltage
- 36 V
- Standards
- IEC 60947-7-3
Temperatures
- Continuous operating temp., max.
- 120 °C
- Continuous operating temp., min.
- -50 °C
