Description

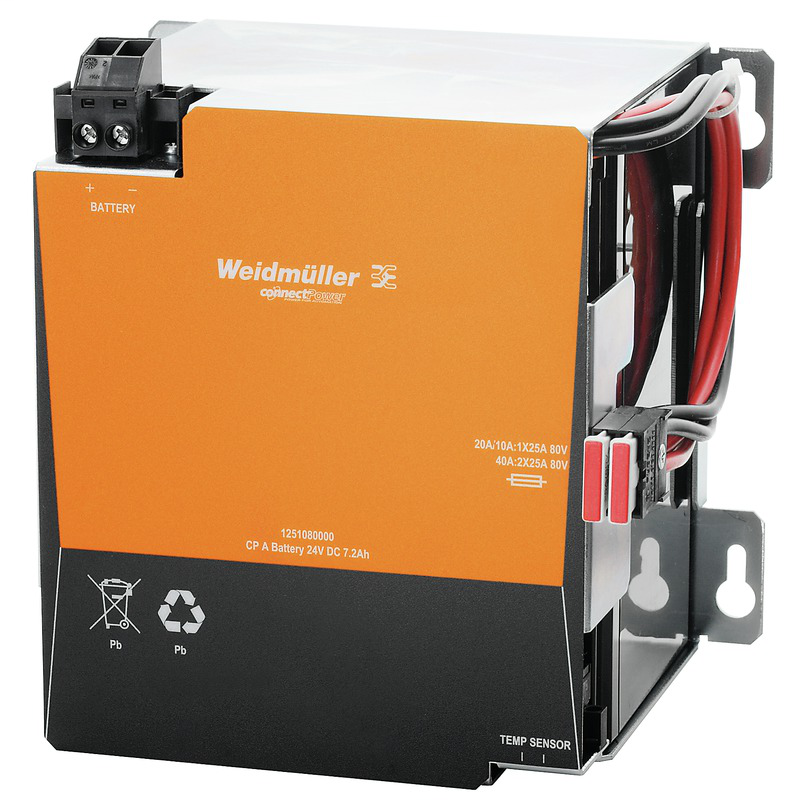

BatteryCP A BATTERY 24V DC7.2AH
Weidmuller 1251080000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Approvals
- Approvals
- CULUS, DNV GL, EAC
- ROHS
- Conform
- UL File Number Search
- E349959
Classifications
- eClass 10.0
- 27-04-06-92
- eClass 9.0
- 27-04-06-92
- eClass 9.1
- 27-04-92-01
- ETIM 6.0
- EC002850
- ETIM 7.0
- EC002850
Connection Data (Input)
- Conductor cross-section, AWG/kcmil , max.
- 6
- Conductor cross-section, AWG/kcmil , min.
- 22
- Conductor cross-section, flexible , min.
- 0.5 mm²
- Conductor cross-section, rigid , max.
- 16 mm²
- Conductor cross-section, rigid , min.
- 0.2 mm²
- Tightening torque, max.
- 1.5 Nm
- Tightening torque, min.
- 1.2 Nm
- Wire connection cross section, flexible (input), max.
- 16 mm²
Connection Data (Output)
- Conductor cross-section, AWG/kcmil , max.
- 6
- Conductor cross-section, AWG/kcmil , min.
- 22
- Conductor cross-section, flexible , max.
- 16 mm²
- Conductor cross-section, flexible , min.
- 0.5 mm²
- Conductor cross-section, rigid , max.
- 16 mm²
- Conductor cross-section, rigid , min.
- 0.2 mm²
- Number of terminals
- 2 (+ / -)
- Tightening torque, max.
- 1.5 Nm
- Tightening torque, min.
- 1.2 Nm
Connection Data (Signal)
- Number of terminals
- 2
- Wire connection cross-section, flexible (signal), max.
- 1.5 mm²
- Wire connection cross-section, flexible (signal), min.
- 0.2 mm²
- Wire connection method
- Pluggable screw connection
- Wire cross-section, AWG/kcmil , max.
- 16
- Wire cross-section, AWG/kcmil , min.
- 28
- Wire cross-section, solid , max.
- 1.5 mm²
- Wire cross-section, solid , min.
- 0.2 mm²
Dimensions And Weights
- Depth
- 134 mm
- Depth (inches)
- 5.276 inch
- Height
- 155 mm
- Height (inches)
- 6.102 inch
- Net weight
- 6,200 g
- Width
- 162 mm
- Width (inches)
- 6.378 inch
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
General Data
- Battery type
- Maintenance-free AGM lead-acid battery
- Latest commissioning
- 9 months
- Max. perm. air humidity (operational)
- 5 %…95 % RH
- Operating life
- 9...12 years at 20°C
- Operating temperature
- 0 °C...40 °C
- Protection degree
- IP20
- Series switching capability
- No
- Shock wall acc. to IEC 68227
- 30 g
- Vibration DIN rail/wall in accordance with IEC 68-2-6
- / 0.7 g
Input
- Charging current, max.
- 1.08 A
- Nominal capacity
- 7.2 Ah
- Rated input voltage
- 24 V DC
Insulation Coordination
- Protection class
- III, with no ground connection, for SELV
Operating Interfaces And Control Inputs
- Temperature probe
- NTC 100 kΩ
Output
- Buffer time 10A
- 26.5 min
- Buffer time 20A
- 11.5 min
- Buffer time 40A
- 5 min
- Output current, max.
- 50 A
- Overload and short circuit protection
- 2x25 A fuse
- Parallel connection option
- Yes
- Protection against inverse voltage
- Yes
- Temperature probe
- NTC 100 kΩ
Ratings Iecex/Atex/Cul
- Certificate no. (cULus)
- E349959
Temperatures
- Ambient temperature
- 0°...+40°C (Charging); -15°…+50°C (Discharging)
- Operating temperature
- 0 °C...40 °C
- Operating temperature, max.
- 40 °C
- Operating temperature, min.
- 0 °C
- Storage temperature
- -15 °C...40 °C
- Storage temperature, max.
- 40 °C
- Storage temperature, min.
- -15 °C
