Description

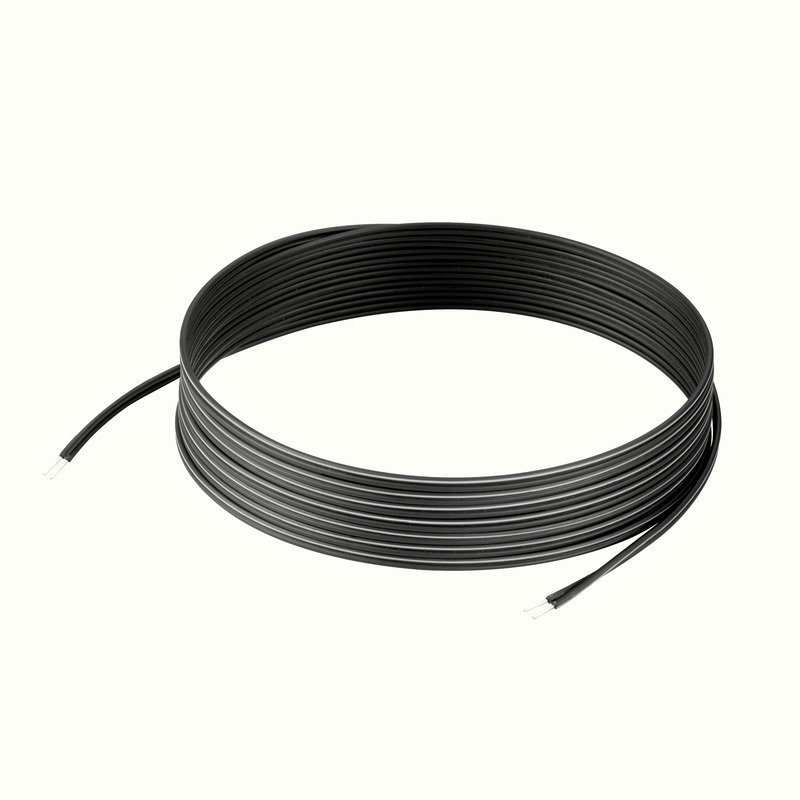

Connecting line, ZIPCORD, 980 µm, Products sold by meter, from 50 mIE-FPOZ2EE-MW
Weidmuller 1242820000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Cable Structure
- Cable layout
- ZIPCORD
- Core diameter
- 980 µm
- Insulation
- PE
- Number of wires
- 2
- Sheath diameter
- 2.2*4.5 mm
- Sheathing colour
- black
Classifications
- eClass 10.0
- 27-06-18-03
- eClass 9.0
- 27-06-18-03
- eClass 9.1
- 27-06-90-90
- ETIM 6.0
- EC000034
- ETIM 7.0
- EC000034
Dimensions And Weights
- Net weight
- 8 g
Fibre-Optic
- Attenuation
- ≤ 160 dB/km at 650 nm
- Bandwidth
- ≥ 100 MHz*km at 650 nm
- Fibre type
- POF
Mechanical And Material Properties Of Cable
- Bending cycles
- 10.000
- Halogen
- No
- Min. bending radius, once only
- 25 mm
- Min. bending radius, repetitive
- 25 mm
- Pulling force
- ≤ 160 N
Temperatures
- Installation temperature
- -5 °C...50 °C
- Operating temperature
- -55 °C...85 °C
- Operating temperature, max.
- 85 °C
- Operating temperature, min.
- -55 °C
- Storage temperature
- -55 °C...85 °C
- Storage temperature, max.
- 85 °C
- Storage temperature, min.
- -55 °C
