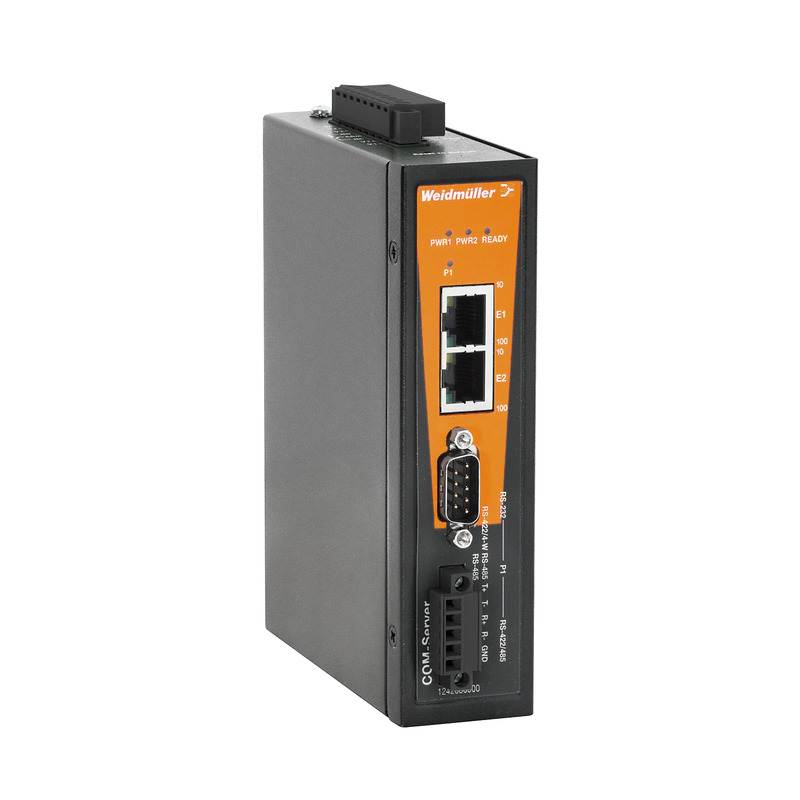

Weidmuller 1242080000
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Serial / Ethernet converter, 2x RJ45, 1x DB9 for RS-232, 1x terminal block for RS-422/485, IP30, 0 °C...60 °CIE-CS-2TX-1RS232/485
Weidmuller 1242080000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Approvals
- Approvals
- CE, CULUS, CULUSEX, DEMKOATEX, EAC, KOREANCERT
- ROHS
- Conform
- UL File Number Search
- E141197
Classifications
- ETIM 6.0
- EC000310
- ETIM 7.0
- EC000310
Dimensions And Weights
- Depth
- 105 mm
- Depth (inches)
- 4.134 inch
- Height
- 140 mm
- Height (inches)
- 5.512 inch
- Net weight
- 475 g
- Width
- 36 mm
- Width (inches)
- 1.417 inch
Emc Conformity And Approvals
- EMC standards
- FCC Part 15 Subpart B Class A, EN 55022 Class A, EN 61000-4-2 (ESD), Stage 3, EN 61000-4-3 (RS), Stage 3, EN 61000-4-4 (EFT), level 4, EN 61000-4-5 (Surge), Stage 3, EN 61000-4-6 (CS), Stage 3, EN 61000-4-8, EN 61000-4-11
- Explosive risk zone
- UL/cUL, Class I, Division 2, Groups A, B, C and D, ATEX Zone 2 Ex nA nC IIC T3 Gc
- Free fall
- According to IEC 60068-2-32
- Security
- UL508
- Shock
- according to IEC 60068-2-27
- Vibration
- according to IEC 60068-2-6
Environmental Conditions
- Humidity
- 5 to 95 % (non-condensing)
- Operating temperature, max.
- 60 °C
- Operating temperature, min.
- 0 °C
- Storage temperature, max.
- 85 °C
- Storage temperature, min.
- -40 °C
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Guarantee
- Time interval
- 5 years
Interfaces
- Ethernet cable protection
- 1 kV (Level 2) surge protection
- Ethernet ports
- 2
- Interface standards
- RS-232/422/485
- Magnetic isolation protection
- 1.5 kV built-in
- RJ45 ports
- 10/100BaseT(X), Auto MDI/MDI-X port
- RS-485 data direction control
- ADDC® (automatic data direction control)
- Serial cable protection
- 15 kV ESD protection for all signals, 1 kV (Level 2) surge protection
- Serial port
- DB9 RS-232, Terminal block for RS-422/485
- Serial ports
- 1
Mtbf
- Database
- Telcordia (Bellcore), GB
- MTBF
- 262,805 hrs
Power Supply
- Connection type
- 1 removable 8-pole terminal block
- Current consumption
- 0.220 A at 12 V DC, 0.110 A at 24 V DC
- Supply voltage, max.
- 48 V DC
- Supply voltage, min.
- 12 V DC
- Voltage supply
- 24 V DC, 2 redundant inputs
Reliability
- Alarm function
- Built-in buzzer and RTC
- Auto restart on failure
- Built-in Watchdog Timer (WDT)
Serial Communication Parameters
- Baud rate
- 50 bit/s to 921.6 kbit/s
- Data bits
- 5, 6, 7, 8
- Flow control
- RTS/CTS and DTR/DSR (RS-232), XON/XOFF
- Parity
- none, straight, odd, Space, Mark
- Stop bits
- 1, 1.5, 2
Serial Signals
- RS-232
- TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
- RS-422
- TxD+, TxD-, RxD+, RxD-, GND
- RS-485 2-wire
- Data+, Data-, GND
- RS-485 4-wire
- TxD+, TxD-, RxD+, RxD-, GND
Software
- Configuration options
- Web console, serial console, Telnet console, Windows utility
- Network protocol
- ICMP, IP, TCP, UDP, DHCP, BOOTP, Telnet, Rtelnet, DNS, SNMP, HTTP, SMTP, SNTP, IGMP
- Windows Real COM driver
- Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8 x86/x64, 2012 x64
Technical Data
- Housing main material
- metal
- Protection degree
- IP30
- Type of mounting
- Rail
Technology
- Flow control
- RTS/CTS and DTR/DSR (RS-232), XON/XOFF
