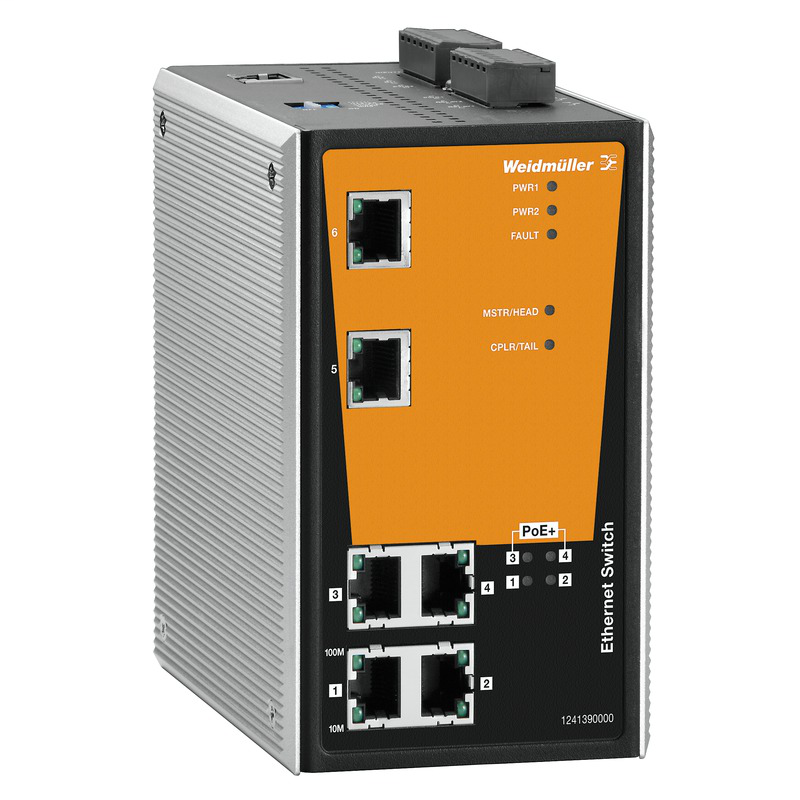

Weidmuller 1241390000

Approvals

• Approvals
  • CULUS, EAC
• ROHS
  • Conform
• UL File Number Search
  • E141197

Classifications

• eClass 10.0
  • 19-17-04-01
• eClass 9.0
  • 19-17-01-06
• eClass 9.1
  • 19-17-01-06
• ETIM 6.0
  • EC000734
• ETIM 7.0
  • EC000734

Dimensions And Weights

• Depth
  • 131.5 mm
• Depth (inches)
  • 5.177 inch
• Height
  • 135 mm
• Height (inches)
  • 5.315 inch
• Net weight
  • 1,270 g
• Width
  • 80 mm
• Width (inches)
  • 3.15 inch

Emc Conformity And Approvals

• EMC standards
  • FCC Part 15, CISPR (EN55022) Class A, EN 61000-4-2 (ESD), Stage 3, EN 61000-4-3 (RS), Stage 3, EN 61000-4-4 (EFT), Stage 3, EN 61000-4-5 (surge voltage), Stage 3, EN 61000-4-6 (CS), Stage 3, EN 61000-4-8
• Free fall
  • According to IEC 60068-2-32
• Shock
  • according to IEC 60068-2-27
• Vibration
  • according to IEC 60068-2-6

Environmental Conditions

• Humidity
  • 5 to 95 % (non-condensing)
• Operating temperature, max.
  • 60 °C
• Operating temperature, min.
  • 0 °C
• Storage temperature, max.
  • 85 °C
• Storage temperature, min.
  • -40 °C

Environmental Product Compliance

• REACH SVHC
  • Lead 7439-92-1

Guarantee

• Time interval
  • 5 years

Interfaces

• Alarm contact
  • 2 relay outputs with a current capacity of 1 A at 24 V DC
• Console port interface
  • RS-232
• Digital inputs
  • 2 inputs with the same ground, isolated+13 To +30 V for logic "1"-30 To +3 V for logic "0"Max. input current: 8 mA
• DIP switch
  • Turbo-Ring, Master, Coupler, Reserve
• LED indicator
  • PWR1, PWR2, FAULT, 10/100M, MSTR/HEAD, CPLR/TAIL, PoE
• Number of ports
  • 2 * RJ45 10/100 BaseT(X), 4 * RJ45 10/100 BaseT(X) PoE+
• PoE pin assignment
  • V-, V-, V+, V+ for pin 1, 2, 3, 6 (endspan, MDI-X alternative A)
• RJ45 ports
  • 10/100BaseT(X), auto negotiation, Full-/half-duplex mode, Auto MDI/MDI-X port

Mtbf

• Database
  • Telcordia (Bellcore), GB
• MTBF
  • 433,000 hrs

Power Supply

• Connection type
  • 2 removable 6-pin terminal blocks
• Current consumption
  • Max 7.8 A at 24 V DC (supports up to 4 ports at 30 watts per PoE port)
• Overload current protection
  • Yes
• Reverse polarity protection
  • Yes
• Voltage supply
  • 24/48 V DC, 20 to 60 V DC, 2 redundant inputs

Switch Characteristics

• IGMP-Groups
  • 256
• MAC table size
  • 8 K
• Max. number of available VLANs
  • 64
• Packet buffer size
  • 1 MBit
• Priority queues
  • 4
• VLAN-ID max
  • 4,094
• VLAN-ID min
  • 1

Technical Data

• Housing main material
  • metal
• Protection degree
  • IP30
• Type of mounting
  • DIN rail, Panel (with optional mounting kit)

Technology

• Flow control
  • IEEE 802.3x flow control, Back pressure flow control
• MIB
  • MIB-II, Ethernet-Like MIB, P-BRIDGE MIB, Q-BRIDGE MIB, Bridge MIB, RSTP MIB, RMON MIB Group 1, 2, 3, 9
• Protocol
  • IGMPv1/v2, GMRP, GVRP, SNMPv1/v2c/v3, DHCP Server/Client, DHCP option 66/67/82, BootP, TFTP, SNTP, SMTP, RARP, RMON, HTTP, HTTPS, Telnet, SSH, Syslog, Modbus/TCP, SNMP Inform, LLDP, IEEE 1588 PTP, IPv6
• Standard
  • IEEE 802.3at/af for Power-over-Ethernet, IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for flow control, IEEE 802.1D for the Spanning Tree protocol, IEEE 802.1w for Rapid STP, IEEE 802.1Q for VLAN tagging, IEEE 802.1p for Class of Service, IEEE 802.1X for authentication, IEEE 802.3ad for port trunk with LACP
