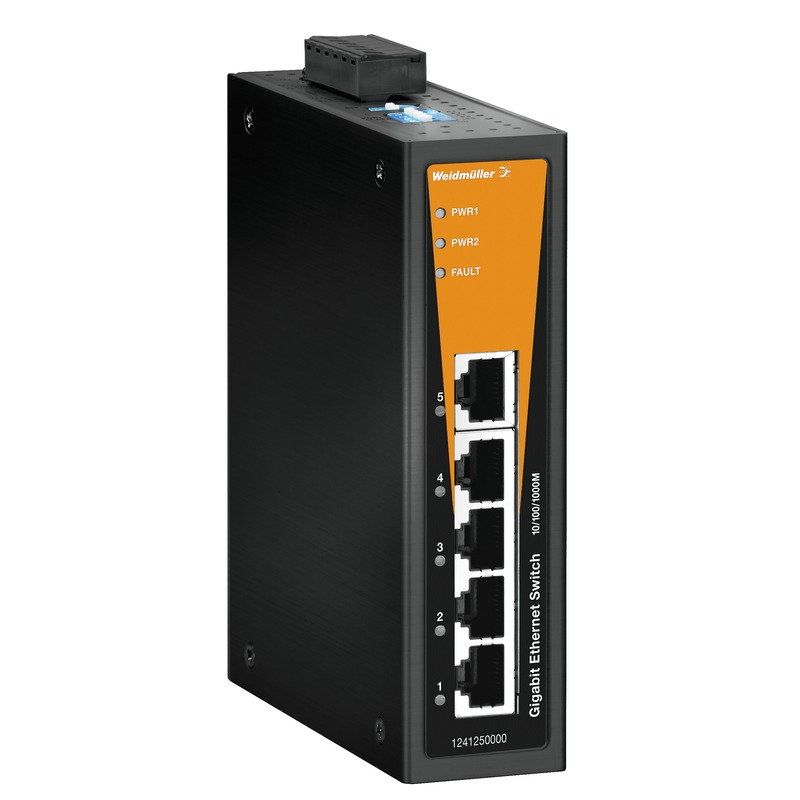

Weidmuller 1241250000
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Network switch, unmanaged, Gigabit Ethernet, Number of ports: 5 * RJ45 10/100/1000BaseT(X), IP30, 0 °C...60 °C
Weidmuller 1241250000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Approvals
- Approvals
- CULUSEX
- CE
- DEMKOATEX
- GERMLLOYD
- EAC
- DETNORVER
- CULUS
- ROHS
- Conform
- UL File Number Search
- E141197
Classifications
- EClass 6.2
- 19-17-01-06
- EClass 7.1
- 19-17-01-06
- EClass 8.1
- 19-17-01-06
- EClass 9.0
- 19-17-01-06
- EClass 9.1
- 19-17-01-06
- ETIM 4.0
- EC002598
- ETIM 5.0
- EC002598
- ETIM 6.0
- EC000734
Dimensions And Weights
- Depth
- 105 mm
- Depth (inches)
- 4.134 inch
- Height
- 130 mm
- Height (inches)
- 5.118 inch
- Net weight
- 290 g
- Weight
- 290 g
- Width
- 35 mm
- Width (inches)
- 1.378 inch
EMC Conformity And Approvals
- EMC standards
- FCC Part 15 Subpart B Class A, EN 55022 Class A, EN 61000-4-2 (ESD), Stage 3, EN 61000-4-3 (RS), Stage 3, EN 61000-4-4 (EFT), Stage 3, EN 61000-4-5 (surge voltage), Stage 3, EN 61000-4-6 (CS), Stage 3
- Explosive risk zone
- UL/cUL, Class I, Division 2, Groups A, B, C and D, ATEX Zone 2 Ex nA nC IIC T4 Gc
- Free fall
- according to IEC 60068-2-32
- Security
- UL508
- Ship use
- DNV, GL
- Shock
- according to IEC 60068-2-27
- Vibration
- according to IEC 60068-2-6
Environmental Conditions
- Humidity
- 5 to 95 % (non-condensing)
- Operating temperature, max.
- 60 °C
- Operating temperature, min.
- 0 °C
- Storage temperature, max.
- 85 °C
- Storage temperature, min.
- -40 °C
General Ordering Data
- Alternative product
- 2435400000
- Available until
- 2016-12-30
- Delivery status
- This article will no longer be available in the future.
- GTIN (EAN)
- 4050118029277
- Order No.
- 1241250000
- Qty.
- 1 pc(s).
- Type
- IE-SW-BL05-5GT
Guarantee
- Time interval
- 5 years
Interfaces
- Alarm contact
- 1 relay output with a current capacity of 1 A at 24 V DC
- DIP switch
- Port surveillance, Broadcast storm protection enable/disable, Enable/disable jumbo frame support
- LED indicator
- PWR1, PWR2, FAULT, 10/100/1000M
- Number of ports
- 5 * RJ45 10/100/1000BaseT(X)
- RJ45 ports
- 10/100/1000BaseT(X), auto negotiation, Full-/half-duplex mode, Auto MDI/MDI-X port
MTBF
- MTBF
- Telcordia (Bellcore), GB
- 478,000 hrs
Power Supply
- Connection type
- 1 removable 6-pin terminal block
- Current consumption
- 0.20 A at 24 V
- Reverse polarity protection
- Available
- Supply voltage
- 12/24/48 V DC, 9.6 to 60 V DC, 2 redundant inputs
Switch Characteristics
- Jumbo frame support
- up to 9.6 KB
- MAC table size
- 8 K
- Packet buffer size
- 1,088 Kbit
Technical Data
- Housing main material
- metal
- Protection degree
- IP30
- Type of mounting
- Mounting rail, Panel (with optional mounting kit)
Technology
- Data switching
- Store and Forward
- Flow control
- IEEE 802.3x flow control, Back pressure flow control
- Standard
- IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X) und 100BaseFX, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3x for flow control
