Description

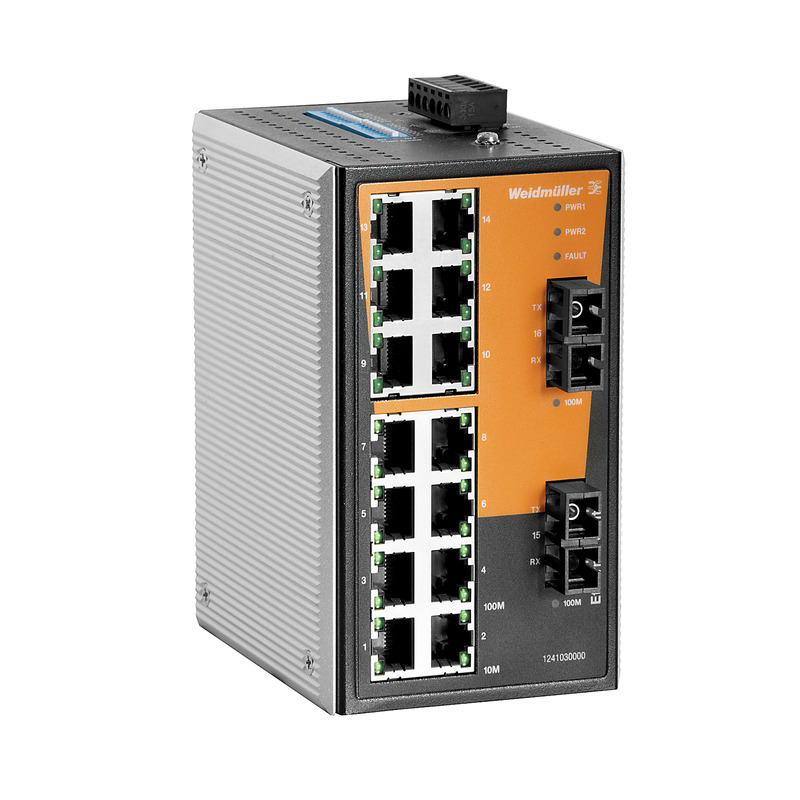

Network switch, unmanaged, Fast Ethernet, Number of ports: 14x RJ45, 2 * SC Multi-mode, IP30, 0 °C...60 °CIE-SW-VL16-14TX-2SC
Weidmuller 1241030000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Approvals
- Approvals
- CE, CULUS, CULUSEX, DEMKOATEX, DNV GL, EAC, KOREANCERT
- ROHS
- Conform
- UL File Number Search
- E141197
Classifications
- eClass 10.0
- 19-17-04-02
- eClass 9.0
- 19-17-01-06
- eClass 9.1
- 19-17-01-06
- ETIM 6.0
- EC000734
- ETIM 7.0
- EC000734
Dimensions And Weights
- Depth
- 105 mm
- Depth (inches)
- 4.134 inch
- Height
- 135 mm
- Height (inches)
- 5.315 inch
- Net weight
- 1,293 g
- Width
- 80.5 mm
- Width (inches)
- 3.169 inch
Emc Conformity And Approvals
- EMC standards
- EN 55032, EN 55024, CISPR 32, FCC Part 15 Subpart B Class A, IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8
- Explosive risk zone
- UL/cUL, Class I, Division 2, Groups A, B, C and D, ATEX Zone 2 Ex nA nC IIC T4 Gc
- Free fall
- According to IEC 60068-2-32
- Security
- UL508, UL60950-1, EN60950-1
- Ship use
- DNV-GL
- Shock
- according to IEC 60068-2-27
- Vibration
- according to IEC 60068-2-6
Environmental Conditions
- Humidity
- 5 to 95 % (non-condensing)
- Operating temperature, max.
- 60 °C
- Operating temperature, min.
- 0 °C
- Storage temperature, max.
- 85 °C
- Storage temperature, min.
- -40 °C
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Fibre Optic 100Basefx
- Link budget multimode
- 12 dB
- Max. TX multi-mode
- -10 dBm
- Min. TX multi-mode
- -20 dBm
- Receive sensitivity multi-mode
- -32 dBm
- System reserve multi-mode
- -6 dBm
- Typical distances multi-mode
- 5 km (50/125 μm, multi-mode cable), 4 km (62.5/125 μm multi-mode cable)
- Wavelength multi-mode
- 1,300 nm
Guarantee
- Time interval
- 5 years
Interfaces
- DIP switch
- Port surveillance, Broadcast storm protection enable/disable
- Fibre-optic ports
- 100BaseFX ports (SC connector), Multimode
- LED indicator
- PWR1, PWR2, FAULT, 10/100M (TP-Port), 100M (fibre-optic port).
- Number of ports
- 14x RJ45, 2 * SC Multi-mode
- RJ45 ports
- 10/100BaseT(X), auto negotiation, Full-/half-duplex mode, Auto MDI/MDI-X port
- Signalling contact
- 1 relay output with a current capacity of 1 A at 24 V DC
Mtbf
- Database
- MIL-HDBK-217F, GB 25°C
- MTBF
- 257,000 hrs
Power Supply
- Connection type
- 1 removable 6-pin terminal block
- Current consumption
- 0.44 A at 24 V
- Overload current protection
- 1.6 A
- Reverse polarity protection
- Available
- Supply voltage, max.
- 60 V DC
- Supply voltage, min.
- 9.6 V DC
- Voltage supply
- 12/24/48 V DC, 2 redundant inputs
Switch Characteristics
- Bandwidth backplane
- 3.2 Gbps
- MAC table size
- 4 K
- Packet buffer size
- 1.25 Mbit
Technical Data
- Housing main material
- metal
- Protection degree
- IP30
- Type of mounting
- DIN rail, Panel (with optional mounting kit)
Technology
- Data switching
- Store and Forward
- Flow control
- IEEE 802.3x flow control, Back pressure flow control
- Standard
- IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for flow control
