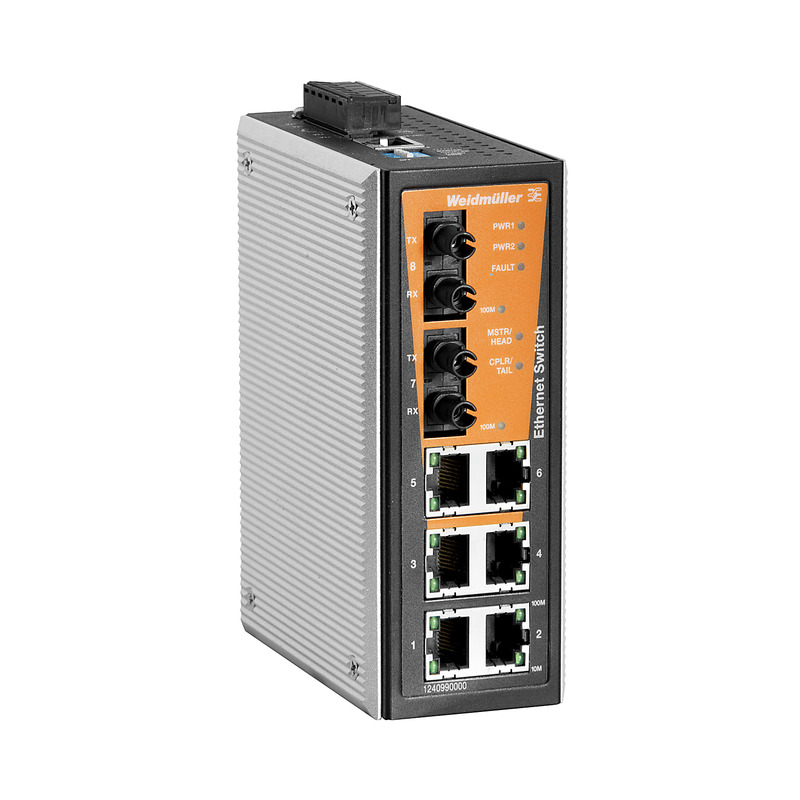

Weidmuller 1240990000

Approvals

• Approvals
  • CE, CULUS, CULUSEX, DEMKOATEX, DNV GL, EAC
• ROHS
  • Conform
• UL File Number Search
  • E230683

Classifications

• eClass 10.0
  • 19-17-04-01
• eClass 9.0
  • 19-17-01-06
• eClass 9.1
  • 19-17-01-06
• ETIM 6.0
  • EC000734
• ETIM 7.0
  • EC000734

Dimensions And Weights

• Depth
  • 105 mm
• Depth (inches)
  • 4.134 inch
• Height
  • 135 mm
• Height (inches)
  • 5.315 inch
• Net weight
  • 890 g
• Width
  • 53.6 mm
• Width (inches)
  • 2.11 inch

Emc Conformity And Approvals

• EMC standards
  • EN 55032, EN 55024, CISPR 32, FCC Part 15 Subpart B Class A, IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8
• Explosive risk zone
  • UL/cUL, Class I, Division 2, Groups A, B, C and D, ATEX Zone 2 Ex nA nC IIC T4 Gc
• Free fall
  • According to IEC 60068-2-32
• Security
  • UL508, UL60950-1, CSA C22.2 No. 60950-1, EN60950-1
• Ship use
  • DNV-GL
• Shock
  • according to IEC 60068-2-27
• Vibration
  • according to IEC 60068-2-6

Environmental Conditions

• Humidity
  • 5 to 95 % (non-condensing)
• Operating temperature, max.
  • 75 °C
• Operating temperature, min.
  • -40 °C
• Storage temperature, max.
  • 85 °C
• Storage temperature, min.
  • -40 °C

Environmental Product Compliance

• REACH SVHC
  • Lead 7439-92-1

Fibre Optic 100Basefx

• Link budget multimode
  • 12 dB
• Max. TX multi-mode
  • -10 dBm
• Min. TX multi-mode
  • -20 dBm
• Receive sensitivity multi-mode
  • -32 dBm
• System reserve multi-mode
  • -6 dBm
• Typical distances multi-mode
  • 5 km (50/125 μm, multi-mode cable), 4 km (62.5/125 μm multi-mode cable)
• Wavelength multi-mode
  • 1,300 nm

Guarantee

• Time interval
  • 5 years

Interfaces

• Alarm contact
  • 1 relay output with a current capacity of 1 A at 24 V DC
• Console port interface
  • RS-232
• DIP switch
  • Turbo-Ring, Master, Coupler, Reserve
• Fibre-optic ports
  • 100BaseFX ports (ST connector), Multimode
• LED indicator
  • PWR1, PWR2, FAULT, MSTR/HEAD, CPLR/TAIL, 10/100M (TP-Port), 100M (fibre-optic port).
• Number of ports
  • 6x RJ45, 2 * ST Multi-mode
• RJ45 ports
  • 10/100BaseT(X), auto negotiation, Full-/half-duplex mode, Auto MDI/MDI-X port

Mtbf

• Database
  • Telcordia (Bellcore), GB
• MTBF
  • 1,102,845 hrs

Power Supply

• Connection type
  • 1 removable 6-pin terminal block
• Current consumption
  • 0.35 A bei 24 V
• Overload current protection
  • Existing
• Reverse polarity protection
  • Available
• Supply voltage, max.
  • 45 V DC
• Supply voltage, min.
  • 12 V DC
• Voltage supply
  • 24 V DC, 2 redundant inputs

Switch Characteristics

• Bandwidth backplane
  • 1.6 Gbps
• IGMP-Groups
  • 256
• MAC table size
  • 8 K
• Max. number of available VLANs
  • 64
• Packet buffer size
  • 1 Mbit
• Priority queues
  • 4
• VLAN-ID max
  • 4,094
• VLAN-ID min
  • 1

Technical Data

• Housing main material
  • metal
• Protection degree
  • IP30
• Type of mounting
  • DIN rail, Panel (with optional mounting kit)

Technology

• Data switching
  • Store and Forward
• Flow control
  • IEEE 802.3x flow control, Back pressure flow control
• MIB
  • MIB-II, Ethernet-Like MIB, P-BRIDGE MIB, Bridge MIB, RSTP MIB, RMON MIB Group 1, 2, 3, 9
• Protocol
  • IGMPv1/v2, GMRP, GVRP, SNMPv1/v2c/v3, DHCP Server/Client, TFTP, SNTP, SMTP, RARP, RMON, HTTP, Telnet, Syslog, DHCP option 66/67/82, BootP, LLDP, PROFINET, EtherNet/IP, Modbus/TCP, IPv6
• Standard
  • IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for flow control, IEEE 802.1D-2004 for the Spanning Tree protocol, IEEE 802.1w for Rapid STP, IEEE 802.1p for Class of Service, IEEE 802.1Q for VLAN tagging
