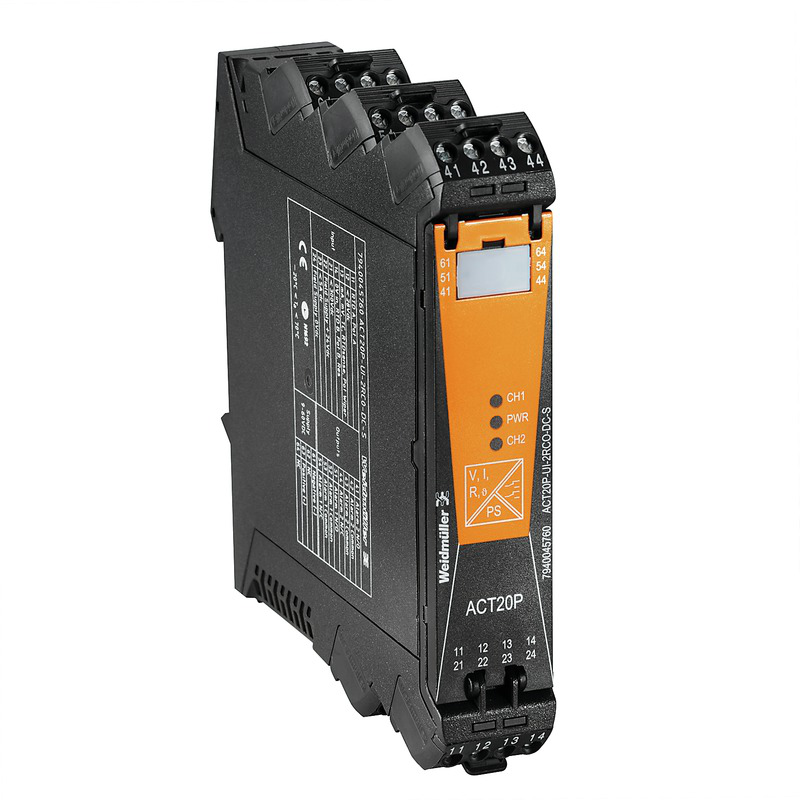

Weidmuller 1238910000

Approvals

• ROHS
  • Conform

Classifications

• eClass 10.0
  • 27-21-01-22
• eClass 9.0
  • 27-21-01-22
• eClass 9.1
  • 27-21-01-22
• ETIM 6.0
  • EC002654
• ETIM 7.0
  • EC002654

Connection Data

• Clamping range, max.
  • 2.5 mm²
• Clamping range, min.
  • 0.5 mm²
• Clamping range, rated connection
  • 2.5 mm²
• Tightening torque, max.
  • 0.6 Nm
• Tightening torque, min.
  • 0.4 Nm
• Type of connection
  • Screw connection
• Wire connection cross section AWG, max.
  • AWG 12
• Wire connection cross section AWG, min.
  • AWG 26

Dimensions And Weights

• Depth
  • 113.6 mm
• Depth (inches)
  • 4.472 inch
• Height
  • 119.2 mm
• Height (inches)
  • 4.693 inch
• Net weight
  • 208 g
• Width
  • 22.5 mm
• Width (inches)
  • 0.886 inch

Environmental Product Compliance

• REACH SVHC
  • Lead 7439-92-1

General Data

• Accuracy
  • < 0.1 % of measuring range
• Cold-junction compensation error
  • ±2.0°C @ -20° C - 70°C
• Configuration
  • With FDT/DTM software, or via 7-segment display, push-buttons and rotary encoder on the device itself
• Galvanic isolation
  • 4-way isolator;, Input to supply ⁄ Alarm 1 ⁄ Alarm 2
• Power consumption
  • ≤ 3.5 W
• Rail
  • TS 35
• Repeat accuracy
  • ± 0.05 % of measuring range final value
• Step response time
  • 450 ms
• Temperature coefficient
  • < 0.02 °C of measuring range / °C
• Voltage supply
  • 90…264 V AC

Input

• Cable-length compensation
  • < ±0.002 Ω per cable resistance Ω
• Influence of the sensor cable resistance
  • 5 Ω @ RTD- Kabel
• Input current
  • configurable, ± 25 mA DC, ±5 A DC
• Input measurement range
  • configurable, Thermocouple type J -100…+1200°C, Thermocouple type K -200…+1370°C, PT100 -200…+850 °C
• Input resistance, current
  • 40 Ω
• Input resistance, voltage
  • 2 MΩ, > 10 MΩ
• Input voltage
  • configurable, ±150 mV DC, ± 600mV DC, ±30 V DC, ±300 V DC
• Number of inputs
  • 1
• Potentiometer
  • 1.2…500 kΩ
• Resistance
  • 0…10 kΩ, 0…12 kΩ, 0…15 kΩ
• Sensor
  • Thermocouples: B, E, J, K, L, N, R, S, T, U, RTD: PT100, PT200, PT1000, Ni120, Cu10, 2-/3-/4-wire
• Sensor supply
  • 0.1 mA / 0.05 mA (depending on measuring range) @ RTD cable

Insulation Coordination

• EMC standards
  • EN 61326-1
• Galvanic isolation
  • 4-way isolator;, Input to supply ⁄ Alarm 1 ⁄ Alarm 2
• Impulse withstand voltage
  • 4 kV (1.2/50 µs)
• Insulation voltage
  • 4 kV (input / output)
• Pollution severity
  • 2
• Rated voltage
  • 300 Veff
• Surge voltage category
  • III

Output (Digital)

• Alarm function
  • configurable, Alarm mode: delay, switch on or switch on/off, Top and bottom limit values, window range, Hysteresis adjustable, auto / manual reset
• Max. switching voltage, AC
  • 240 V
• Max. switching voltage, DC
  • 110 V
• Number of digital outputs
  • 2
• Rated switching current
  • 200mA @ 110Vdc, 6A @ 24Vdc / 240Vac
• Type
  • 2 CO contacts, normal / inverse adjustment, Switching frequency 20 Hz

Product Information

• Product information
  • The devices of the ACT20P-UI-2RCO-XX-x family record current, voltage, potentiometer and temperature sensor signals (mA, A, mV, V, potentiometer, RTD and TC). They have two independent relay outputs which emit an alarm when levels exceed or fall below pre-set limits. Properties Configuration and diagnosis with the FDT/DTM software “WI-Manager”. Manual configuration on the device is performed via the LED display by means of operating buttons and rotary encoders. The dual-channel trip amplifier enables various alarm functions: window alarm, alarm delay, wire break detection, hysteresis and upper / lower limit alarm. The active or passive signal inputs for RTD, TC, potentiometer, voltage and current are fully galvanically isolated. Remote diagnosis: reporting of errors (e.g. cable breaks) via status relay. Operational status and relay status indicated by front panel LEDs. Galvanic 4-way isolation between input, output and supply.

Temperatures

• Humidity
  • 10…90 %, no condensation
• Operating temperature
  • -20 °C...70 °C
• Operating temperature, max.
  • 70 °C
• Operating temperature, min.
  • -20 °C
• Storage temperature
  • -20 °C...70 °C
• Storage temperature, max.
  • 70 °C
• Storage temperature, min.
  • -20 °C

Tender Specification Sheets

• Long specification
  • Universal limit-value monitoring component with relay output andexternal supplyUniversal limit-value monitoring component in 22.5 mm width with external voltage and sensor supply, for monitoring and isolating DC currents +/- 25mA...5 A,DC voltages +/-600 mV... 300 V, 2-/3-/-4-wire RTD sensors , resistors, potentiometersand thermocouple signals according to IEC584.Two relay contacts (CO) are available on the output side.This component is programmed using FDT/DTM software.Add-on housing for TS35 rail mountingDimensions: L/W/H 119/ 22.5/ 113.6 mmScrew connection / Nominal cross-section 2.5 mm2Protection degree: IP 20   Input                         +/-25 mA...5 A DC                                                                            +/- 600 mV...300 V DC                                      PT100, PT1000, Ni100, Ni1000                                      Resistance 0...12 kOhm                                      Potentiometer 0...500 kOhm                                      Thermocouple types B, E, J, K, L, LR, N, R, S, T, U, W3, W5Sensor supply 24 V DC  Output                                             2 x 1 CO (hard gold-plated)                                       240 V AC/ 24 V DC @ 6 ARepeat accuracy        < 0,05 % v. E.  Step response time10...90 %                      < 200 msAuxiliary power                                     90...264 V AC / 120...370 V DCPower loss approx. 3 W @ 240 V ACAmbient temperature range -20 °C...+70 °CIsolation                                 EN 50178 secure 3-way isolation up to 3 kV AC/DC of all circuits against each otherTest voltage                               3 kV input against output against auxiliary powerRated voltage                                         300 V AC/DC at overvoltage category II and pollution degree 2Approvals cULusType                                                             ACT20P-UI-2RCO-AC-S
• Short specification
  • Universal limit-value monitoring component with relay output and external supplyUniversal limit-value monitoring component in 22.5 mm width with external voltage and sensor supply for monitoring and isolating DC currents +/- 25mA...5 A, DC- voltages +/-600 mV... 300 V, 2-/3-/-4-wire RTD sensors, resistors, potentiometers and thermocouple signals, in compliance with IEC584. Two relay contacts (CO) are available on the output side. This component is programmed using FDT/DTM software.
