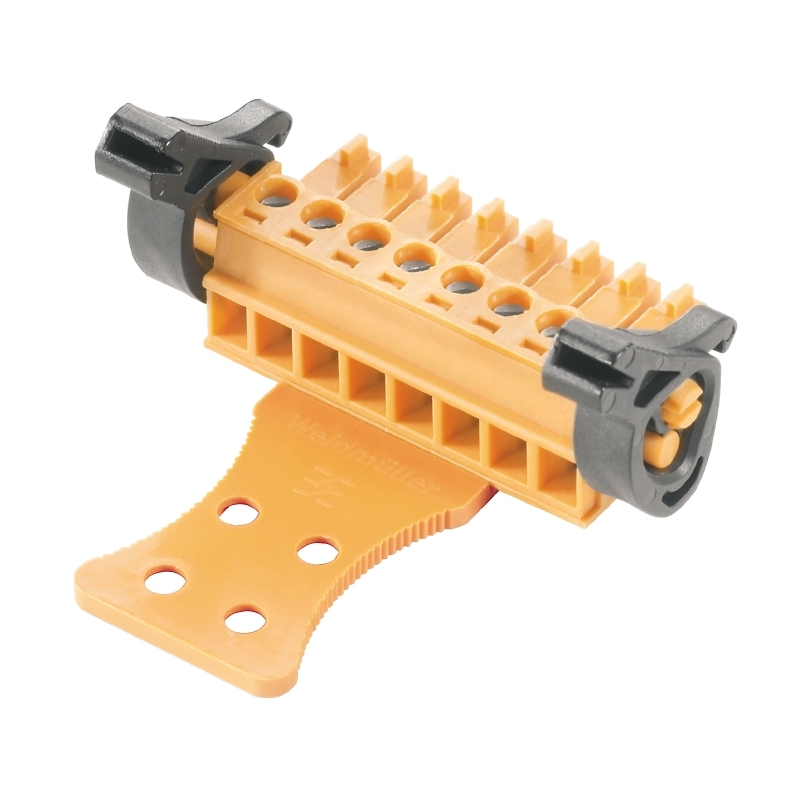

Weidmuller 1236800000

Approvals

• Approvals
  • CURUS
  • EAC
• ROHS
  • Conform
• UL File Number Search
  • E60693

Classifications

• EClass 6.2
  • 27-26-07-04
• EClass 7.1
  • 27-44-04-02
• EClass 8.1
  • 27-44-04-02
• EClass 9.0
  • 27-44-04-02
• EClass 9.1
  • 27-44-04-02
• ETIM 4.0
  • EC002637
• ETIM 5.0
  • EC002637
• ETIM 6.0
  • EC002637

Conductors Suitable For Connection

• Clamping range, rated connection, max.
  • 1.5 mm²
• Clamping range, rated connection, min.
  • 0.08 mm²
• Flexible, max. H05(07) V-K
  • 1.5 mm²
• Flexible, min. H05(07) V-K
  • 0.2 mm²
• Plug gauge acc. to EN 60999 a x b; Ø
  • 2.4 mm x 1.5 mm ; 2.4 mm
• Solid, max. H05(07) V-U
  • 1.5 mm²
• Solid, min. H05(07) V-U
  • 0.2 mm²
• Wire connection cross section AWG, max.
  • AWG 16
• Wire connection cross section AWG, min.
  • AWG 28
• W. plastic collar ferrule, DIN 46228 pt 4, max.
  • 1.5 mm²
• W. plastic collar ferrule, DIN 46228 pt 4, min.
  • 0.2 mm²
• W. wire end ferrule, DIN 46228 pt 1, max.
  • 1.5 mm²
• W. wire end ferrule, DIN 46228 pt 1, min
  • 0.2 mm²

Dimensions And Weights

• Net weight
  • 6.87 g

General Ordering Data

• GTIN (EAN)
  • 4050118022025
• Order No.
  • 1236800000
• Packaging
  • Box
• Product data
  • UL: 300 V / 10 A / AWG 28 - AWG 16
  • IEC: 320 V / 17.5 A / 0.2 - 1.5 mm²
• Qty.
  • 50 pc(s).
• Type
  • BCZ 3.81/06/180LRZE SN OR BX

Material Data

• Colour
  • Orange
• Colour chart (similar)
  • RAL 2000
• Contact material
  • Cu-Leg
• CTI
  • ≥ 550
• Insulating material
  • PA GF
• Insulating material group
  • II
• Insulation resistance
  • ≥ 10
• Max. relative humidity during storage
  • 80 %
• Operating temperature, max.
  • 120 °C
• Operating temperature, min.
  • -50 °C
• Storage temperature, max.
  • 55 °C
• Storage temperature, min.
  • -25 °C
• Temperature range, installation, max.
  • 120 °C
• Temperature range, installation, min.
  • -25 °C
• UL 94 flammability rating
  • V-0

Notes

• IPC conformity
  • The products are developed, manufactured and delivered according to the internationally recognised IPC-A-610 standard, category "permissible". More extensive demands on the products can be evaluated on request.

Rated Data Acc. To CSA

• Rated current (use group B)
  • 8 A
• Rated current (use group C)
  • 8 A
• Rated voltage (Use group B)
  • 300 V
• Rated voltage (Use group C)
  • 50 V
• Wire cross-section, AWG, max.
  • AWG 16
• Wire cross-section, AWG, min.
  • AWG 28

Rated Data Acc. To IEC

• Rated current, max. no. of poles (Ta = 20°C)
  • 17.1 A
• Rated current, max. no. of poles (Ta = 40°C)
  • 15.2 A
• Rated current, min. no. of poles (Ta = 20°C)
  • 17.5 A
• Rated current, min. no. of poles (Ta = 40°C)
  • 17 A
• Rated impulse voltage for surge voltage class/ contamination degree III/3
  • 2.5 kV
• Rated impulse voltage for surge voltage class/ pollution degree II/2
  • 2.5 kV
• Rated impulse voltage for surge voltage class/ pollution degree III/2
  • 2.5 kV
• Rated voltage for surge voltage class / pollution degree II/2
  • 320 V
• Rated voltage for surge voltage class / pollution degree III/2
  • 160 V
• Rated voltage for surge voltage class / pollution degree III/3
  • 160 V
• Short-time withstand current resistance
  • 3 x 1s with 76 A
• Tested acc. to standard
  • IEC 60664-1, IEC 61984

Rated Data Acc. To UL 1059

• Certificate No. (cURus)
  • E60693
• Institute (cURus)
  • icon
• Rated current (use group B)
  • 10 A
• Rated current (use group D)
  • 10 A
• Rated voltage (use group B)
  • 300 V
• Rated voltage (use group D)
  • 300 V
• Reference to approval values
  • Specifications are maximum values, details - see approval certificate.
• Wire cross-section, AWG, max.
  • AWG 16
• Wire cross-section, AWG, min.
  • AWG 28

System Parameters

• Can be coded
  • Yes
• Clamping screw
  • M 2
• Conductor outlet direction
  • 180°
• L1 in inches
  • 0.75 inch
• L1 in mm
  • 19.05 mm
• No. of poles
  • 6
• Packaging
  • Box
• Pin series quantity
  • 1
• Pitch in inches (P)
  • 0.15 inch
• Pitch in mm (P)
  • 3.81 mm
• Plugging cycles
  • 25
• Product family
  • OMNIMATE Signal - series BC/SC 3.81
• Push-in force/pole
  • 0 N
• Rated cross-section
  • 1 mm²
• Screwdriver blade standard
  • DIN 5264
• Stripping length
  • 7 mm
• Tightening torque, max.
  • 0.25 Nm
• Tightening torque, min.
  • 0.2 Nm
• Touch-safe protection acc. to DIN VDE 0470
  • IP 20
• Touch-safe protection acc. to DIN VDE 57 106
  • Safe from finger touch
• Volume resistance
  • 6.00 mΩ
• Wire connection method
  • Clamping yoke connection
