Weidmuller 1234750020
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

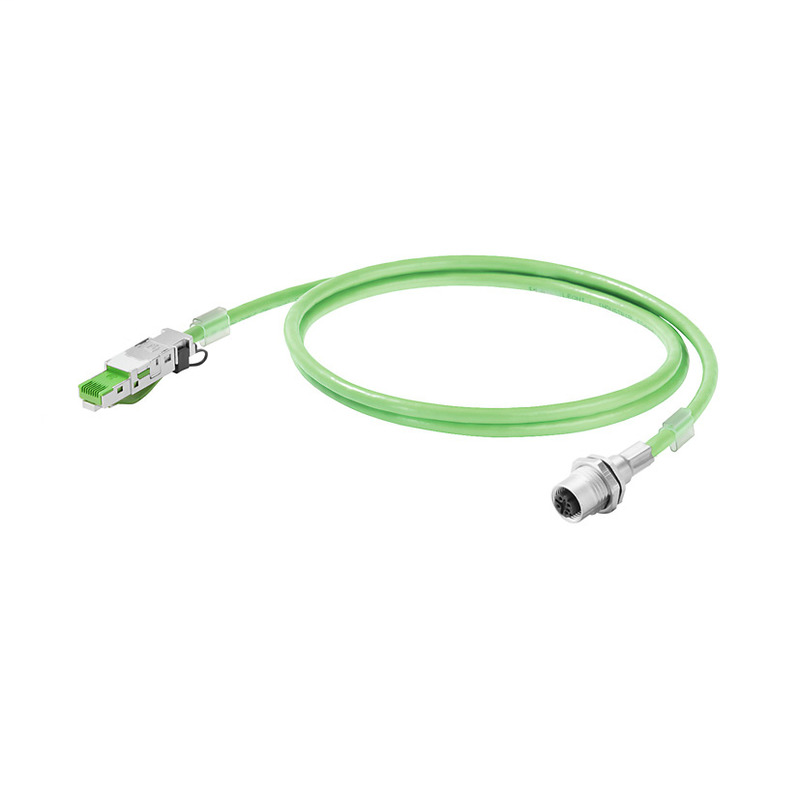

System cable, M12 D-code – flange, RJ45 IP 20, Cat.5 (ISO/IEC 11801) / Cat.5e (TIA T568-B), PUR, 2 mIE-C5DS4UG0020MBSA20-E
Weidmuller 1234750020 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Approvals
- ROHS
- Conform
Cable Structure
- Cross-section
- 4*AWG 22/7 - 0.36 mm²
- Insulation cross-section
- 1.5 mm
- Material sheath
- PUR
- Sheath diameter, max.
- 6.7 mm
- Sheathing colour
- green (RAL 6018)
- Shielding
- 360° shield contact
Classifications
- eClass 10.0
- 27-06-03-08
- eClass 9.0
- 27-06-03-08
- eClass 9.1
- 27-06-03-08
- ETIM 6.0
- EC002599
- ETIM 7.0
- EC002599
Dimensions And Weights
- Insulation cross-section
- 1.5 mm
- Length
- 2 m
- Length (inches)
- 0.079 inch
- Net weight
- 161 g
Electrical Properties Of Cable
- Category
- Cat.5 (ISO/IEC 11801) / Cat.5e (TIA T568-B)
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Mechanical And Material Properties Of Cable
- Min. bending radius, once only
- 5 x cable diameter
- Min. bending radius, repetitive
- 15 x cable diameter
Plug
- Connector left
- M12 D-code – flange
- Connector right
- RJ45 IP 20
Temperatures
- Installation temperature
- -20 °C...60 °C
- Operating temperature
- -40 °C...70 °C
- Operating temperature, max.
- 70 °C
- Operating temperature, min.
- -40 °C
- Storage temperature
- -50 °C...70 °C
- Storage temperature, max.
- 70 °C
- Storage temperature, min.
- -50 °C
