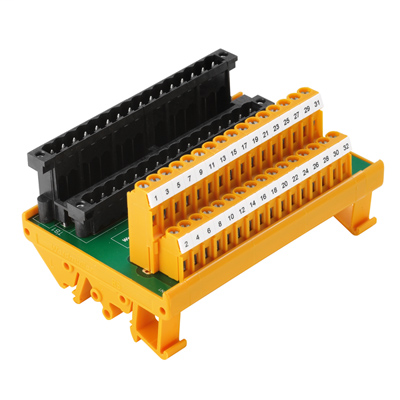

Weidmuller 1223010000
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Interface, RS, 1-wire, Flying lead couplingFTA-C300-16AO-SH-P
Weidmuller 1223010000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Approvals
- Approvals
- CE, EAC
- ROHS
- Conform
Classifications
- eClass 10.0
- 27-14-11-52
- eClass 9.0
- 27-14-11-52
- eClass 9.1
- 27-14-11-52
- ETIM 6.0
- EC002780
- ETIM 7.0
- EC002780
Connection Data
- Connection (field side)
- SL/BLZ 5.08 mm
- Connection on control side
- SLDV-THR 5.08
- Number of poles (control side)
- 32-pole female
- Protective earth connection
- M4 round terminal
- Wiring system
- 1-wire
Connection Field
- Type of connection
- Flying lead coupling
Dimensions And Weights
- Height
- 56 mm
- Height (inches)
- 2.205 inch
- Length
- 105 mm
- Length (inches)
- 4.134 inch
- Net weight
- 131 g
- Width
- 70 mm
- Width (inches)
- 2.756 inch
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
General Data
- Current-measuring testpoint
- No
- Disconnection per channel
- No
- Fuse per channel
- No
- LED status display per channel
- No
- LED status of the supply voltage
- No
- Power supply fuse
- No
- Switch
- No
- Type of test point
- No
- Voltage point of measurement
- No
Insulation Coordination (En50178)
- According to
- DIN EN 50178
- Insulation test voltage
- 1.2 kVAC
- Pollution severity level
- 2
- Pulse voltage test (1,2/50μs)
- 2 kV
- Rated insulation voltage
- < 250 V AC
- Surge voltage category
- II
Ratings Data
- Max. current per channel
- 1 A
- Operating voltage
- 250 V AC / 350 V DC
Supply Connection
- Type of connection
- Flying lead coupling
Temperatures
- Operating temperature
- -25...50 °C
- Operating temperature, max.
- 50 °C
- Operating temperature, min.
- -25 °C
- Storage temperature
- -40...60 °C
- Storage temperature, max.
- 60 °C
- Storage temperature, min.
- -40 °C
