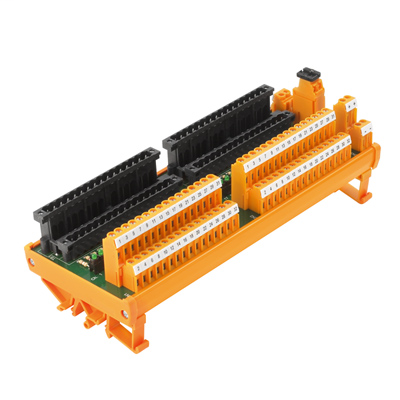

Weidmuller 1222940000
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Interface, RS, 1-wire, Screw connectionFTA-C300-32DI-LD-S
Weidmuller 1222940000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Approvals
- Approvals
- CE, EAC
- ROHS
- Conform
Classifications
- eClass 10.0
- 27-14-11-52
- eClass 9.0
- 27-14-11-52
- eClass 9.1
- 27-24-22-16
- ETIM 6.0
- EC002780
- ETIM 7.0
- EC002780
Connection Data
- Connection (field side)
- LP2N 5.08mm
- Connection on control side
- SLDV-THR 5.08
- Connection supply
- LP2N 5.08mm
- Number of poles (control side)
- 64-pole
- Wiring system
- 1-wire
Connection Field
- Clamping range, max.
- 6 mm²
- Clamping range, min.
- 0.13 mm²
- Flexible, max. H05(07) V-K
- 4 mm²
- Flexible, min. H05(07) V-K
- 0.5 mm²
- Flexible with sleeve, max.
- 2.5 mm²
- Flexible with sleeve, min.
- 0.5 mm²
- Max. wire cross-section, AWG
- AWG 12
- Min. wire cross-section, AWG
- AWG 26
- Sleeve with plastic collar, max.
- 2.5 mm²
- Solid, max. H05(07) V-U
- 6 mm²
- Solid, min. H05(07) V-U
- 0.5 mm²
- Stripping length
- 6 mm
- Tightening torque, max.
- 0.6 Nm
- Tightening torque, min.
- 0.5 Nm
- Type of connection
- Screw connection
Dimensions And Weights
- Height
- 65 mm
- Height (inches)
- 2.559 inch
- Length
- 216 mm
- Length (inches)
- 8.504 inch
- Net weight
- 407 g
- Width
- 87 mm
- Width (inches)
- 3.425 inch
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
General Data
- Current-measuring testpoint
- No
- Disconnection per channel
- No
- Fuse per channel
- No
- LED status display per channel
- green
- LED status of the supply voltage
- yellow
- Power supply fuse
- 630 mA
- Switch
- No
- Type of test point
- No
- Voltage point of measurement
- No
Insulation Coordination (En50178)
- According to
- DIN EN 50178
- Insulation test voltage
- 0.35 kVAC
- Pollution severity level
- 2
- Pulse voltage test (1,2/50μs)
- 0.8 kV
- Rated insulation voltage
- < 50 V AC
- Surge voltage category
- III
Ratings Data
- Max. current per channel
- 1 A
- Operating voltage
- 24 V DC ± 10%
- Total operating current
- 5 A
Supply Connection
- Clamping range, max.
- 6 mm²
- Clamping range, min.
- 0.13 mm²
- Ferrule with plastic collar, max.
- 0.5 mm²
- Flexible, max. H05(07) V-K
- 4 mm²
- Flexible, min. H05(07) V-K
- 0.5 mm²
- Flexible with sleeve, max.
- 2.5 mm²
- Flexible with sleeve, min.
- 2.5 mm²
- Solid, max. H05(07) V-U
- 6 mm²
- Solid, min. H05(07) V-U
- 0.5 mm²
- Stripping length
- 6 mm
- Tightening torque, max.
- 0.6 Nm
- Tightening torque, min.
- 0.5 Nm
- Type of connection
- Screw connection
- Wire cross-section, max. AWG
- AWG 26
- Wire cross-section, min. AWG
- AWG 12
Temperatures
- Operating temperature
- -25...50 °C
- Operating temperature, max.
- 50 °C
- Operating temperature, min.
- -25 °C
- Storage temperature
- -40...60 °C
- Storage temperature, max.
- 60 °C
- Storage temperature, min.
- -40 °C
