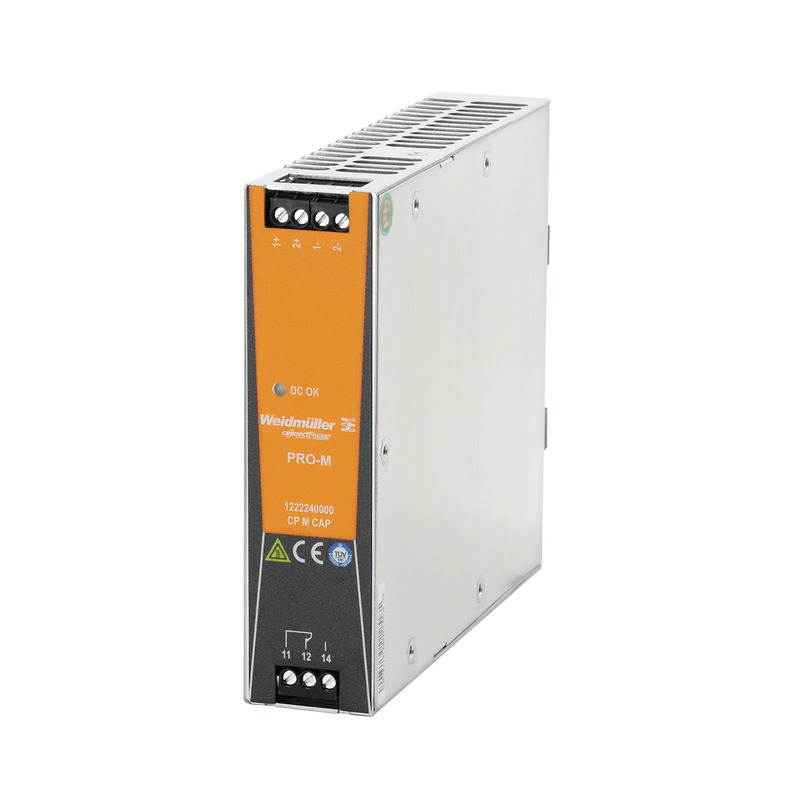

Capacity moduleCP M CAP
Weidmuller 1222240000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Approvals
- Approvals
- CE, CULUS, EAC, GERMLLOYD
- ROHS
- Conform
- UL File Number Search
- E258476
Classifications
- eClass 10.0
- 27-04-06-92
- eClass 9.0
- 27-04-06-92
- eClass 9.1
- 27-04-92-01
- ETIM 6.0
- EC002850
- ETIM 7.0
- EC002850
Connection Data (Input)
- Conductor cross-section, AWG/kcmil , max.
- 12
- Conductor cross-section, AWG/kcmil , min.
- 26
- Conductor cross-section, flexible , min.
- 0.5 mm²
- Conductor cross-section, rigid , max.
- 6 mm²
- Conductor cross-section, rigid , min.
- 0.5 mm²
- Number of terminals
- 4 (++--)
- Wire connection cross section, flexible (input), max.
- 4 mm²
Connection Data (Output)
- Conductor cross-section, AWG/kcmil , max.
- 12
- Conductor cross-section, AWG/kcmil , min.
- 26
- Conductor cross-section, flexible , max.
- 2.5 mm²
- Conductor cross-section, flexible , min.
- 0.5 mm²
- Conductor cross-section, rigid , max.
- 6 mm²
- Conductor cross-section, rigid , min.
- 0.5 mm²
- Number of terminals
- 3 (CO contacts)
Dimensions And Weights
- Depth
- 150 mm
- Depth (inches)
- 5.905 inch
- Height
- 130 mm
- Height (inches)
- 5.118 inch
- Net weight
- 725 g
- Width
- 34 mm
- Width (inches)
- 1.339 inch
Electrical Safety (Applied Standards)
- Electrical machine equipment
- Acc. to EN60204
- For use with electronic equipment
- Acc. to EN50178 / VDE0160
- Safety extra-low voltage
- SELV according to EN 60950, PELV according to EN 60204
Emc / Shock / Vibration
- Interference immunity test acc. to
- EN 61000-4-2 (ESD)|EN 61000-4-3 and EN 61000-4-8 (fields)|EN 61000-4-4 (burst)|EN 61000-4-5 (surge)|EN 61000-4-6 (conducted)|EN 61000-4-11 (dips)
- Noise emission in accordance with EN55032
- Class B
- Shock resistance IEC 60068-2-27
- 15 g In all directions
- Vibration resistance IEC 60068-2-6
- 1 g according to EN 50178
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
General Data
- Humidity
- 5...95 %, no condensation
- Mounting position, installation notice
- Horizontal on TS35 mounting rail. 50 mm of clearance at top & bottom for air circ. Can mount side by side with no space in between.
- MTBF
- > 500,000 h in accordance with IEC 61709 (SN29500)
- Operating temperature
- -25 °C...70 °C
- Protection degree
- IP20
Input
- DC input voltage range
- 18…30 V DC
- Rated input voltage
- 24 V DC
- Wire connection method
- Screw connection
Insulation Coordination
- Insulation voltage
- 0.5 kV Input / output - Box
- Pollution severity
- 2
- Protection class
- III, with no ground connection, for SELV
Output
- Peak current output
- load dependent (typ. 40 A for 1 ms)
- Recovery time for the capacitor
- Approx. 1 sec.
- Switching thresholds
- 21.6 V DC, relay is on for Power Good, 20.4 V DC, relay is off for Power Fail
- Voltage monitoring
- Yes
- Wire connection method
- Screw connection
Ratings Iecex/Atex/Cul
- Certificate no. (cULus)
- E258476
Signalling
- Floating contact
- Yes
Temperatures
- Humidity
- 5...95 %, no condensation
- Operating temperature
- -25 °C...70 °C
- Operating temperature, max.
- 70 °C
- Operating temperature, min.
- -25 °C
- Storage temperature
- -40 °C...85 °C
- Storage temperature, max.
- 85 °C
- Storage temperature, min.
- -40 °C
