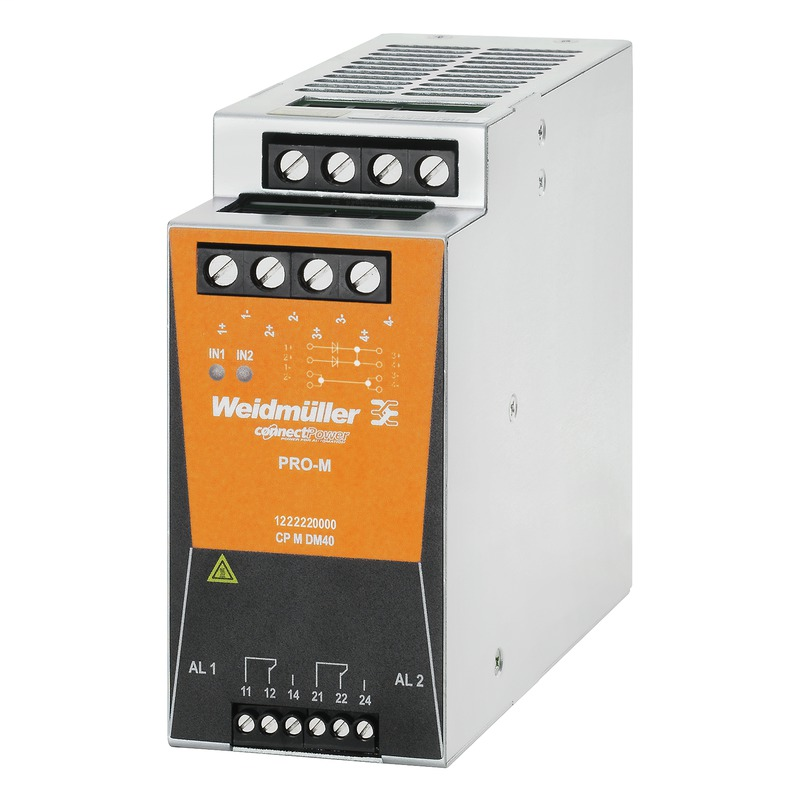

Weidmuller 1222220000
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Weidmuller 1222220000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Approvals
- Approvals
- CE
- EAC
- CULUS
- GERMLLOYD
- CCSAUS
- Certificate no. (cULus)
- E258476
- Certificate No. (GERMLLOYD)
- 94767-10
- Institute (cULus)
- icon
- Institute (GERMLLOYD)
- icon
- ROHS
- Conform
- UL File Number Search
- E258476
Classifications
- eClass 6.2
- 27-04-92-01
- eClass 7.1
- 27-04-92-01
- eClass 8.1
- 27-04-92-01
- eClass 9.0
- 27-04-92-01
- eClass 9.1
- 27-04-07-01
- ETIM 5.0
- EC002850
- ETIM 6.0
- EC002540
Connection Data (Input)
- Conductor cross-section, AWG/kcmil , max.
- 6
- Conductor cross-section, AWG/kcmil , min.
- 22
- Conductor cross-section, flexible , min.
- 2.5 mm²
- Conductor cross-section, rigid , max.
- 16 mm²
- Conductor cross-section, rigid , min.
- 0.5 mm²
- Number of terminals
- 4 (1+, 2+, 1-, 2-)
- Wire connection cross section, flexible (input), max.
- 10 mm²
Connection Data (Output)
- Conductor cross-section, AWG/kcmil , max.
- 6
- Conductor cross-section, AWG/kcmil , min.
- 22
- Conductor cross-section, flexible , max.
- 10 mm²
- Conductor cross-section, flexible , min.
- 2.5 mm²
- Conductor cross-section, rigid , max.
- 16 mm²
- Conductor cross-section, rigid , min.
- 0.5 mm²
- Number of terminals
- 4 (3 +, 4 +, 3 -, 4 -)
Dimensions And Weights
- Depth
- 150 mm
- Depth (inches)
- 5.905 inch
- Height
- 130 mm
- Height (inches)
- 5.118 inch
- Net weight
- 867 g
- Width
- 60 mm
- Width (inches)
- 2.362 inch
Electrical Safety (Applied Standards)
- Electrical machine equipment
- Acc. to EN60204
- For use with electronic equipment
- Acc. to EN50178 / VDE0160
- Safety extra-low voltage
- SELV acc. to EN60950, PELV acc. to EN60204
Emc / Shock / Vibration
- Interference immunity test acc. to
- EN 61000-4-2 (ESD)|EN 61000-4-3 and EN 61000-4-8 (fields)|EN 61000-4-4 (burst)|EN 61000-4-5 (surge)|EN 61000-4-6 (conducted)
- Noise emission acc. to EN55022
- Class B
- Shock resistance IEC 60068-2-27
- 15 g In all directions
- Vibration resistance IEC 60068-2-6
- 1 g according to EN50178
General Data
- Degree of efficiency
- > 97% @ 24 V input voltage
- Humidity
- 5...95 %, no condensation
- Mounting position, installation notice
- Horizontal on TS35 mounting rail. 50 mm of clearance at top & bottom for air circ. Can mount side by side with no space in between.
- MTBF
- > 500,000 h acc. to IEC 1709 (SN29500
- Operating temperature
- -25 °C...70 °C
- Protection degree
- IP20
General Ordering Data
- GTIN (EAN)
- 4050118005455
- Order No.
- 1222220000
- Qty.
- 1 pc(s).
- Type
- CP M DM40
- Version
- Power supply, switch-mode power supply unit
Input
- DC input voltage range
- 18…30 V DC
- Input current
- 2 x 20 A or 1 x 40 A
- Rated input voltage
- 24 V DC
- Wire connection method
- Screw connection
Insulation Coordination
- Class of protection
- III, with no ground connection, for SELV
- Insulation voltage
- 0.5 kV
- Pollution severity
- 2
Output
- Conductor cross-section, AWG/kcmil , max.
- 6
- Conductor cross-section, AWG/kcmil , min.
- 22
- Conductor cross-section, flexible , max.
- 10 mm²
- Conductor cross-section, flexible , min.
- 2.5 mm²
- Conductor cross-section, rigid , max.
- 16 mm²
- Conductor cross-section, rigid , min.
- 0.5 mm²
- Continuous output current @ U
- 48 A @ 45 °C, 45 A @ 55 °C, 30 A @ 70 °C
- Number of terminals
- 4 (3 +, 4 +, 3 -, 4 -)
- Output current, max.
- 48 A
- Output voltage
- Input voltage - 0.7 V
- Rated (nominal) output current @ U
- 40 A @ 60 °C
- Rated output voltage
- 24 V DC ± 1 %
- Switching thresholds
- 21.6 V DC, relay is on for Power Good, 20.4 V DC, relay is off for Power Fail
- Voltage monitoring
- Yes, In both inputs
- Wire connection method
- Screw connection
Signalling
- Floating contact
- Yes
Temperatures
- Humidity
- 5...95 %, no condensation
- Operating temperature
- -25 °C...70 °C
- Storage temperature
- -40 °C...85 °C
