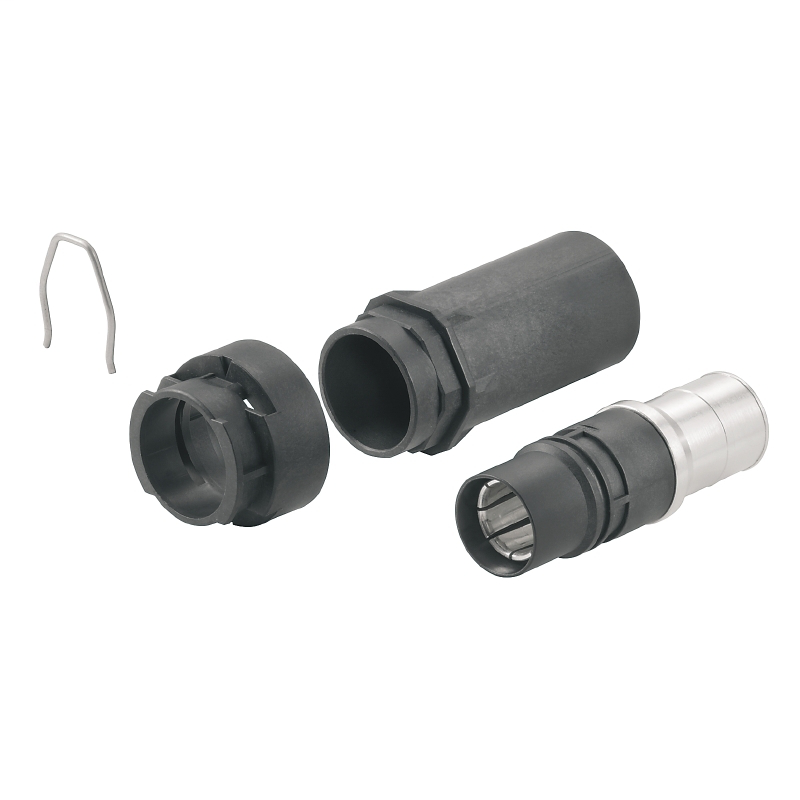

Weidmuller 1220840000
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
HDC insert, Female, 3000 V, 250 A, Crimp connection, Size: 250HDC HP 250 F 50 PE
Weidmuller 1220840000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Approvals
- Approvals
- EAC
- ROHS
- Conform
Classifications
- eClass 10.0
- 27-44-02-04
- eClass 9.0
- 27-44-02-04
- eClass 9.1
- 27-44-02-04
- ETIM 6.0
- EC000796
- ETIM 7.0
- EC000796
Connection Data
- Conductor cross-section, max.
- 50 mm²
- Conductor cross-section, min.
- 50 mm²
- Wire connection cross section AWG, max.
- AWG 1
Connection Data Pe
- Connection type PE
- Crimp connection
Design
- Product family
- HDC insert
- Product type
- Crimp contact
- Type
- Female
- Type of connection
- Crimp connection
Dimensions And Weights
- Diameter
- 32 mm
- Length
- 83.2 mm
- Length (inches)
- 3.276 inch
- Net weight
- 111.91 g
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
General Data
- Conductor cross-section
- 50 mm²
- Insulating material
- Polyamide with fibre optic
- Insulation strength
- 1010 Ω
- Material
- Copper alloy
- Pollution severity
- PD 2 (PD 3)
- Rated current (DIN EN 61984)
- 250 A
- Rated impulse voltage (DIN EN 61984)
- 15 kV
- Rated voltage (DIN EN 61984)
- 3,000 V
- Series
- HighPower
- Size
- 250
- Surface finish
- Silver passivated
- Type
- Female
- UL 94 flammability rating
- V-0
- Volume resistance
- ≤ 0.1 mΩ
General Descriptions
- Size
- 250
Material
- Colour
- black
- Insulating material
- Polyamide with fibre optic
- Material
- Copper alloy
- UL 94 flammability rating
- V-0
Power Contact
- Rated current (DIN EN 61984), power contact
- 250 A
- Rated impulse voltage (DIN EN 61984), power contact
- 15 kV
- Rated voltage (DIN EN 61984), power contact
- 3,000 V
- Stripping length, performance contact
- 24 mm
Temperatures
- Limit temperature
- -50 °C ... 120 °C
Version
- Conductor cross-section, max.
- 50 mm²
- Conductor cross-section, min.
- 50 mm²
- Material
- Copper alloy
- Size
- 250
- Stripping length, rated connection
- 24 mm
- Surface finish
- Silver passivated
- Type of connection
- Crimp connection
- Volume resistance
- ≤ 0.1 mΩ
- Wire connection cross section AWG, max.
- AWG 1
