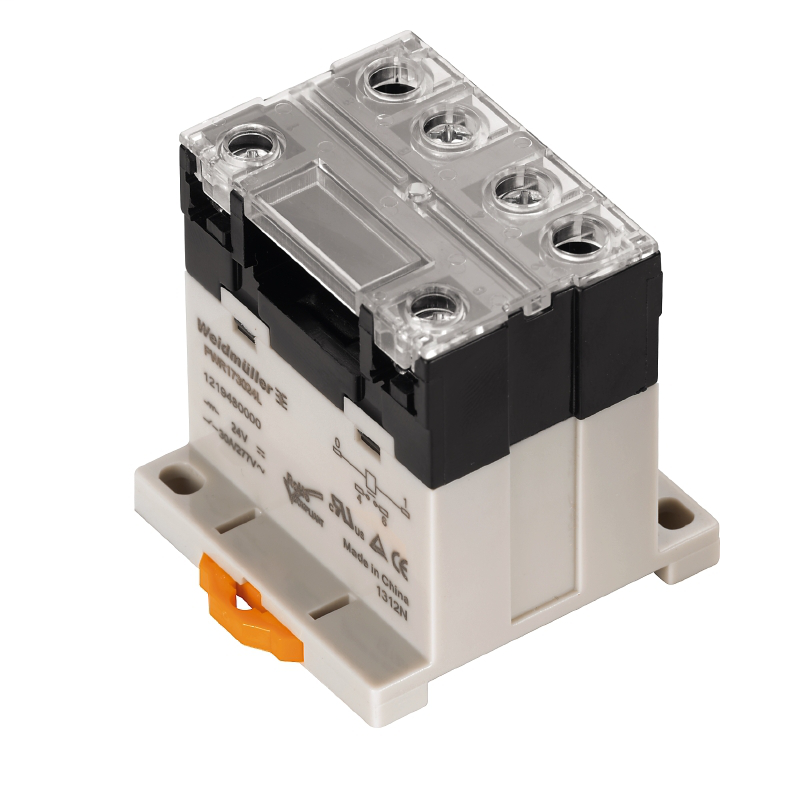

Weidmuller 1219180000
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
D-SERIES PWR, Relay module, Number of contacts: 2 NO contact AgSnO2, Rated control voltage: 115 V AC, Continuous current: 25 APWR276615L
Weidmuller 1219180000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Approvals
- Approvals
- CE, cURus, EAC
- ROHS
- Conform
- UL File Number Search
- E312083
Classifications
- eClass 10.0
- 27-37-16-01
- eClass 9.0
- 27-37-16-01
- eClass 9.1
- 27-37-16-01
- ETIM 6.0
- EC001437
- ETIM 7.0
- EC001437
Connection Data (Input)
- Blade size (control side)
- Gr. PH2
- Max. rated connection clamping range (control side)
- 2.5 mm²
- Max. tightening torque (control side)
- 1.2 Nm
- Min. rated connection clamping range (control side)
- 0.5 mm²
- Min. tightening torque (control side)
- 0.5 Nm
- Wire connection method (control side)
- Screw connection
Connection Data (Output)
- Blade size (load side)
- Gr. PH2
- Max. rated connection clamping range (load side)
- 4 mm²
- Max. tightening torque (load side)
- 1.2 Nm
- Min. rated connection clamping range (load side)
- 0.5 mm²
- Min. tightening torque (load side)
- 0.5 Nm
- Wire connection method (load side)
- Screw connection
Contact Data
- Contact resistance
- ≤ 50 mΩ
- Contact type
- 2 NO contact (AgSnO2)
Dimensions And Weights
- Depth
- 55 mm
- Depth (inches)
- 2.165 inch
- Height
- 34 mm
- Height (inches)
- 1.339 inch
- Net weight
- 120 g
- Width
- 50.5 mm
- Width (inches)
- 1.988 inch
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Further Details Of Approvals / Standards
- Certificate No. (cURus)
- E312083
- Standards
- IEC 61810-1, EN 60664-1:2007, EN 61000-6-2:2005, EN 61000-6-4:2007 + A1:2011, UL 508
General Data
- Colour
- beige
- Mechanical switch position indicator
- No
- Rail
- TS 35
- Test button
- No
Input
- Coil resistance
- 5200 Ω ± 10 %
- Power rating
- 2.5 VA
- Pull-in/drop-out voltage, typ.
- 86.3 V / 17.3 V AC
- Rated control voltage
- 115 V AC
- Rated current AC
- 22.1 mA
- Status indicator
- Green LED
Insulation Coordination
- Creepage and clearance distance input – output
- ≥ 5.5 mm
- Dielectric strength, Input/Output
- 4 kVeff / 1 min
- Dielectric strength of neighbouring contacts
- 2 kVeff / 1 min
- Dielectric strength of open contact
- 2 kVeff / 1 min
- Impulse withstand voltage
- 6 kV (1.2/50 µs)
- Insulating material group
- IIIa
- Pollution severity
- 3
- Protection degree
- IP10
- Rated voltage
- 250 V
- Surge voltage category
- III
Output
- AC switching capacity (resistive), max.
- 6900 VA
- Continuous current
- 25 A
- DC switching capacity (resistive), max.
- 600 W @ 24 V
- Inrush current
- 120 A / 50 ms
- Max. switching frequency at rated load
- 0.1 Hz
- Max. switching voltage, AC
- 277 V
- Min. switching power
- 100 mA @ 12 V
- Rated switching voltage
- 277 V AC
- Switch-off delay
- < 30 ms
- Switch-on delay
- < 30 ms
Rated Data Ul
- Certificate No. (cURus)
- E312083
Temperatures
- Humidity
- 35...85 % rel. humidity, no condensation
- Operating temperature
- -25 °C...55 °C
- Operating temperature, max.
- 55 °C
- Operating temperature, min.
- -25 °C
- Storage temperature
- -25 °C...55 °C
- Storage temperature, max.
- 55 °C
- Storage temperature, min.
- -25 °C
