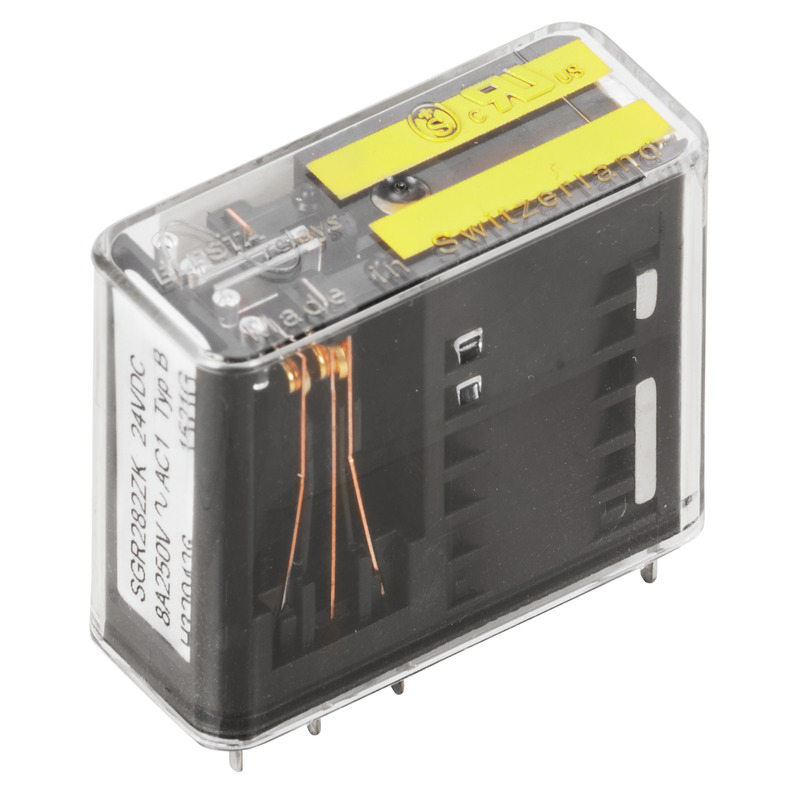

Weidmuller 1218380000
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
RIDERSERIES FG, Relay with positively driven contacts, Number of contacts: 2 Contact positively-driven (EN 50205 type B) AgCuNi, Rated control voltage: 24 V DC, Continuous current: 6 ARCI42424FG
Weidmuller 1218380000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Approvals
- Approvals
- EAC
- ROHS
- Conform
Classifications
- eClass 10.0
- 27-37-16-01
- eClass 9.0
- 27-37-16-01
- eClass 9.1
- 27-37-16-01
- ETIM 6.0
- EC001437
- ETIM 7.0
- EC001437
Contact Data
- Contact type
- 2 Contact positively-driven (EN 50205 type B) (AgCuNi)
- Mechanical service life
- > 50 x 106 switching cycles
Dimensions And Weights
- Depth
- 25.6 mm
- Depth (inches)
- 1.008 inch
- Height
- 30.2 mm
- Height (inches)
- 1.189 inch
- Net weight
- 20.5 g
- Width
- 12.7 mm
- Width (inches)
- 0.5 inch
Further Details Of Approvals / Standards
- Standards
- DIN EN 50205
General Data
- Colour
- Transparent
- Mechanical switch position indicator
- No
- Test button
- No
Input
- Coil resistance
- 720 Ω ± 10 %
- Power rating
- 700 mW
- Pull-in/drop-out voltage, typ.
- 18 V / 2.4 V DC
- Rated control voltage
- 24 V DC
- Rated current DC
- 29.2 mA
Insulation Coordination
- Creepage and clearance distance input – output
- ≥ 10 mm
- Dielectric strength, Input/Output
- 5 kVeff / 1min
- Dielectric strength of neighbouring contacts
- 4 kVeff / 1 min
- Dielectric strength of open contact
- 1.5 kVeff /1 min.
- Pollution severity
- 2
- Protection degree
- IP20
- Rated voltage
- 250 V
- Surge voltage category
- III
Output
- AC switching capacity (resistive), max.
- 1500 VA
- Continuous current
- 6 A
- DC switching capacity (resistive), max.
- 144 W @ 24 V
- Inrush current
- 15 A / 20 ms
- Max. switching frequency at rated load
- 0.1 Hz
- Max. switching voltage, AC
- 250 V
- Min. switching power
- 1 mA @ 24 V, 10 mA @ 10 V, 100 mA @ 5 V
- Rated switching voltage
- 250 V AC
- Switch-off delay
- ≤ 6 ms
- Switch-on delay
- ≤ 12 ms
Temperatures
- Humidity
- 40 °C / 95 % rel. humidity, no condensation
- Operating temperature
- -40 °C...70 °C
- Operating temperature, max.
- 70 °C
- Operating temperature, min.
- -40 °C
- Storage temperature
- -40 °C...85 °C
- Storage temperature, max.
- 85 °C
- Storage temperature, min.
- -40 °C
