Weidmuller 1202530000
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description

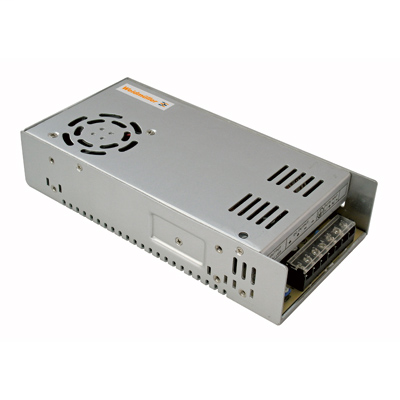

Power supply, switch-mode power supply unitCP E SNT 250W 24V 10.5A
Weidmuller 1202530000 is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Approvals
- Approvals
- CE, cURus, EAC
- ROHS
- Conform
- UL File Number Search
- E349964
Classifications
- eClass 10.0
- 27-04-07-01
- eClass 9.0
- 27-04-07-01
- eClass 9.1
- 27-04-07-01
- ETIM 6.0
- EC002540
- ETIM 7.0
- EC002540
Connection Data (Input)
- Connection system
- Screw connection
Dimensions And Weights
- Depth
- 231 mm
- Depth (inches)
- 9.094 inch
- Height
- 49.5 mm
- Height (inches)
- 1.949 inch
- Net weight
- 1,022 g
- Width
- 115 mm
- Width (inches)
- 4.528 inch
Electrical Safety (Applied Standards)
- Safety extra-low voltage
- SELV according to EN 60950
Emc / Shock / Vibration
- Noise emission in accordance with EN55032
- Class A
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
General Data
- AC failure bridging time @ I
- min. 20 ms
- Ambient temperature
- -20°C...70°C (>50°C derating,refer derated curve); 70% rated load @ 70°C
- Degree of efficiency
- 81 % @ 24 V DC
- EMC standards
- EN 55011, EN 55022, EN 55024, EN 61000-6 /-2, -3
- Indication
- Operation, green LED
- Max. perm. air humidity (operational)
- 5 %…95 % RH
- Mounting position, installation notice
- Panel mount, screw fix
- Protection degree
- IP20
- Short-circuit protection
- Yes
- Standards
- EN 60950
Input
- AC current consumption
- 2.5 A @ 230 V AC / 4.7 A @ 120 V AC
- AC input voltage range
- 88...132 V AC / 176...264 V AC optional
- Connection system
- Screw connection
- DC input voltage range
- 250...370 V DC
- Frequency range AC
- 47...63 Hz
- Input fuse (internal)
- yes / max. 35A
- Rated input voltage
- 100...240 V AC (wide-range input)
- Recommended back-up fuse
- 6 A at 230 V AC, characteristic curve C
Insulation Coordination
- electrical isolation, input-earth
- 2 kV
- electrical isolation, input-output
- 3 kV
- electrical isolation, output-earth
- 0.5 kV
Output
- Mains failure bridge-over time
- 20 ms
- Output current
- 10.5 A @ 24 V DC
- Output power
- 250 W
- Output voltage
- ± 10% nominal output voltage tolerance, adjustable with potentiometer
- Overload protection
- 120~150% Ikonst. of max. output power, automatic restart
- Parallel connection option
- Recommended with diode module
- Rated output voltage
- 24 V DC
- Residual ripple, breaking spikes
- < 100 mVPP
- Surge protection
- 28...32 V @ 24 V DC
Rated Data Ul
- Certificate No. (cURus)
- E349964
System Data
- Output current
- 10.5 A @ 24 V DC
Temperatures
- Ambient temperature
- -20°C...70°C (>50°C derating,refer derated curve); 70% rated load @ 70°C
- Storage temperature
- -20 °C...85 °C
- Storage temperature, max.
- 85 °C
- Storage temperature, min.
- -20 °C
