Weidmuller 1196120000
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

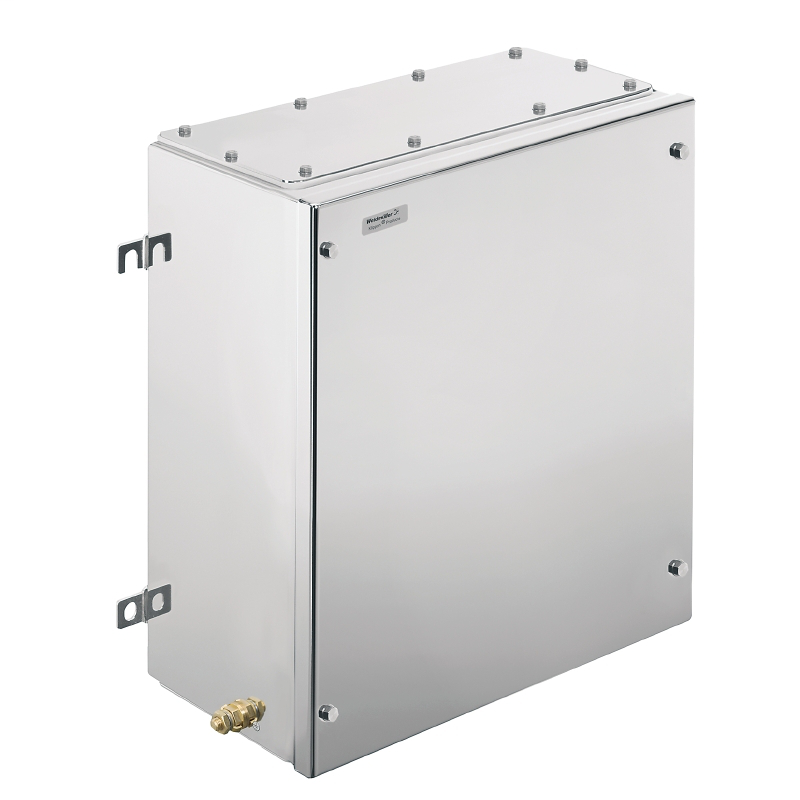

Klippon TB FS (Terminal Box - Fixing Screw), Empty enclosure, stainless steel enclosure, Height: 458 mm, Width: 382 mm, Depth: 150 mm, Gland plates: Bottom, top, Material: Stainless steel 1.4404 (316L), electropolished, silverKTB FS 453815 S4E2
Weidmuller 1196120000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Approvals
- Approvals
- CCOE, CE, CULUS, DNV GL, IBEXUATEX, IECEXIBE, IECEXKEM, IECEXPTB, INMETRO, KEMAATEX, KOREANCERT, NEPSI, PTBATEX
- UL File Number Search
- E256877
Cable Glands, Left
- M12
- 33 ???New14???
- M16
- 19
- M20
- 16 ???New14???
- M25
- 7 ???New14???
- M32
- 6
- M40
- 5
- M50
- 4
- M63
- 0
- M75
- 0
Cable Glands, Right
- M12
- 33 ???New14???
- M16
- 19
- M20
- 16 ???New14???
- M25
- 7 ???New14???
- M32
- 6
- M40
- 5
- M50
- 4
- M63
- 0
- M75
- 0
Cable Glands, Top/Bottom
- M12
- 30 ???New14???
- M16
- 17 ???New14???
- M20
- 15 ???New14???
- M25
- 6
- M32
- 5
- M40
- 4
- M50
- 4
- M63
- 0
- M75
- 0
Certificate Numbers Enclosure
- Certificate no. assembled enclosure (AEx)
- E223792
- Certificate no. assembled enclosure (ATEX)
- IBExU14ATEX1050
- Certificate no., assembled enclosure (EAC)
- RU C-DE.ГБ08.B.01328
- Certificate no. assembled enclosure (IECEx)
- IECEXIBE14.0013
- Certificate no. assembled enclosure (INMETRO)
- IEx 17.0021
- Certificate no., assembled enclosure (KOSHA)
- 16-AV4BO-0245X
- Certificate no. assembled enclosure (NEPSI)
- GYJ14.1309
- Certificate No. (CCOE)
- CCOEP267536/2
- Certificate no. (cULus)
- E256877
- Certificate no. empty enclosure (ATEX)
- IBExU14ATEX1028 U
- Certificate no., empty enclosure (EAC)
- RU C-DE.ГБ08.B.00472
- Certificate no. empty enclosure (IECEx)
- IECEx IBE 14.0004U
- Certificate no. empty enclosure (INMETRO)
- IEx 17.0020U
- Certificate no. empty enclosure (NEPSI)
- GYJ14.1308U
Classifications
- eClass 10.0
- 27-18-05-02
- eClass 9.0
- 27-18-05-02
- eClass 9.1
- 27-18-05-02
- ETIM 6.0
- EC002503
- ETIM 7.0
- EC002503
Dimensions And Weights
- Depth
- 150 mm
- Depth (inches)
- 5.905 inch
- Height
- 458 mm
- Height (inches)
- 18.031 inch
- Mounting dimension - height
- 305 mm
- Mounting dimension - width
- 408 mm
- Net weight
- 12,300 g
- Width
- 382 mm
- Width (inches)
- 15.039 inch
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
General Information
- Access opening: height
- 428 mm
- Access opening: width
- 352 mm
- AF size 1
- 10 mm
- Areas of use
- Explosive risk zone, Process industry, Oil and gas industry, Chemical industry, Offshore, Onshore
- Enclosure attachment
- 4 welded-on mounting feet with 11 mm holes (2 slotted feet and 2 cross-shaped feet)
- Gland plates
- Bottom, top
- Impact resistance
- 7 J ATEX version, 10 J version standard
- Installation advice
- Terminal rail / mounting plate
- Integral fixing
- 4, 6 or 9 stud bolts M6 inner (female) thread
- Lid attachment
- M6 hex-head slotted screws SW10
- Material
- Stainless steel 1.4404 (316L)
- Material thickness
- 1.5 mm
- Material thickness of cover
- 1.5 mm
- Material thickness of flange
- 3 mm
- Max. payload
- 70 kg
- Note: protection class
- If used in temperature ranges above 105 °C, IP protection is limited to IP 66.
- Operating temperature, max.
- 135 °C
- Operating temperature, min.
- -60 °C
- Overall dimensions
- 480 x 433 x 158.5
- Position PE bolts
- Page C
- Protection degree
- IP66, IP67
- Seal material
- Silicone
- Standards
- DIN EN 62208 - Empty enclosure standard, DIN EN 15085-2, EN 60079-0, EN 60079-7, EN 60079-31, IEC 60079-0, IEC 60079-7, IEC 60079-31
- Surface finish
- electropolished
- Torque for lid screws
- 2.5 Nm
Horizontal Assembly
- WDU 10 / ZDU 10
- 2x29
- WDU 16 / ZDU 16
- 2x24
- WDU 2,5 / ZDU 2,5 / IDU 2,5
- 4x58
- WDU 35 / ZDU 35
- 1x18
- WDU 4 / ZDU 4
- 3x48
- WDU 6 / ZDU 6
- 3x36
Housing Earth
- Earth, enclosure, internal
- Welded-on M6 stainless-steel earth stud in enclosure body and lid., Continuous M10 earth stud in body enclosure
Product Information
- Product information
- Minimum order quantity (10 pieces)
Vertical Assembly
- WDU 10 / ZDU 10
- 2x37
- WDU 16 / ZDU 16
- 2x31
- WDU 2,5 / ZDU 2,5 / IDU 2,5
- 3x73
- WDU 35 / ZDU 35
- 1x23
- WDU 4 / ZDU 4
- 2x62
- WDU 6 / ZDU 6
- 2x46
