Description

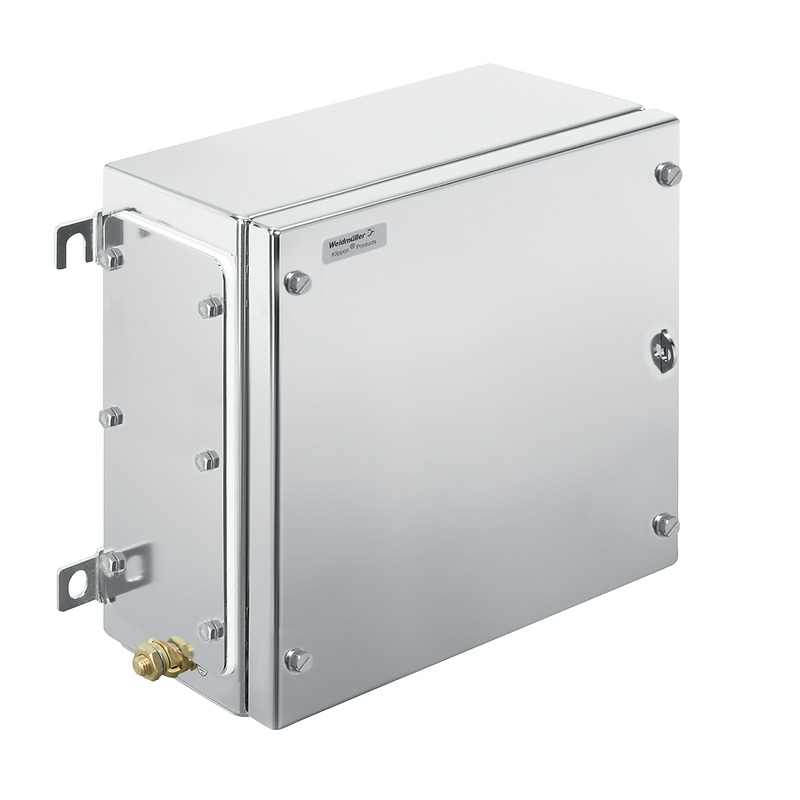

Klippon TB MH (Terminal Box - Multi Hinge), Empty enclosure, stainless steel enclosure, Height: 260 mm, Width: 260 mm, Depth: 200 mm, Gland plates: Bottom, Material: Stainless steel 1.4404 (316L), electropolished, silverKTB MH 262620 S4E1
Weidmuller 1194660000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Approvals
- Approvals
- CCOE, CE, CULUS, DNV GL, EAC, IBEXUATEX, IECEXIBE, IECEXKEM, IECEXPTB, INMETRO, KEMAATEX, KOREANCERT, MARITREG, NEPSI, PTBATEX
- ROHS
- Conform
- UL File Number Search
- E243298
Cable Glands, Left
- M12
- 25 ???New14???
- M16
- 16 ???New14???
- M20
- 11
- M25
- 9
- M32
- 4
- M40
- 4
- M50
- 2
- M63
- 1
- M75
- 1
Cable Glands, Right
- M12
- 25 ???New14???
- M16
- 16 ???New14???
- M20
- 11
- M25
- 9
- M32
- 4
- M40
- 4
- M50
- 2
- M63
- 1
- M75
- 1
Cable Glands, Top/Bottom
- M12
- 33 ???New14???
- M16
- 22
- M20
- 14 ???New14???
- M25
- 12 ???New14???
- M32
- 6
- M40
- 5
- M50
- 2
- M63
- 2
- M75
- 1
Certificate Numbers Enclosure
- Certificate no. assembled enclosure (AEx)
- E223792
- Certificate no. assembled enclosure (ATEX)
- IBExU14ATEX1050
- Certificate no., assembled enclosure (EAC)
- RU C-DE.ГБ08.B.01328
- Certificate no. assembled enclosure (IECEx)
- IECEXIBE14.0013
- Certificate no. assembled enclosure (INMETRO)
- IEx 17.0021
- Certificate no., assembled enclosure (KOSHA)
- 16-AV4BO-0245X
- Certificate no. assembled enclosure (NEPSI)
- GYJ14.1309
- Certificate No. (CCOE)
- CCOEP267536/1
- Certificate no. (cULus)
- E243298
- Certificate no. empty enclosure (ATEX)
- IBExU14ATEX1028 U
- Certificate no., empty enclosure (EAC)
- RU C-DE.ГБ08.B.00472
- Certificate no. empty enclosure (IECEx)
- IECEx IBE 14.0004U
- Certificate no. empty enclosure (INMETRO)
- IEx 17.0020U
- Certificate no. empty enclosure (NEPSI)
- GYJ14.1308U
- Certificate No. (MARITREG)
- 15.40073.250
Classifications
- eClass 10.0
- 27-18-05-02
- eClass 9.0
- 27-18-05-02
- eClass 9.1
- 27-18-05-02
- ETIM 6.0
- EC002503
- ETIM 7.0
- EC002503
Dimensions And Weights
- Depth
- 200 mm
- Depth (inches)
- 7.874 inch
- Height
- 260 mm
- Height (inches)
- 10.236 inch
- Mounting dimension - height
- 170 mm
- Mounting dimension - width
- 286 mm
- Net weight
- 5,620 g
- Width
- 260 mm
- Width (inches)
- 10.236 inch
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
General Information
- Access opening: height
- 207 mm
- Access opening: width
- 201 mm
- AF size 1
- 10 mm
- Areas of use
- Explosive risk zone, Process industry, Oil and gas industry, Chemical industry, Offshore, Onshore
- Enclosure attachment
- 4 welded-on mounting feet with 11 mm holes (2 slotted feet and 2 cross-shaped feet)
- Gland plates
- Bottom
- Impact resistance
- 7 J ATEX version, 10 J version standard
- Installation advice
- Terminal rail / mounting plate
- Integral fixing
- 4, 6 or 9 stud bolts M6 inner (female) thread
- Lid attachment
- 4 hinges and M6 hex-head slotted screws SW10
- Material
- Stainless steel 1.4404 (316L)
- Material thickness
- 1.5 mm
- Material thickness of cover
- 1.5 mm
- Material thickness of flange
- 3 mm
- Max. payload
- 27 kg
- Note: protection class
- If used in temperature ranges above 105 °C, IP protection is limited to IP 66.
- Opening angle lid
- 130 °
- Operating temperature, max.
- 135 °C
- Operating temperature, min.
- -60 °C
- Overall dimensions
- 271 x 311 x 215
- Position PE bolts
- Page C
- Protection degree
- IP66, IP67
- Seal material
- Silicone
- Standards
- DIN EN 62208 - Empty enclosure standard, DIN EN 61373 Class 1B**, DIN EN 15085-2, EN 60079-0, EN 60079-7, EN 60079-31, IEC 60079-0, IEC 60079-7, IEC 60079-31
- Surface finish
- electropolished
- Torque for lid screws
- 2.5 Nm
Horizontal Assembly
- WDU 10 / ZDU 10
- 1x17
- WDU 16 / ZDU 16
- 1x14
- WDU 2,5 / ZDU 2,5 / IDU 2,5
- 2x34
- WDU 4 / ZDU 4
- 1x29
- WDU 6 / ZDU 6
- 1x22
Housing Earth
- Earth, enclosure, internal
- Welded-on M6 stainless-steel earth stud in enclosure body and lid.
Product Information
- Product information
- *A customised test is required to guarantee application compliance
Vertical Assembly
- WDU 10 / ZDU 10
- 1x18
- WDU 16 / ZDU 16
- 1x15
- WDU 2,5 / ZDU 2,5 / IDU 2,5
- 2x35
- WDU 4 / ZDU 4
- 1x30
- WDU 6 / ZDU 6
- 1x22
