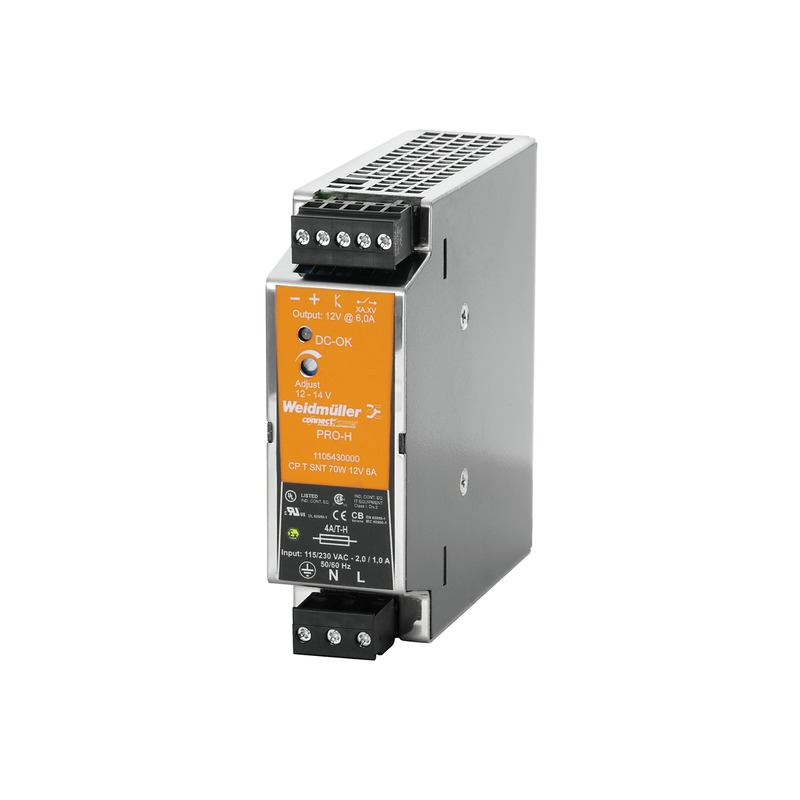

Weidmuller 1194420000

Approvals

• Approvals
  • CE
  • UL
  • EAC
  • BVATEX
• Certificate No. (UL)
  • E258476
• Institute (UL)
  • icon
• ROHS
  • Conform
• UL File Number Search
  • E258476

Classifications

• eClass 6.2
  • 27-04-90-02
• eClass 7.1
  • 27-04-90-04
• eClass 8.1
  • 27-04-90-04
• eClass 9.0
  • 27-04-07-03
• eClass 9.1
  • 27-04-07-01
• ETIM 5.0
  • EC002541
• ETIM 6.0
  • EC002540

Connection Data (Input)

• Conductor cross-section, AWG/kcmil , max.
  • 12
• Conductor cross-section, AWG/kcmil , min.
  • 24
• Conductor cross-section, flexible , min.
  • 0.5 mm²
• Conductor cross-section, rigid , max.
  • 2.5 mm²
• Conductor cross-section, rigid , min.
  • 0.5 mm²
• Connection system
  • Screw connection
• Number of terminals
  • 3 for L/N/PE
• Tightening torque, max.
  • 0.6 Nm
• Tightening torque, min.
  • 0.5 Nm
• Wire connection cross section, flexible (input), max.
  • 2.5 mm²

Connection Data (Output)

• Conductor cross-section, AWG/kcmil , max.
  • 12
• Conductor cross-section, AWG/kcmil , min.
  • 24
• Conductor cross-section, flexible , max.
  • 2.5 mm²
• Conductor cross-section, flexible , min.
  • 0.5 mm²
• Conductor cross-section, rigid , max.
  • 2.5 mm²
• Conductor cross-section, rigid , min.
  • 1 mm²
• Number of terminals
  • 2 (+ / -)
• Tightening torque, max.
  • 0.6 Nm
• Tightening torque, min.
  • 0.5 Nm

Connection Data (Signal)

• Number of terminals
  • 3
• Wire connection method
  • Pluggable screw connection
• Wire cross-section, AWG/kcmil , max.
  • 12
• Wire cross-section, AWG/kcmil , min.
  • 32
• Wire cross-section, solid , max.
  • 2.5 mm²
• Wire cross-section, solid , min.
  • 0.2 mm²

Dimensions And Weights

• Depth
  • 110 mm
• Depth (inches)
  • 4.331 inch
• Height
  • 110 mm
• Height (inches)
  • 4.331 inch
• Net weight
  • 498 g
• Width
  • 35 mm
• Width (inches)
  • 1.378 inch

Electrical Safety (Applied Standards)

• Electrical machine equipment
  • Acc. to EN60204
• For use with electronic equipment
  • Acc. to EN50178 / VDE0160
• Safety extra-low voltage
  • SELV in accordance with EN60950
• Safety transformers for switch-mode power supplies
  • in accordance with EN 61558-2-4

Emc / Shock / Vibration

• Interference immunity test acc. to
  • EN 61000-4-2 (ESD)|EN 61000-4-3 and EN 61000-4-8 (fields)|EN 61000-4-4 (burst)|EN 61000-4-5 (surge)|EN 61000-4-6 (conducted)|EN 61000-4-11 (dips)
• Limiting of mains voltage harmonic currents
  • in accordance with EN 61000-3-2
• Noise emission acc. to EN55022
  • Class B
• Shock resistance IEC 60068-2-27
  • 3 axes, half sinus, 15 g, 11 ms
• Vibration resistance IEC 60068-2-6
  • 3 axes, sinus, 10…55 Hz, 1 g, 1 oct/min.

General Data

• AC failure bridging time @ I
  • min. 20 ms @ 230 V AC, min. 10 ms @ 115 V AC
• Current limiting
  • > 100 % I
• Degree of efficiency
  • typ. 87 % @ 230 V AC
• Housing version
  • Metal, corrosion resistant
• Humidity
  • 0...95 % (no condensation)
• Indication
  • Dual LED Operational: green LED, Error: red LED
• Mounting position, installation notice
  • Horizontal on TS35 rail, with 80 mm of clearance at top and bottom for air circulation; can be aligned side-by-side with 50 mm gap in between.
• MTBF
  • > 1.8 mill. h
• Operating temperature
  • -25 °C...70 °C
• Protection degree
  • IP20
• Short-circuit protection
  • Yes

General Ordering Data

• Alternative product
  • 2467040000
• Available until
  • 2019-06-30
• Delivery status
  • This article will no longer be available in the future.
• GTIN (EAN)
  • 4032248977215
• Order No.
  • 1194420000
• Qty.
  • 1 pc(s).
• Type
  • CP T SNT 90W 48V 2A
• Version
  • Power supply, switch-mode power supply unit, 48 V

Input

• AC current consumption
  • 1 A @ 230 V AC, 2.1 A @ 115 V AC
• AC input voltage range
  • 85...264 V AC
• Connection system
  • Screw connection
• Frequency range AC
  • 47...63 Hz
• Input fuse (internal)
  • 4 A
• Inrush current
  • < 20 A (230 V AC)
• Rated input voltage
  • 100...240 V AC (wide-range input)
• Recommended back-up fuse
  • 6…16 A, char. B, circuit breaker
• Wire connection method
  • Screw connection

Insulation Coordination

• Class of protection
  • I, with PE connection
• Insulation voltage
  • 4 kV (input / output)
• Pollution severity
  • 2

Output

• Conductor cross-section, AWG/kcmil , max.
  • 12
• Conductor cross-section, AWG/kcmil , min.
  • 24
• Conductor cross-section, flexible , max.
  • 2.5 mm²
• Conductor cross-section, flexible , min.
  • 0.5 mm²
• Conductor cross-section, rigid , max.
  • 2.5 mm²
• Conductor cross-section, rigid , min.
  • 1 mm²
• Continuous output current @ U
  • 2 A @ 40 °C, 1.3 A @ 60 °C, 0.8 A @ 70 °C
• Number of terminals
  • 2 (+ / -)
• Output power
  • 90 W
• Output voltage
  • 48...56 V (adjustable via potentiometer on front)
  • 48 V
• Output voltage type
  • DC
• Parallel connection option
  • yes, max. 5
• Rated (nominal) output current @ U
  • 2 A @ 40 °C
• Rated output voltage
  • 48 V DC ± 1 %
• Residual ripple, breaking spikes
  • @ 48 V DC, I
  • 100 mV
• Tightening torque, max.
  • 0.6 Nm
• Tightening torque, min.
  • 0.5 Nm
• Wire connection method
  • Screw connection

Product Information

• Descriptive text ordering data
  • The internal varistor found in a switch-mode power unit does not replace the necessary surge protection in a system.

Rated Data Ul

• Certificate No. (UL)
  • E258476

Signalling

• Active output signal
  • 22 V DC ± 2 V DC / max. 10 mA
• Power Good Signal
  • Trigger point 36…44 V DC

Temperatures

• Humidity
  • 0...95 % (no condensation)
• Operating temperature
  • -25 °C...70 °C
• Storage temperature
  • -25 °C...85 °C
