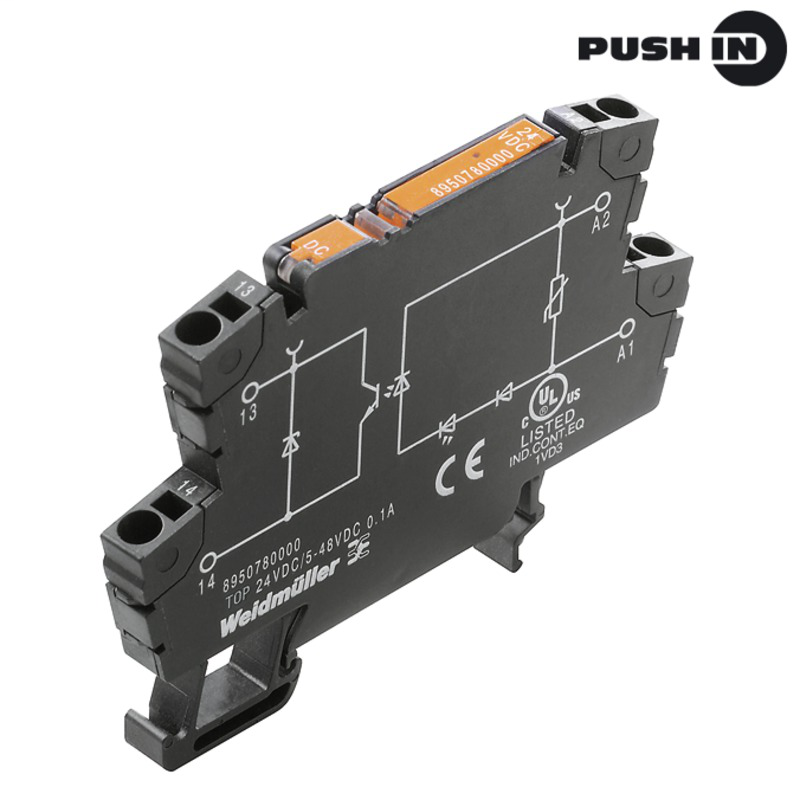

Weidmuller 1188830000
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
TERMOPTO, solid-state relais, 1 NO contact (Transistor), Rated control voltage: 120 V AC ±20 % , Rated switching voltage: 5...48 V DC, Continuous current: 500 mA, PUSH INTOP 120VAC/48VDC 0.5A RC
Weidmuller 1188830000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Approvals
- Approvals
- CE, CULUS, EAC
- ROHS
- Conform
- UL File Number Search
- E223474
Classifications
- eClass 10.0
- 27-37-16-04
- eClass 9.0
- 27-37-16-04
- eClass 9.1
- 27-37-16-04
- ETIM 6.0
- EC001504
- ETIM 7.0
- EC001504
Connection Data
- Blade size
- 0.6 x 3.5 mm
- Clamping range, max.
- 2.5 mm²
- Clamping range, min.
- 0.5 mm²
- Clamping range, rated connection
- 1.5 mm²
- Conductor cross-section, flexible, AEH (DIN 46228-1), max.
- 1.5 mm²
- Conductor cross-section, flexible, AEH (DIN 46228-1), min.
- 0.5 mm²
- Stripping length, rated connection
- 10 mm
- Wire connection cross section AWG, max.
- AWG 14
- Wire connection cross section AWG, min.
- AWG 20
- Wire connection cross section, finely stranded, max.
- 1.5 mm²
- Wire connection cross-section, finely stranded, min.
- 0.5 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
- 1.5 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
- 0.5 mm²
- Wire connection method
- PUSH IN
- Wire cross-section, finely stranded, max. (AWG)
- AWG 14
- Wire cross-section, finely stranded, min. (AWG)
- AWG 20
- Wire cross-section, solid, max.
- 1.5 mm²
- Wire cross-section, solid, min.
- 0.5 mm²
Contact Data
- Contact type
- 1 NO contact (Transistor)
Control Side
- Cut-in / dropout voltage
- 102 V / 48 V AC
- Nominal control current
- 6.4 mA AC
- Power rating
- ≤ 0.61 VA
- Protective circuit
- RC element, Rectifier
- Rated control voltage
- 120 V AC ±20 %
- Status indicator
- Green LED
Dimensions And Weights
- Depth
- 55 mm
- Depth (inches)
- 2.165 inch
- Height
- 79.4 mm
- Height (inches)
- 3.126 inch
- Net weight
- 19.7 g
- Width
- 6.1 mm
- Width (inches)
- 0.24 inch
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Further Details Of Approvals / Standards
- Certificate no. (cULus)
- E223474
- Standards
- DIN EN 50178, IEC 62314, UL508
General Data
- Colour
- black
- Rail
- TS 35
- UL 94 flammability rating
- V-0
Insulation Coordination
- Clearance and creepage distances for control side - load side
- > 3 mm
- Dielectric strength for control side - load side
- 1.2 kVeff / 1 min.
- Impulse withstand voltage
- 4 kV (1.2/50 µs)
- Pollution severity
- 2
- Protection degree
- IP20
- Rated voltage
- 300 V
- Surge voltage category
- III
Load Side
- Continuous current
- 500 mA
- Leakage current
- < 10 µA
- Load category
- DC1
- max. switching frequency (AC control voltage)
- 10 Hz
- Protective circuit, load side
- Diode circuit
- Rated switching current
- 500 mA
- Rated switching voltage
- 5...48 V DC
- Short-circuit-proof
- No
- Switch-off delay
- < 20.8 ms
- Switch-on delay
- < 12.6 ms
- Voltage drop at max. load
- < 1 V
Probability Of Failure
- MTTF
- 2,500 Years
Ratings Iecex/Atex/Cul
- Certificate no. (cULus)
- E223474
Temperatures
- Humidity
- 5-95% relative humidity, Tu = 40°C, without condensation
- Operating temperature
- -20 °C...60 °C
- Operating temperature, max.
- 60 °C
- Operating temperature, min.
- -20 °C
- Storage temperature
- -40 °C...80 °C
- Storage temperature, max.
- 80 °C
- Storage temperature, min.
- -40 °C
