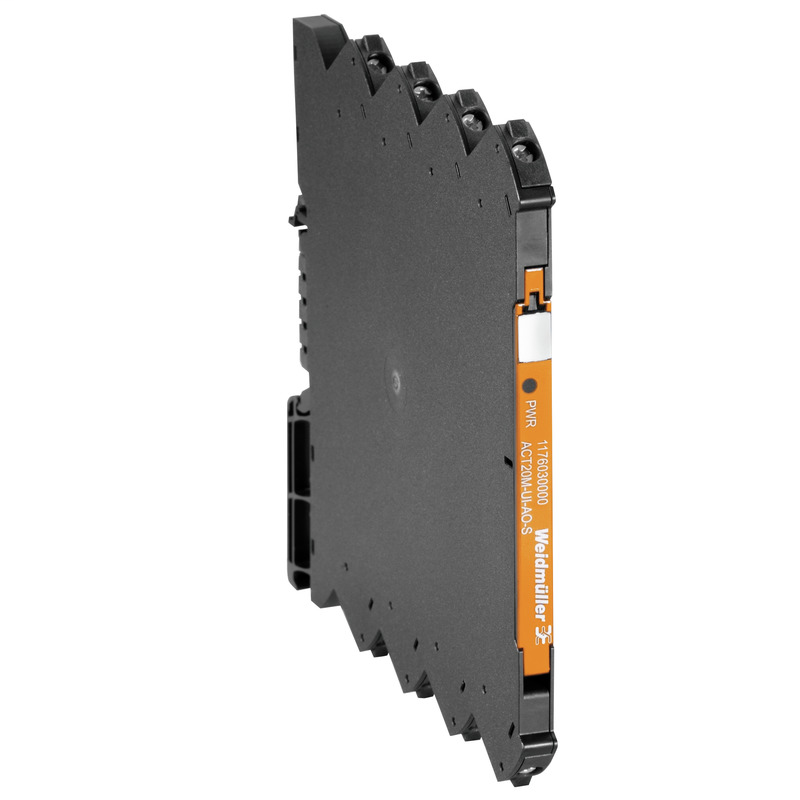

Weidmuller 1176080000

Approvals

• Approvals
  • CULUS, DETNORVER, DNV GL, EAC, FMEX, IECEXKEM, KEMAATEX
• ROHS
  • Conform
• UL File Number Search
  • E337701

Classifications

• eClass 10.0
  • 27-21-01-20
• eClass 9.0
  • 27-21-01-20
• eClass 9.1
  • 27-21-01-20
• ETIM 6.0
  • EC002653
• ETIM 7.0
  • EC002653

Connection Data

• Clamping range, max.
  • 2.5 mm²
• Clamping range, min.
  • 0.5 mm²
• Clamping range, rated connection
  • 2.5 mm²
• Tightening torque, max.
  • 0.6 Nm
• Tightening torque, min.
  • 0.4 Nm
• Type of connection
  • Screw connection
• Wire connection cross section AWG, max.
  • AWG 14
• Wire connection cross section AWG, min.
  • AWG 30

Data For Ex Applications (Atex)

• Marking
  • II 3 G Ex nA IIC T4 Gc

Dimensions And Weights

• Depth
  • 114.3 mm
• Depth (inches)
  • 4.5 inch
• Height
  • 112.5 mm
• Height (inches)
  • 4.429 inch
• Net weight
  • 97 g
• Width
  • 6.1 mm
• Width (inches)
  • 0.24 inch

Environmental Product Compliance

• REACH SVHC
  • Lead 7439-92-1

General Data

• Accuracy
  • < 0.1 % of measuring range
• Configuration
  • none
• Galvanic isolation
  • 2-way isolator
• Power consumption
  • 30 mW per channel
• Rail
  • TS 35
• Step response time
  • ≤ 5 ms
• Temperature coefficient
  • ≤ 0.01 % / °C
• Voltage supply
  • Loop powered, via 4…20 mA input

Input

• Input current
  • 0...20 mA, 4…20mA
• Input frequency
  • 100 Hz
• Number of inputs
  • 2
• Sensor
  • Current source
• Voltage drop, current input
  • 1.25 V + 0.015 Vout @25°C

Insulation Coordination

• EMC standards
  • IEC 61326-1, NE 21
• Galvanic isolation
  • 2-way isolator
• Insulation voltage
  • 2.5 kVeff
• Pollution severity
  • 2
• Rated voltage
  • 300 Veff
• Surge voltage category
  • II

Output

• Cut-off frequency (-3 dB)
  • 100 Hz
• load impedance current
  • ≤600 Ω (channel 1 + 2)
• Number of outputs
  • 2
• Output current
  • 0...20 mA, 4...20 mA

Probability Of Failure

• MTBF
  • 699 Years

Product Information

• Product information
  • The ACT20M-CI-CO-ILP-S passive isolator isolates standard analogue current signals. An analogue input current signal is linearly converted to an analogue output current signal and is galvanically isolated. Power is supplied through the input measuring circuit (input loop-powered). The passive isolator ACT20M-2CI-2CO-ILP-S offers the same functionality, but has two galvanically isolated channels.

Ratings Iecex/Atex/Cul

• Certificate No. (ATEX)
  • KEMA10ATEX0183X
• Certificate no. (cULus)
  • E337701
• Certificate No. (IECEX)
  • IECEXKEM10.0090X

Temperatures

• Ambient temperature
  • -25 °C...+70 °C
• Humidity
  • 40 °C / 93 % rel. humidity, no condensation
• Operating temperature
  • -25 °C...70 °C
• Operating temperature, max.
  • 70 °C
• Operating temperature, min.
  • -25 °C
• Storage temperature
  • -40 °C...85 °C
• Storage temperature, max.
  • 85 °C
• Storage temperature, min.
  • -40 °C

Tender Specification Sheets

• Long specification
  • Standard signal passive isolator2-channel passive isolator in 6.1 mm width input-loop powered,for transmitting and isolating analogue DC current signals 0/4...20 mA.Add-on housing for TS35 rail mountingDimensions: L/W/H 114.3/ 6.1/ 112.5 mmScrew connection / Nominal cross-section 2.5 mm2Protection degree: IP 20   Input                         0/4...20 mAOutput                                             0/4...20 mALoad resistance             < 600 OhmTransmission error               < 0,1 % v. E. Limit frequency 100 Hz Auxiliary power                                     0/4...20 mA input current loop Power loss approx. 1.3 W Ambient temperature range -25 °C...+70 °CIsolation                                EN 61010-1, 2-way isolation up to 2.5 kV AC/DCTest voltage                               2.5 kV input against output against auxiliary powerRated voltage                                         300 V AC/DC at overvoltage category II and pollution degree 2Approvals cULus, FM Div2, ATEX Zone2, DNV, GLType                                                             ACT20M-2CI-2CO-ILP-S
• Short specification
  • Standard signal passive isolator2-channel signal passive isolator in 6.1 mm width with input current loop feed,for transmitting and isolating analogue DC current signals from 0/4 to 20 mA
