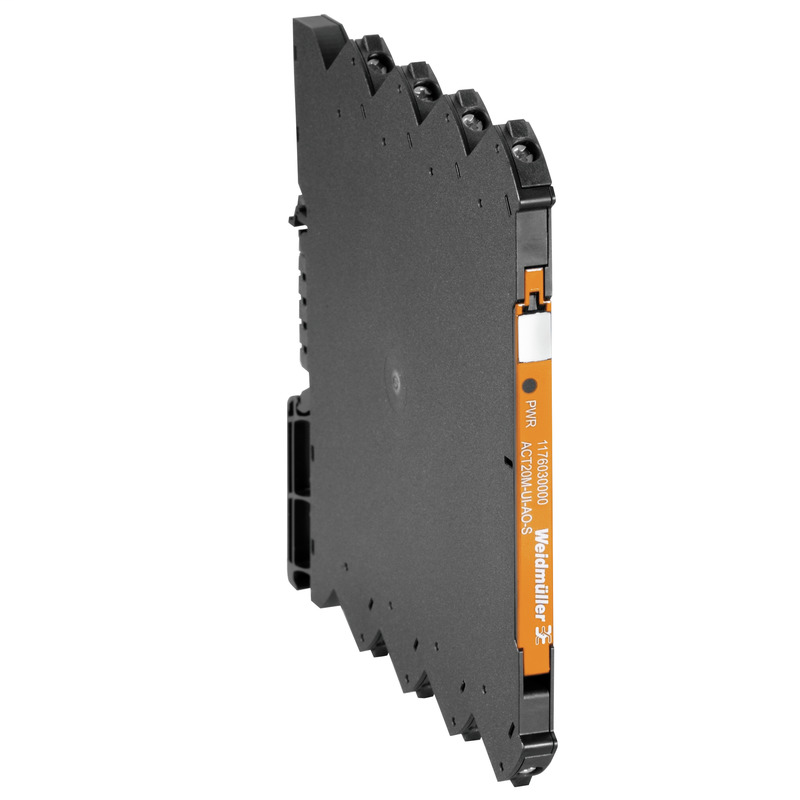

Weidmuller 1176040000

Approvals

• Approvals
  • CULUS, DETNORVER, DNV GL, EAC, FMEX, IECEXKEM, KEMAATEX
• ROHS
  • Conform
• UL File Number Search
  • E337701

Classifications

• eClass 10.0
  • 27-21-01-20
• eClass 9.0
  • 27-21-01-20
• eClass 9.1
  • 27-21-01-20
• ETIM 6.0
  • EC002653
• ETIM 7.0
  • EC002653

Connection Data

• Clamping range, max.
  • 2.5 mm²
• Clamping range, min.
  • 0.5 mm²
• Clamping range, rated connection
  • 2.5 mm²
• Tightening torque, max.
  • 0.6 Nm
• Tightening torque, min.
  • 0.4 Nm
• Type of connection
  • Screw connection
• Wire connection cross section AWG, max.
  • AWG 14
• Wire connection cross section AWG, min.
  • AWG 30

Data For Ex Applications (Atex)

• Marking
  • II 3 G Ex nA IIC T4 Gc

Dimensions And Weights

• Depth
  • 114.3 mm
• Depth (inches)
  • 4.5 inch
• Height
  • 112.5 mm
• Height (inches)
  • 4.429 inch
• Net weight
  • 80 g
• Width
  • 6.1 mm
• Width (inches)
  • 0.24 inch

Environmental Product Compliance

• REACH SVHC
  • Lead 7439-92-1

General Data

• Accuracy
  • < 0.05 % of measuring range
• Configuration
  • none
• Galvanic isolation
  • 2-way isolator
• Power consumption, max.
  • 0.5 W
• Rail
  • TS 35
• Step response time
  • ≤ 5 ms
• Temperature coefficient
  • ≤±0.02 µA x (Δ °C x V supply) @ Tamb > 25 °C
• Voltage supply
  • Output loop powered

Input

• Input current
  • 4…20mA
• Number of inputs
  • 1
• Sensor
  • 2-wire transmitter (without own power supply)
• Sensor supply
  • 6…35 V (@ 20 mA)
• Voltage drop, current input
  • Typical 2.5 V

Insulation Coordination

• EMC standards
  • IEC 61326-1, NE 21
• Galvanic isolation
  • 2-way isolator
• Insulation voltage
  • 2.5 kVeff /1 min.
• Pollution severity
  • 2
• Rated voltage
  • 300 Veff
• Surge voltage category
  • II

Output

• Cut-off frequency (-3 dB)
  • 100 Hz
• load impedance current
  • ≤600 Ω (channel 1 + 2), @ max 23mA
• Number of outputs
  • 1
• Output current
  • 4...20 mA
• Supply voltage (output)
  • 6…35 V

Product Information

• Product information
  • The passive isolator ACT20M-CI-CO-OLP-S isolates standard analogue current signals. An analogue input current signal is linearly converted into an analogue output current signal and is galvanically isolated. Power is supplied through the output measuring circuit (output loop-powered).

Rated Data Ul

• UL certificate
  • E337701.pdf

Ratings Iecex/Atex/Cul

• Certificate No. (ATEX)
  • KEMA10ATEX0183X
• Certificate no. (cULus)
  • E337701
• Certificate No. (IECEX)
  • IECEXKEM10.0090X

Temperatures

• Ambient temperature
  • -25 °C...+70 °C
• Humidity
  • 40 °C / 93 % rel. humidity, no condensation
• Operating temperature
  • -25 °C...70 °C
• Operating temperature, max.
  • 70 °C
• Operating temperature, min.
  • -25 °C
• Storage temperature
  • -40 °C...85 °C
• Storage temperature, max.
  • 85 °C
• Storage temperature, min.
  • -40 °C

Tender Specification Sheets

• Long specification
  • Standard signal isolating amplifier1-channel signal isolating amplifier in 6.1 mm width output-loop powered,for transmitting and isolating analogue DC current signals 0/4...20 mA.Add-on housing for TS35 rail mountingDimensions: L/W/H 114.3/ 6.1/ 112.5 mmScrew connection / Nominal cross-section 2.5 mm2Protection degree: IP 20   Input                         0/4...20 mAOutput                                             0/4...20 mALoad resistance             < 600 OhmTransmission error             < 0,1 % v. E. Limit frequency 100 HzAuxiliary power                                     0/4...20 mA output current loopPower loss approx. 0.9 WAmbient temperature range -25 °C...+70 °C Isolation                                EN 61010-1, 2-way isolation up to 2.5 kV AC/DCTest voltage                               2.5 kV input against output against auxiliary powerRated voltage                                          300 V AC/DC at overvoltage category II and pollution degree 2Approvals cULus, FM Div2, ATEX Zone2, DNV, GLType                                                             ACT20M-CI-CO-OLP-S
• Short specification
  • Standard signal isolating amplifier1-channel signal isolating amplifier in 6.1 mm width with output current loop feed,for transmitting and isolating analogue DC current signals from 0/4 to 20 mA.
