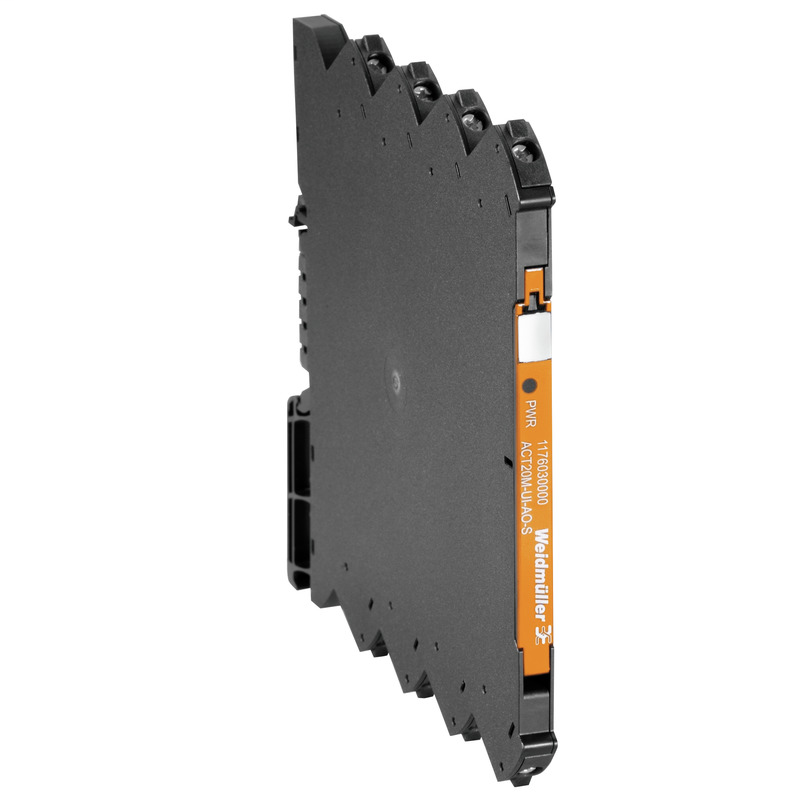

Weidmuller 1176010000

Approvals

• Approvals
  • CE, CULUS, DETNORVER, DNV GL, EAC
• ROHS
  • Conform
• UL File Number Search
  • E337701

Classifications

• eClass 10.0
  • 27-21-01-20
• eClass 9.0
  • 27-21-01-20
• eClass 9.1
  • 27-21-01-20
• ETIM 6.0
  • EC002653
• ETIM 7.0
  • EC002653

Connection Data

• Clamping range, max.
  • 2.5 mm²
• Clamping range, min.
  • 0.5 mm²
• Clamping range, rated connection
  • 2.5 mm²
• Tightening torque, max.
  • 0.6 Nm
• Tightening torque, min.
  • 0.4 Nm
• Type of connection
  • Screw connection
• Wire connection cross section AWG, max.
  • AWG 14
• Wire connection cross section AWG, min.
  • AWG 30

Dimensions And Weights

• Depth
  • 114.3 mm
• Depth (inches)
  • 4.5 inch
• Height
  • 112.5 mm
• Height (inches)
  • 4.429 inch
• Net weight
  • 83.5 g
• Width
  • 6.1 mm
• Width (inches)
  • 0.24 inch

Environmental Product Compliance

• REACH SVHC
  • Lead 7439-92-1

General Data

• Accuracy
  • < 0.2 % of measuring range
• Configuration
  • DIP switch
• Galvanic isolation
  • 3-way isolator
• Power consumption, max.
  • 0.8 W
• Power consumption, typ.
  • 0.56 W
• Rail
  • TS 35
• Step response time
  • ≤ 7 ms
• Temperature coefficient
  • ≤ 0.015 % / °C
• Voltage supply
  • 24 V DC ± 30 %

Input

• Input current
  • configurable, 0...20 mA, 4…20mA
• Input frequency
  • 100 Hz
• Input resistance, current
  • 70 Ω
• Input resistance, voltage
  • >500 kΩ
• Input voltage
  • configurable, 0(2)…10 V, 0(1)…5 V
• Number of inputs
  • 1
• Sensor
  • Voltage source, Current source
• Voltage drop
  • <1,5 V
• Voltage drop, current input
  • <1,5 V

Insulation Coordination

• EMC standards
  • IEC 61326-1, NE 21
• Galvanic isolation
  • 3-way isolator
• Insulation voltage
  • 2.5 kVeff /1 min.
• Pollution severity
  • 2
• Rated voltage
  • 300 Veff
• Surge voltage category
  • II

Output

• Cut-off frequency (-3 dB)
  • 100 Hz
• load impedance current
  • ≤ 600 Ω, @ max 23mA
• load impedance voltage
  • ≥ 10 kΩ
• Number of outputs
  • 1
• Output current
  • configurable, 0...20 mA, 4...20 mA
• Output voltage, note
  • configurable, 0(2)...10 V, 0(1)...5 V

Probability Of Failure

• MTBF
  • 249 Years

Product Information

• Product information
  • The configurable DC isolating amplifier ACT20M-AI-AO-E-S isolates and converts analogue signals. An analogue input signal is linearly converted into an analogue output signal and galvanically isolated. The power supply is galvanically isolated from the input and output (3-way isolation) by means of direct wiring or the Weidmüller rail bus.

Rated Data Ul

• UL certificate
  • E337701.pdf

Ratings Iecex/Atex/Cul

• Certificate no. (cULus)
  • E337701

Temperatures

• Ambient temperature
  • -25 °C...+70 °C
• Humidity
  • 40 °C / 93 % rel. humidity, no condensation
• Operating temperature
  • 0 °C...70 °C
• Operating temperature, max.
  • 70 °C
• Operating temperature, min.
  • 0 °C
• Storage temperature
  • -40 °C...85 °C
• Storage temperature, max.
  • 85 °C
• Storage temperature, min.
  • -40 °C

Tender Specification Sheets

• Long specification
  • Universal standard signal isolating amplifier1-channel signal isolating amplifier in 6.1 mm width with external power supply,for transmitting and isolating analogue DC current signals 0/4 to 20 mA and voltage signals 0/2 to 10 V // 0/1 to 5 V. Input and output signals can be configured with DIP switches.Add-on housing for TS35 rail mounting Dimensions: L/W/H  114.3/ 6.1/ 112.5 mm Screw connection / Nominal cross-section 2.5 mm2Protection degree: IP 20  Input                         0/4...20 mA                                       0/2...10 V or 0/1...10 V Isolation                       EN 61010-1, 3-way isolation up to 2.5 kV AC/DC of all circuits against each otherTest voltage                2.5 kV input against output against auxiliary powerRated voltage                     300 V AC/DC at overvoltage category II and pollution degree 2 Approvals                 cULus, DNV, GL Output                       0/4...20 mA                                       0/2...10 V or 0/1...5 V Load resistance             < 600 Ohm/ Strom/> 10 kOhm/ voltageTransmission error       < 0,2 % v. E.  Limit frequency              100 HzAuxiliary power                   24 VDC +/- 30 % Power loss                approx. 0.8 W Ambient temperature range         0 °C...+70 °C Type                                ACT20M-AI-AO-E-S
• Short specification
  • Universal standard signal isolating amplifier1-channel signal isolating amplifier in 6.1 mm width with external power supply,for transmitting and isolating analogue DC current signals 0/4...20 mA and voltage signals0/2...10V // 0/1...5 V. I/O signals are configured with DIP switches.
