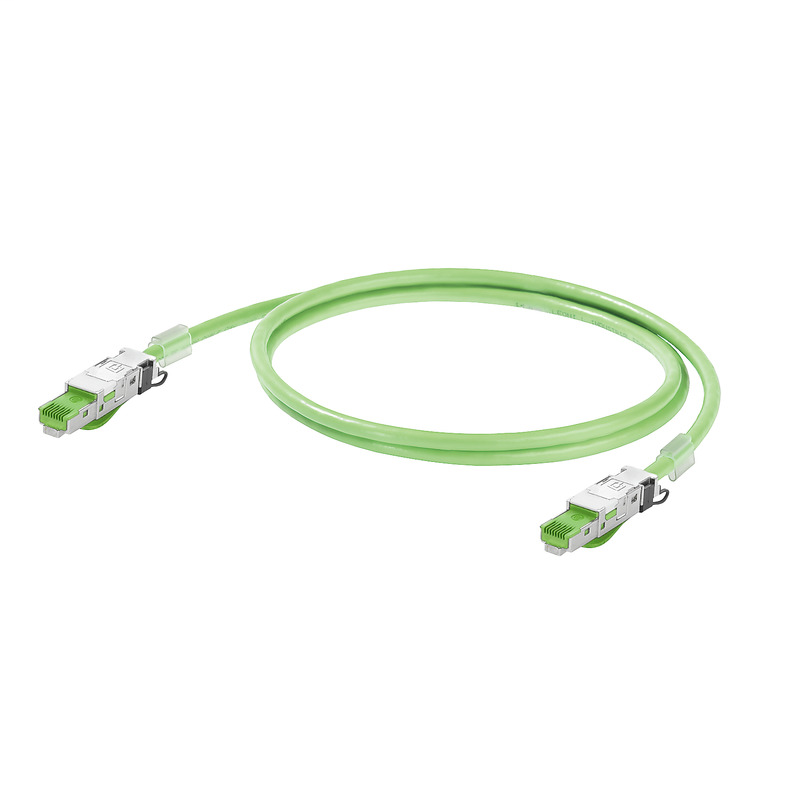

Weidmuller 1173030100
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Dragline cable, PROFINET, RJ45 IP 20, RJ45 IP 20, Cat.5 (ISO/IEC 11801) / Cat.5e (TIA T568-B), PUR, 10 mIE-C5DD4UG0100A20A20-E
Weidmuller 1173030100 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Approvals
- Approvals
- CULUS
- ROHS
- Conform
- UL File Number Search
- E316369
Cable Structure
- Arrangement of wire cores
- Star-quad
- Colour sequence or wires - wire pairs
- white, yellow, blue, orange
- Complete shielding
- Aluminium foil, Shielding braid made from copper wiring
- Cross-section
- 4*AWG 22/7 - 0.36 mm²
- Diameter of inner sheathing
- 3.9 mm
- Filler
- As central element
- Insulation
- PE
- Insulation cross-section
- 1.5 mm
- Material sheath
- PUR
- Number of wires
- 4
- Overlap of shielding braid
- 85 %
- Sheath diameter, max.
- 6.7 mm
- Sheath diameter, min.
- 6.3 mm
- Sheathing colour
- green (RAL 6018)
- Sheathing material thickness
- 0.9 mm
- Shielding
- SF/UTP
- Shielding braid thickness
- 0.13 mm
- Standard designations
- 2YH(ST)C11Y 2x2x0,75/1,5-100 LI VZN GN FRNC
- Strands
- 7
- Wire core insulation thickness
- 0.38 mm
- Wire material
- Stranded tin-plated copper wire
Classifications
- eClass 10.0
- 27-06-03-08
- eClass 9.0
- 27-06-03-08
- eClass 9.1
- 27-06-03-08
- ETIM 6.0
- EC002599
- ETIM 7.0
- EC002599
Dimensions And Weights
- Insulation cross-section
- 1.5 mm
- Length
- 10 m
- Length (inches)
- 0.394 inch
- Net weight
- 661 g
Electrical Properties
- Insulation strength
- 500,000 Ω
Electrical Properties Of Cable
- Capacity at 1 kHz
- 52 nF/km
- Category
- Cat.5 (ISO/IEC 11801) / Cat.5e (TIA T568-B)
- Characteristic impedance
- 100 ± 15 Ω at 1–100 MHz
- Deviation
- 40 ns/100m
- Insulation strength
- 500,000 Ω
- Loop resistance
- 120 Ω/km
- Operating voltage (UL rating)
- 600 V undefined
- Resistance differential
- 3 %
- Signal propagation time
- 5.3 ns/m
- Speed
- 180 m/min
- Test voltage: wire-wire-shield
- 2000 Veff, 50 Hz, 1 min
- Transfer impedance
- 20 mΩ/m at 10 MHz
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Mechanical And Material Properties Of Cable
- Abrasion resistance
- very good
- Acceleration
- 4 m/s²
- Bending cycles
- 3 Mio
- Fire propagation
- No
- Halogen
- halogen-free, according to IEC 60754-2
- Min. bending radius, once only
- 5 x cable diameter
- Min. bending radius, repetitive
- 7.5 x cable diameter
- Pulling force
- ≤ 150 N
- Resistance to oils
- in accordance with IEC 60811-2-1
- Resistance to spread of flame
- in accordance with IEC 60332-1
- Silicone-free
- Yes
- Speed
- 180 m/min
- UV-resistant
- Yes
Plug
- Connector left
- RJ45 IP 20
- Connector right
- RJ45 IP 20
Standards
- Certificate no. (cULus)
- E316369
- Connector standard
- IEC 60603-7-51
- Standard, insulating material
- DIN EN 50290-2-23 (VDE 0819) Table 2/A (HD 624.3)
- Standard, shielding material
- DIN EN 13602 Cu-ETP-A..B
- Standard, wire material
- DIN EN 13602 Cu-ETP-A
Temperatures
- Installation temperature
- -20 °C...60 °C
- Operating temperature
- -40 °C...70 °C
- Operating temperature, max.
- 70 °C
- Operating temperature, min.
- -40 °C
- Storage temperature
- -50 °C...70 °C
- Storage temperature, max.
- 70 °C
- Storage temperature, min.
- -50 °C
