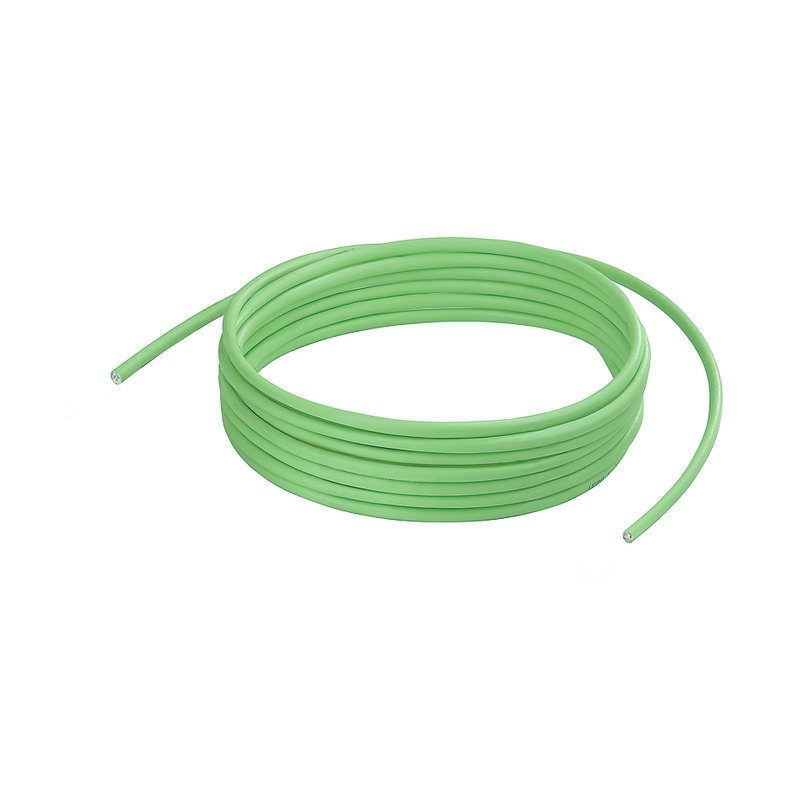

Weidmuller 1172250000
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Connecting line, Cat.5 (ISO/IEC 11801) / Cat.5e (TIA T568-B), PVC, Products sold by meter, from 110 mIE-C5DHAG-MW
Weidmuller 1172250000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Approvals
- ROHS
- Conform
Cable Structure
- Arrangement of wire cores
- Star-quad
- Complete shielding
- Aluminium foil, Shielding braid made from copper wiring
- Cross-section
- 4*AWG 22/7 - 0.36 mm², 6*0.5 mm²
- Diameter of inner sheathing
- 3.9 mm
- Filler
- As central element
- Insulation
- PE
- Insulation cross-section
- 1.5 mm
- Material sheath
- PVC
- Number of wires
- 4
- Overlap of shielding braid
- 85 %
- Sheath diameter, max.
- 9.5 mm
- Sheathing colour
- green (RAL 6018)
- Sheathing material thickness
- 0.9 mm
- Shielding
- SF/UTP
- Shielding braid thickness
- 0.13 mm
- Standard designations
- 2YY(ST)CY 2x2x0,75/1,5-100 LI VZN GN
- Strands
- 7
- Wire material
- Stranded tin-plated copper wire
Classifications
- eClass 10.0
- 27-06-01-05
- eClass 9.0
- 27-06-20-01
- eClass 9.1
- 27-06-90-90
- ETIM 6.0
- EC000993
- ETIM 7.0
- EC003248
Dimensions And Weights
- Insulation cross-section
- 1.5 mm
- Net weight
- 40 g
Electrical Properties
- Insulation strength
- 500,000 Ω
Electrical Properties Of Cable
- Category
- Cat.5 (ISO/IEC 11801) / Cat.5e (TIA T568-B)
- Characteristic impedance
- 100 ± 15 Ω at 1–100 MHz
- Insulation strength
- 500,000 Ω
- Loop resistance
- 120 Ω/km
- Signal propagation time
- 5.3 ns/m
- Test voltage: wire-wire-shield
- 2000 Veff, 50 Hz, 1 min
- Transfer impedance
- 20 mΩ/m at 10 MHz
Mechanical And Material Properties Of Cable
- Abrasion resistance
- good
- Halogen
- Yes
- Min. bending radius, once only
- 3.5 *diameter
- Min. bending radius, repetitive
- 7.5 x cable diameter
- Resistance to oils
- limited
- Resistance to spread of flame
- in accordance with IEC 60332-1 / UL 1685
Temperatures
- Installation temperature
- -20 °C...60 °C
- Operating temperature
- -40 °C...70 °C
- Operating temperature, max.
- 70 °C
- Operating temperature, min.
- -40 °C
- Storage temperature
- -40 °C...70 °C
- Storage temperature, max.
- 70 °C
- Storage temperature, min.
- -40 °C
