Weidmuller 1166020150
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

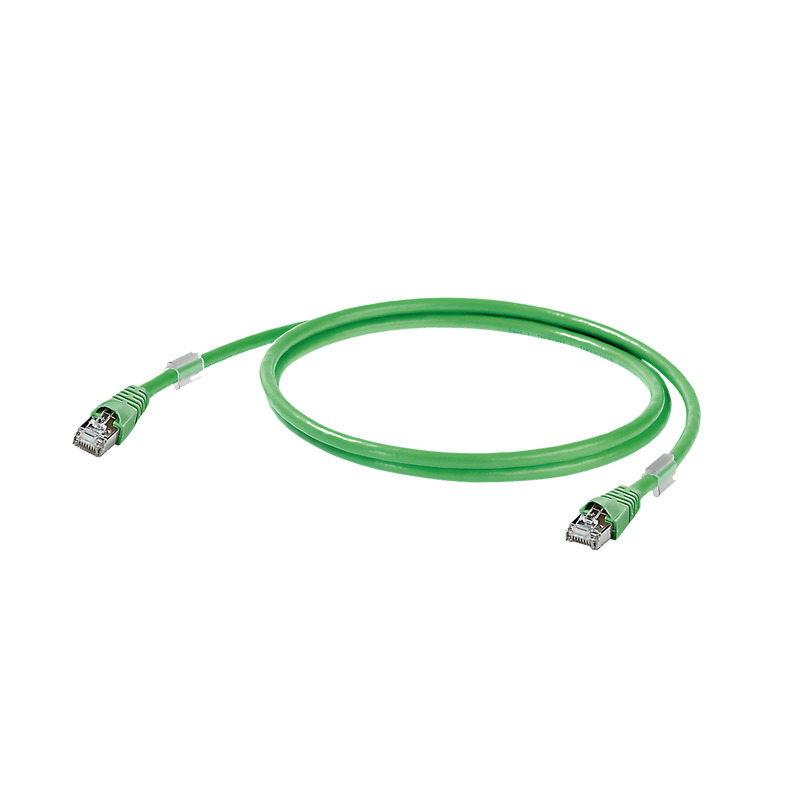

System cable, RJ45 IP 20, RJ45 IP 20, Cat.5 (ISO/IEC 11801), PVC, 15 mIE-C5ES8VG0150M40M40-G
Weidmuller 1166020150 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Approvals
- ROHS
- Conform
Cable Structure
- Arrangement of wire cores
- Twisted pair
- Colour sequence or wires - wire pairs
- white/blue - blue, white/orange - orange, white/green - green, white/brown - brown
- Complete shielding
- Shielding braid made from copper wiring
- Cross-section
- 4*2*AWG 26/7 - 4*2*0.128 mm²
- Diameter of wire pair
- 2.4 mm
- Insulation
- PE
- Insulation cross-section
- 0.98 mm
- Material sheath
- PVC
- Number of wires
- 8
- Overlap of shielding braid
- 70 %
- Sheath diameter, max.
- 5.8 mm
- Sheath diameter, min.
- 5.4 mm
- Sheathing colour
- green (RAL 6018)
- Sheathing material thickness
- 0.5 mm
- Shielding
- SF/UTP
- Shielding braid thickness
- 0.1 mm
- Standard designations
- LI02YSCY 4X2X0.15 PIMF GN, SF/UTP
- Strands
- 7
- Wire core insulation thickness
- 0.25 mm
- Wire material
- Stranded tin-plated copper wire
- Wire pair shielding
- Aluminium foil, Plastic foil
Classifications
- eClass 10.0
- 27-06-03-08
- eClass 9.0
- 27-06-03-08
- eClass 9.1
- 27-06-03-08
- ETIM 6.0
- EC002599
- ETIM 7.0
- EC002599
- UNSPSC
- 26-12-16-06
Dimensions And Weights
- Insulation cross-section
- 0.98 mm
- Length
- 15 m
- Length (inches)
- 0.591 inch
- Net weight
- 565 g
Electrical Properties
- Insulation strength
- 5000 MΩ
- Operating voltage
- 100 V
- PoE / PoE+
- conforming to IEEE 802.3at
Electrical Properties Of Cable
- Capacity at 1 kHz
- 48 nF/km
- Category
- Cat.5 (ISO/IEC 11801)
- Characteristic impedance
- 100 ± 5 Ω at 100MHz
- Deviation
- 25 ns/100m
- Insulation strength
- 5000 MΩ
- Loop resistance
- 150 Ω/km
- Operating voltage
- 100 V
- Operating voltage (UL rating)
- 30 V undefined
- Resistance differential
- 3 %
- Shield attenuation
- 55 dB at 30–600 MHz
- Signal propagation time
- 5.13 ns/m
- Test voltage: wire-wire-shield
- 750 V DC, 1 min
- Transfer impedance
- 15 mΩ/m at 1 MHz, 20 mΩ/m at 10 MHz, 30 mΩ/m at 30 MHz
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Mechanical And Material Properties Of Cable
- Abrasion resistance
- good
- Min. bending radius, once only
- 5 x cable diameter
- Min. bending radius, repetitive
- 10 x cable diameter
- Resistance to spread of flame
- in accordance with IEC 60332-1
Plug
- Connector left
- RJ45 IP 20
- Connector right
- RJ45 IP 20
Standards
- Connector standard
- IEC 60603-7-51
- Generic communication cable facilities
- ISO / IEC 11801:2002, EN 50173-1:2007
- Standard, assembly
- UL-Style 2879 (80°C/30V)
- Standard, insulating material
- DIN EN 50290-2-23 (VDE 0819) Table 2/A (HD 624.3)
- Standard, shielding material
- DIN EN 13602 Cu-ETP-A..B
- Standard, wire material
- DIN EN 13602 Cu-ETP-A
Temperatures
- Operating temperature
- -40 °C...75 °C
- Operating temperature, max.
- 75 °C
- Operating temperature, min.
- -40 °C
