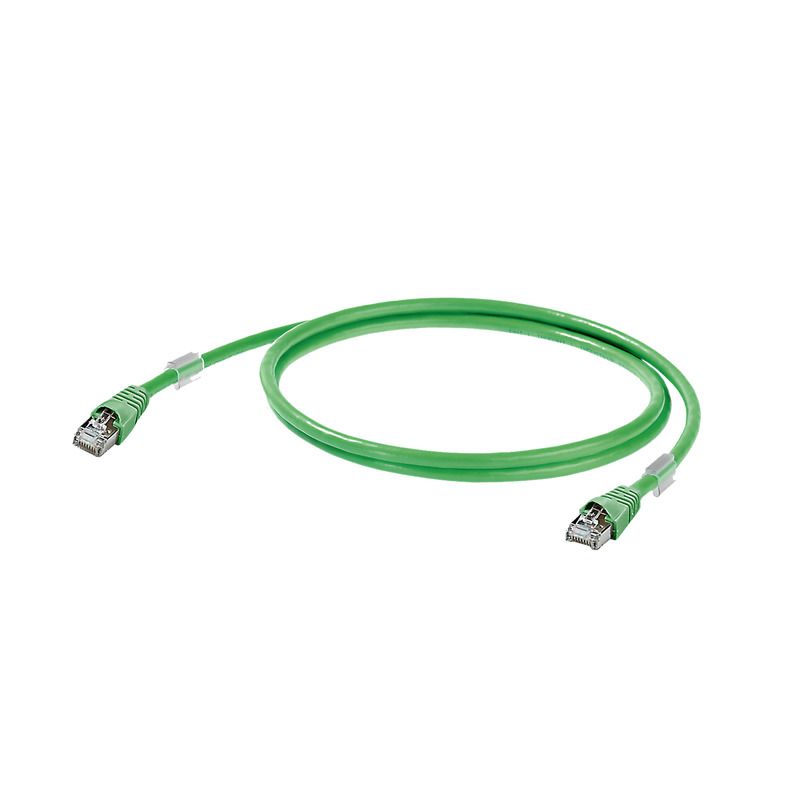

Weidmuller 1166000005
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
System cable, RJ45 IP 20, RJ45 IP 20, Cat.5 (ISO/IEC 11801), PUR, 0.5 mIE-C5ES8UG0005M40M40-G
Weidmuller 1166000005 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Approvals
- ROHS
- Conform
Cable Structure
- Arrangement of wire cores
- Twisted pair
- Colour sequence or wires - wire pairs
- white/blue - blue, white/orange - orange, white/green - green, white/brown - brown
- Complete shielding
- Shielding braid made from copper wiring
- Cross-section
- 4*2*AWG 26/7 - 4*2*0.128 mm²
- Insulation
- PE
- Insulation cross-section
- 0.98 mm
- Material sheath
- PUR
- Number of wires
- 8
- Sheath diameter, max.
- 6 mm
- Sheath diameter, min.
- 5.6 mm
- Sheathing colour
- green (RAL 6018)
- Shielding
- SF/UTP
- Strands
- 7
- Wire material
- Stranded tin-plated copper wire
- Wire pair shielding
- Aluminium foil
Classifications
- eClass 10.0
- 27-06-03-08
- eClass 9.0
- 27-06-03-08
- eClass 9.1
- 27-06-03-08
- ETIM 6.0
- EC002599
- ETIM 7.0
- EC002599
Dimensions And Weights
- Insulation cross-section
- 0.98 mm
- Length
- 0.5 m
- Length (inches)
- 0.02 inch
- Net weight
- 36 g
Electrical Properties
- PoE / PoE+
- conforming to IEEE 802.3at
Electrical Properties Of Cable
- Category
- Cat.5 (ISO/IEC 11801)
- Test voltage: wire-wire-shield
- 750 V DC, 1 min
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Mechanical And Material Properties Of Cable
- Abrasion resistance
- very good
- Halogen
- halogen-free, according to IEC 60754-2
- Min. bending radius, once only
- 5 x cable diameter
- Min. bending radius, repetitive
- 10 x cable diameter
- Resistance to oils
- EN 50305
- Resistance to spread of flame
- in accordance with IEC 60332-1
- Silicone-free
- Yes
Plug
- Connector left
- RJ45 IP 20
- Connector right
- RJ45 IP 20
Standards
- Connector standard
- IEC 60603-7-51
Temperatures
- Installation temperature
- -10 °C...60 °C
- Operating temperature
- -40 °C...85 °C
- Operating temperature, max.
- 85 °C
- Operating temperature, min.
- -40 °C
