Weidmuller 1165940110
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

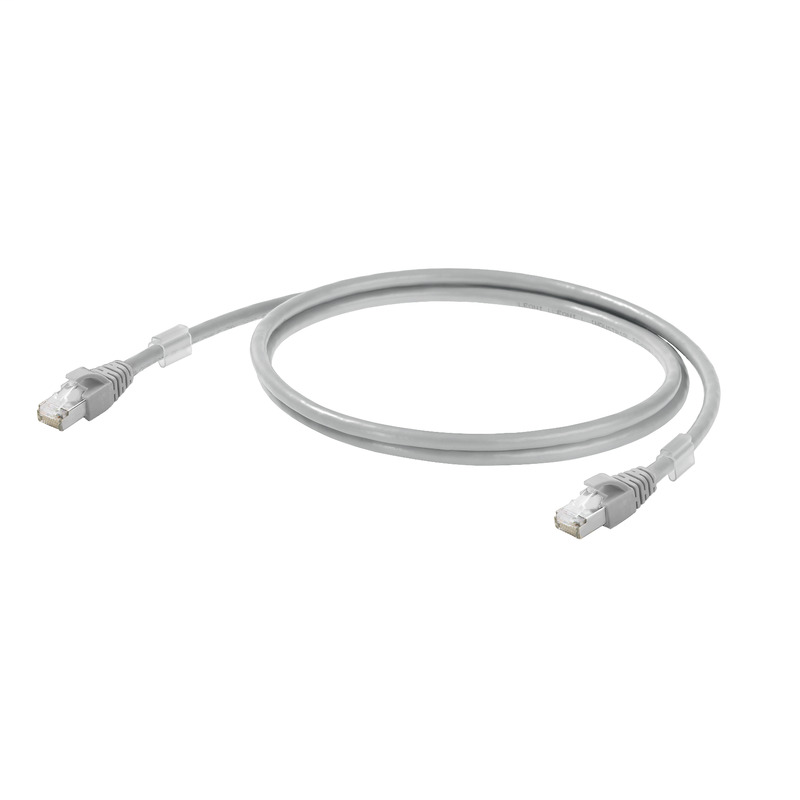

Patch cable, RJ45 IP 20, RJ45 IP 20, Cat.6A / Class EA (ISO/IEC 11801 2010), LSZH, 11 mIE-C6FP8LD0110M40M40-D
Weidmuller 1165940110 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Approvals
- Approvals
- CULUS
- ROHS
- Conform
- UL File Number Search
- E316369
Cable Structure
- Arrangement of wire cores
- Twisted pair
- Colour sequence or wires - wire pairs
- white - blue, white - orange, white - green, white - brown
- Complete shielding
- Shielding braid made from copper wiring
- Copper diameter
- 0.43 mm
- Cross-section
- 4*2*AWG 27/7 - 4*2*0.1 mm²
- Insulation
- PE
- Insulation cross-section
- 1.04 mm
- Material sheath
- LSZH
- Number of wires
- 8
- Overlap of shielding braid
- 60 %
- Sheath diameter, max.
- 5.9 mm
- Sheath diameter, min.
- 5.5 mm
- Shielding
- S/FTP
- Strands
- 7
Classifications
- eClass 10.0
- 27-06-03-08
- eClass 9.0
- 27-06-03-08
- eClass 9.1
- 27-06-03-08
- ETIM 6.0
- EC002599
- ETIM 7.0
- EC002599
Dimensions And Weights
- Insulation cross-section
- 1.04 mm
- Length
- 11 m
- Length (inches)
- 0.433 inch
- Net weight
- 410 g
Electrical Properties
- Current-carrying capacity at 50 °C
- 1 A
- Operating voltage
- 48 V AC / DC
- PoE / PoE+
- conforming to IEEE 802.3at
Electrical Properties Of Cable
- Capacity at 1 kHz
- 46 nF/km
- Category
- Cat.6A / Class EA (ISO/IEC 11801 2010)
- Characteristic impedance
- 100 ± 15 Ω at 1–100 MHz
- Coupling attenuation up to 1000 MHz
- 80 dB
- Coupling resistance at 10 MHz
- 5 mΩ/m
- Deviation
- 25 ns/100m
- Operating voltage
- 48 V AC / DC
- Operating voltage (UL rating)
- 30 V AC / 42.4 V DC
- Resistance differential
- 5 %
- Separating class according to EN 50174-2
- d
- Shield attenuation up to 1000 MHz
- 60 dB
- Speed
- 10 GBit/s
- Test voltage: wire-wire-shield
- 750 V DC, 1 min
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Mechanical And Material Properties Of Cable
- Colour
- grey
- Halogen
- halogen-free, according to IEC 60754-2
- Min. bending radius, once only
- 25 mm
- Min. bending radius, repetitive
- 50 mm
- Resistance to spread of flame
- in accordance with IEC 60332-1 / UL 1581 FT2
- Speed
- 10 GBit/s
Plug
- Connector left
- RJ45 IP 20
- Connector right
- RJ45 IP 20
Plug, Right
- Contact surface
- Au ≥ 0.8 µm
Standards
- Application-specific communication cable facilities
- ANSI / TIA / EIA-568-B.2-10, ISO / IEC 11801:2002, EN50173-1:2007
- Certificate no. (cULus)
- E316369
- Connector standard
- IEC 60603-7-51
Temperatures
- Installation temperature
- 0 °C...50 °C
- Operating temperature
- -20 °C...60 °C
- Operating temperature, max.
- 60 °C
- Operating temperature, min.
- -20 °C
- Storage temperature
- -20 °C...60 °C
- Storage temperature, max.
- 60 °C
- Storage temperature, min.
- -20 °C
